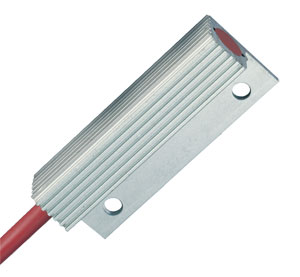

Small Semiconductor Enclosure Heater

RC016 Series

Small Semiconductor Heater | RC016 Series

Small Semiconductor Heater

15,75 RC1610000

CE
  • Temperature Limiting
  • Wide Voltage Range
  • Energy Saving
  • Compact

Description

These small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.

Specifications
Operating Voltage: 120 to 240 Vac/Vdc* (min 110V, max 265V)
Heating Element: PTC resistor, self regulating and temperature limiting
Heater Body: Aluminium, anodized
Mounting: Screw fixing (screws not included)
Fitting Position: Variable
Operating/Storage Temperature: -45 to 70°C
Protection Type/Protection Class: IP32/II (double insulated)
Approvals: VDE + UL File No. E150057
Note: Other voltages on request * Operating with voltages below 140 Vac/Vdc reduces heating performance by approx. 10%.
Heating Capacity*: 13 W
Inrush Current Max: 3.0 A
Surface Temperature (Approx.): 170°C
Connection: 2 x AWG 22 sheathed cable (silicone)
Weight (Approx.): 40 g

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
RC1610000
15,75
Availability: 3 weeks

Small PTC heater, 13W, 120 to 240 Vac/Vdc.
Quick Ship
RC1610001
17,50
Availability: 1 week

Small PTC heater, 13W, 12 to 36 Vac/Vdc.
All amounts shown in EUR
Note: Comes with complete operator’s manual.
