Junction Boxes - Wall Mount IP66 Enclosures for Electrical Components and Instruments - Sizes 225 x 300 to 225 x 915 mm

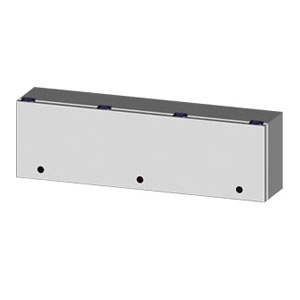

SCE-TJ Series Wall Mounted Junction Box

Wall Mount Electrical Enclosures | SCE-TJ Series Wall Mounted Junction Box

Wall Mount Electrical Enclosures

202,00 SCE-L9126ELJ

1 year warranty
  • 1.6 mm Thick Carbon or 304 Stainless Steel
  • Seams Continuously Welded and Ground Smooth
  • Oil-Resistant Gasket
  • Standoffs Provided for Mounting Optional Sub-Panels
  • Earth Stud on Door and Body
  • Doors Open 180ยบ with Removable Hinges
  • Black Mini Quarter Turn Latches
  • Latches are Opened or Closed with a Screwdriver
  • Padlocking or Keylocking Latches, and Tamper-Resistant Hardware is Available
  • Sealing Washers and Hole Plugs Included
  • Mounting Holes in Back of Enclosure
  • Mounting Feet Included

Description

Shown with polycarbonate window
Also available with 6.3 mm thick polycarbonate
viewing window, SCE-L9126ELJW.
The SCE-TJ Series is designed to house electrical controls, instruments and components used in an indoor or outdoor environment. They provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow).

SPECIFICATIONS
Finish: Ansi-61 grey powder coating inside and out
Industry Standards (IS2): For carbon steel
    NEMA: Type 4, 12 and Type 13
    UL Listed: Type 4 and 12
    CSA: Type 4 and 12
    IEC: 60529 IP66
Industry Standards (IS5): For 304 stainless steel
    NEMA: Type 4, 4X, 12 and Type 13
    UL Listed: Type 4, 4X and 12
    CSA: Type 4, 4X and 12
    IEC: 60529 IP66
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Gray Steel Through Junction Wall Mount Enclosures
Quick Ship
SCE-L9126ELJ
202.00
Availability: 1 week

Through junction enclosure, 9 H x 12 W x 6" D
Quick Ship
SCE-L9186ELJ
204.00
Availability: 3 weeks

Through junction enclosure, 9 H x 18 W x 6" D
Quick Ship
SCE-L9246ELJ
207.00
Availability: 3 weeks

Through junction enclosure, 9 H x 24 W x 6" D
Quick Ship
SCE-L9306ELJ
210.00
Availability: 3 weeks

Through junction enclosure, 9 H x 30 W x 6" D
Quick Ship
SCE-L9366ELJ
214.00
Availability: 3 weeks

Through junction enclosure, 9 H x 36 W x 6" D
Gray Steel Through Junction Wall Mount Enclosures with Viewing Window
Quick Ship
SCE-L9126ELJW
313.00
Availability: 3 weeks

Through junction enclosure with viewing window, 9 H x 12 W x 6" D
Quick Ship
SCE-L9186ELJW
318.00
Availability: 3 weeks

Through junction enclosure with viewing window, 9 H x 18 W x 6" D
Quick Ship
SCE-L9246ELJW
343.00
Availability: 3 weeks

Through junction enclosure with viewing window, 9 H x 24 W x 6" D
Quick Ship
SCE-L9306ELJW
348.00
Availability: 3 weeks

Through junction enclosure with viewing window, 9 H x 30 W x 6" D
Quick Ship
SCE-L9366ELJW
348.00
Availability: 3 weeks

Through junction enclosure with viewing window, 9 H x 36 W x 6" D
304 Stainless Steel Through Junction Wall Mount Enclosures
Quick Ship
SCE-L9126ELJSS
630.00
Availability: 3 weeks

304 SS through junction enclosure, 9 H x 12 W x 6" D
Quick Ship
SCE-L9186ELJSS
690.00
Availability: 3 weeks

304 SS through junction enclosure, 9 H x 18 W x 6" D
Quick Ship
SCE-L9246ELJSS
710.00
Availability: 3 weeks

304 SS through junction enclosure, 9 H x 24 W x 6" D
Quick Ship
SCE-L9306ELJSS
785.00
Availability: 3 weeks

304 SS through junction enclosure, 9 H x 30 W x 6" D
Quick Ship
SCE-L9366ELJSS
820.00
Availability: 3 weeks

304 SS through junction enclosure, 9 H x 36 W x 6" D
304 Stainless Steel Through Junction Wall Mount Enclosures with Viewing Window
Quick Ship
SCE-L9126ELJWSS
905.00
Availability: 3 weeks

304 SS through junction enclosure with viewing window, 9 H x 12 W x 6" D
Quick Ship
SCE-L9186ELJWSS
940.00
Availability: 3 weeks

305 SS through junction enclosure with viewing window, 9 H x 18 W x 6" D
Quick Ship
SCE-L9246ELJWSS
995.00
Availability: 3 weeks

306 SS through junction enclosure with viewing window, 9 H x 24 W x 6" D
Quick Ship
SCE-L9306ELJWSS
995.00
Availability: 3 weeks

307 SS through junction enclosure with viewing window, 9 H x 30 W x 6" D
Quick Ship
SCE-L9366ELJWSS
1,035.00
Availability: 3 weeks

308 SS through junction enclosure with viewing window, 9 H x 36 W x 6" D
Sub-Panels
Quick Ship
SCE-9P12L
20.50
Availability: 3 weeks

Sub-panel for 9x12 enclosure
Quick Ship
SCE-9P18L
28.50
Availability: 3 weeks

Sub-panel for 9x18 enclosure
Quick Ship
SCE-9P24L
31.50
Availability: 3 weeks

Sub-panel for 9x24 enclosure
Quick Ship
SCE-9P30L
33.50
Availability: 3 weeks

Sub-panel for 9x30 enclosure
Quick Ship
SCE-9P36L
36.50
Availability: 1 week

Sub-panel for 9x360 enclosure
Popular Accessories
Quick Ship
SCE-MINIQKLB
56.00
Availability: 1 week

Black Key-locking Level Knob, Mini 1/4 turn
Quick Ship
SCE-MINIQPL
9.20
Availability: 1 week

Padlocking Door Latch, Steel Mini 1/4 turn
Quick Ship
SCE-MINIQ6MS
39.00
Availability: 1 week

Black 6 mm square key - mini 1/4 turn
Quick Ship
DRTB-RAIL-3575-1
3.30
Availability: In Stock

35 X 7.5mm DIN rail, 1m long
Quick Ship
DRTB-RAIL-3575-1-20PK
Consult Sales
Availability:


35 X 7.5mm DIN rail, 1m long, 20 pcs. per package
Quick Ship
DRTB-RAIL-3575
5.90
Availability: 1 week

35 X 7.5mm DIN rail, 2m long
Quick Ship
DRTB-RAIL-SBKT-45D-6PK
6.60
Availability: In Stock

45° angle support brackets, 6 per package, screws and washers included.
Quick Ship
DRTB-RAIL-SBKT-1-6PK
5.70
Availability: In Stock

1" high support brackets, 6 per package, screws and washers included.
All amounts shown in EUR
Note: Comes complete with mounting feet, sealing washers, and hole plugs.
