Outdoor Electrical Enclosures in sizes from 100 mm² to 300 mm²

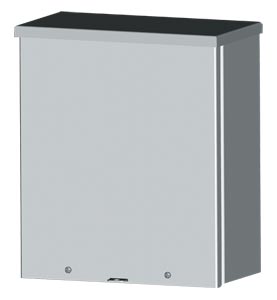

SCE-R Series Screw Cover Electrical Enclosure

Outdoor electrical cabinets | SCE-R Series Screw Cover Electrical Enclosure

Outdoor electrical cabinets

135,07 SCE-4R44

1 year warranty
  • 1.5 mm Thick Galvannealed Steel
  • Spot Weld Construction
  • Padlocking Provisions
  • Rain Cap
  • Mounting Hole In Back of Enclosure
  • Slip On Removable Screw
  • No Gasket
  • No Subpanel or Provisions
  • Earth Studs on Door and Body
  • Optional Mounting Straps Available

Description

Application
The SCE-R Series electrical enclosure is designed to house electrical controls instruments and components in an outdoor environment. Protects against rain, sleet and snow.

Finish
ANSI-61 grey powder coating inside and out over phosphatized surfaces.

Industry Standards
NEMA Type 3
UL Listed Type 3R
CSA Type 3R
IEC 60529 IP 32
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Outdoor Electrical Enclosure
SCE-4R44
135.07
Availability: 3 weeks

Type 3R screw cover, Height=4.00 Width=4.00 Depth=4.00
SCE-6R64
152.32
Availability: 3 weeks

Type 3R screw cover, Height=6.00 Width=6.00 Depth=4.00
SCE-6R66
158.13
Availability: 3 weeks

Type 3R screw cover, Height=6.00 Width=6.00 Depth=6.00
SCE-8R64
164.56
Availability: 3 weeks

Type 3R screw cover, Height=8.00 Width=6.00 Depth=4.00
SCE-8R66
185.88
Availability: 3 weeks

Type 3R screw cover, Height=8.00 Width=6.00 Depth=6.00
SCE-10R84
208.94
Availability: 3 weeks

Type 3R screw cover, Height=10.00 Width=8.00 Depth=4.00
SCE-10R86
221.67
Availability: 3 weeks

Type 3R screw cover, Height=10.00 Width=8.00 Depth=6.00
SCE-10R104
253.94
Availability: 3 weeks

Type 3R screw cover, Height=10.00 Width=10.00 Depth=4.00
SCE-10R106
293.19
Availability: 3 weeks

Type 3R screw cover, Height=10.00 Width=10.00 Depth=6.00
SCE-12R104
304.77
Availability: 3 weeks

Type 3R screw cover, Height=12.00 Width=10.00 Depth=4.00
SCE-12R106
330.10
Availability: 3 weeks

Type 3R screw cover, Height=12.00 Width=10.00 Depth=6.00
SCE-12R124
348.61
Availability: 3 weeks

Type 3R screw cover, Height=12.00 Width=12.00 Depth=4.00
SCE-12R126
369.43
Availability: 3 weeks

Type 3R screw cover, Height=12.00 Width=12.00 Depth=6.00
ACCESSORIES
POWER CORD-SE-M16
€17.27
Availability: 1 week

8' Power cord with M16 cable gland strain relief, 3x16 AWG, 250Vac max.
SCE-MST4
€49.37
Availability: 3 weeks

Mounting straps for 4" wide enclosure
SCE-MST6
€51.71
Availability: 3 weeks

Mounting straps for 6" wide enclosure
SCE-MST8
€54.16
Availability: 3 weeks

Mounting straps for 8" wide enclosure
SCE-MST10
€58.99
Availability: 3 weeks

Mounting straps for 10" wide enclosure
SCE-MST12
€61.66
Availability: 1 week

Mounting straps for 12" wide enclosure
All amounts shown in EUR
Ordering Example: (1) SCE-4R44 Type 3R screw cover encloser, €135.07
