Full-Bridge for Bending or Axial Tension, Transducer-Quality

SGT FB Series

Full-Bridge for Bending or Axial Tension strain gauge

^€179,31 SGT-4/1000-FB11

PLACE ORDER

Strain gauges, Conveniently Priced per Pack of 5
FAST IMMEDIATE DELIVERY ON LARGE ORDERS!
Stock to 1-Week!
Rugged, High Reliability
Flexible, Small Bending Radius
Broad Temperature Range - 75 to +200°C
Clear Alignment Marks
Affix with Cold or Hot Cure Adhesives

Description

Find how a Strain Gauge works on this link.

OMEGA™ transducer quality strain gages are available in a variety of patterns to cover most transducer design requirements. Their rugged construction, reliability and flexibility make them suitable for highly accurate static and dynamic transducers. The measuring grid is formed by specially formulated etching constantan foil, which is then completely sealed for long term reliability in a carrier medium composed of polyimide film.

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)

SGT-2/350-FB11

€172.86

Availability: 5 weeks

2.8 mm grid, 350 ohm, full bridge transducer quality strain gage

SGT-2/1000-FB11

€172.86

Availability: 5 weeks

2.8 mm grid, 1000 ohm, full bridge transducer quality strain gage

SGT-3G/350-FB11

€190.51

Availability: 5 weeks

2.5 mm grid, 350 ohm, full bridge transducer quality strain gage with square carrier

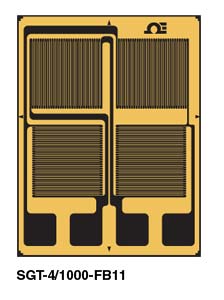

SGT-4/1000-FB11

€179.31

Availability: 5 weeks

4 mm grid, 1000 ohm, full bridge transducer quality strain gage

Encapsulated, Ribbon Leads, Matched to Aluminum (PRICE PER PKG OF 5)

SGT-2/350-FB13

€172.86

Availability: 5 weeks

2.8 mm grid, 350 ohm, full bridge transducer quality strain gage

SGT-2/1000-FB13

€182.58

Availability: 5 weeks

2.8 mm grid, 1000 ohm, full bridge transducer quality strain gage

SGT-3G/350-FB13

€182.58

Availability: 5 weeks

2.5 mm grid, 350 ohm, full bridge transducer quality strain gage with square carrier

SGT-4/1000-FB13

€179.31

Availability: 5 weeks

4 mm grid, 1000 ohm, full bridge transducer quality strain gage

Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)

SGT-2/350-FB41

€168.18

Availability: 5 weeks

2.8 mm grid, 350 ohm, full bridge transducer quality strain gage

SGT-2/1000-FB41

€159.23

Availability: 5 weeks

2.8 mm grid, 1000 ohm, full bridge transducer quality strain gage

SGT-3G/350-FB41

€168.18

Availability: 5 weeks

2.5 mm grid, 350 ohm, full bridge transducer quality strain gage with square carrier

SGT-4/1000-FB41

€182.58

Availability: 5 weeks

4 mm grid, 1000 ohm, full bridge transducer quality strain gage

Encapsulated, Solder Pads, Matched to Aluminum (PRICE PER PKG OF 5)

SGT-2/350-FB43

€168.18

Availability: 5 weeks

2.8 mm grid, 350 ohm, full bridge transducer quality strain gage

SGT-2/1000-FB43

€168.18

Availability: 5 weeks

2.8 mm grid, 1000 ohm, full bridge transducer quality strain gage

SGT-3G/350-FB43

€168.18

Availability: 5 weeks

2.5 mm grid, 350 ohm, full bridge transducer quality strain gage with square carrier

SGT-4/1000-FB43

€175.59

Availability: 1 week

4 mm grid, 1000 ohm, full bridge transducer quality strain gage

† All amounts shown in EUR
Note: Sold in packages of 5 strain gauges.
