Transducer Quality Strain Gauges for Shear or Torque Applications

SGT-SHEAR GAUGES

Strain Gauges for Shear or Torque Applications | SGT-SHEAR GAUGES

Strain Gauges for Shear or Torque Applications

See All Models Below

  • Conveniently Priced per Pack of 5
  • Shear Gauges for Torque or Shear Applications
  • Rugged, High Reliability
  • Flexible, Small Bending Radius
  • Broad Temperature Range
  • Clear Alignment Marks
  • Affix with Cold or Hot Cure Adhesives

Description

Find how a Strain Gauge works on this link.

OMEGA™ transducer quality strain gauges are available in a variety of patterns to cover most transducer design requirements. Their rugged construction, reliability and flexibility make them suitable for highly accurate static and dynamic transducers. The measuring grid is formed by specially formulated etching constantan foil, which is then completely sealed for long term reliability in a carrier medium composed of polyimide film.

For examples of actual strain gauge applications please see our Guide to strain gauge installations

For more in-depth application details and formulae see our guide on How to position strain gauges to monitor bending, axial, shear and torsional loads

We also have General information on strain gauge installation

If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Single Element Miniature/Small Shear Gauges (PRICE PER PKG OF 5)

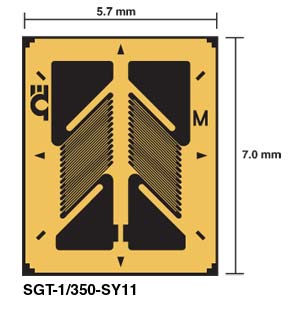

SGT-1/350-SY11
55.02
Availability: 1 week

1.4 mm grid, 350 ohms, single gauge, Ribbon Leads, TC Steel
SGT-2/350-SY11
55.02
Availability: 4 weeks

2.3 mm grid, 350 ohms, single gauge, Ribbon Leads, TC Steel
SGT-1/350-SY13
55.02
Availability: 4 weeks

1.4 mm grid, 350 ohms, single gauge, Ribbon Leads, TC Aluminium
SGT-2/350-SY13
55.02
Availability: 1 week

2.3 mm grid, 350 ohms, single gauge, Ribbon Leads, TC Aluminium
SGT-1/350-SY41
47.99
Availability: 4 weeks

1.4 mm grid, 350 ohms, single gauge, Solder Pads, TC Steel
SGT-2/350-SY41
47.99
Availability: 4 weeks

2.3 mm grid, 350 ohms, single gauge, Solder Pads, TC Steel
SGT-1/350-SY43
47.99
Availability: 8 weeks

1.4 mm grid, 350 ohms, single gauge, Solder Pads, TC Aluminium
SGT-2/350-SY43
47.99
Availability: 4 weeks

2.3 mm grid, 350 ohms, single gauge, Solder Pads, TC aluminium
Matched Pair Shear Gauges (PRICE PER PKG OF 5)
SGT-3D/350-SY11
66.12
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, Right hand Grid, Ribbon Leads, TC for Steel
SGT-3ES/350-SY11
57.35
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, Reverse "D" Grid, Ribbon Leads, TC for Steel
SGT-3D/350-SY13
57.35
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, Right hand Grid, Ribbon Leads, TC for Aluminium
SGT-3ES/350-SY13
57.35
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, Reverse "D" Grid, Ribbon Leads, TC for Aluminium
SGT-3D/350-SY41
61.58
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, Right hand Grid, Solder Pads, TC for Steel
SGT-3ES/350-SY41
61.58
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, Reverse "D" Grid, Solder Pads, TC for Steel
SGT-3D/350-SY43
61.58
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, Right hand Grid, Solder Pads, TC for Aluminium
SGT-3ES/350-SY43
50.33
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, Reverse "D" Grid, Solder Pads, TC for Aluminium
DUAL SHEAR 4-TERMINATIONS
Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
SGT-1D/350-SY11
75.57
Availability: 1 week

1.4 mm grid, 350 ohms, dual gauge, terminations on ends,
SGT-2DC/350-SY11
75.57
Availability: 1 week

1.9 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-2D/350M-SY11
57.35
Availability: 4 weeks

1.8 mm grid, 350 ohms, dual gauge, terminations on both ends,
SGT-2D/1000-SY11
66.71
Availability: 1 week

1.6 mm grid, 1000 ohms, dual gauge, all terminations on one edge.
SGT-3FS/350-SY11
75.44
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, terminations on one end
SGT-3D/1000-SY11
82.52
Availability: 1 week

3.3 mm grid, 1000 ohms, dual gauge, with terminations on both ends.
SGT-3GS/350-SY11
62.04
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, with terminations on both ends
Encapsulated, Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)
SGT-1D/350-SY13
57.35
Availability: 4 weeks

1.4 mm grid, 350 ohms, dual gauge, terminations on ends,
SGT-2DC/350-SY13
75.57
Availability: 1 week

1.9 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-2D/350M-SY13
57.35
Availability: 1 week

1.8 mm grid, 350 ohms, dual gauge, terminations on both ends,
SGT-2D/1000-SY13
66.71
Availability: 1 week

1.6 mm grid, 1000 ohms, dual gauge, all terminations on one edge.
SGT-3FS/350-SY13
62.04
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, terminations on one end
SGT-3D/1000-SY13
62.04
Availability: 1 week

3.3 mm grid, 1000 ohms, dual gauge, terminations on ends,
SGT-3GS/350-SY13
62.04
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, with terminations on both ends
Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
SGT-1D/350-SY41
71.05
Availability: 4 weeks

1.4 mm grid, 350 ohms, dual gauge, terminations on ends,
SGT-2DC/350-SY41
71.05
Availability: 1 week

1.9 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-2D/350M-SY41
71.05
Availability: 4 weeks

1.8 mm grid, 350 ohms, dual gauge, terminations on both ends,
SGT-2D/1000-SY41
75.51
Availability: 1 week

1.6 mm grid, 1000 ohms, dual gauge, all terminations on one edge.
SGT-3FS/350-SY41
70.90
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, terminations on one end
SGT-3D/1000-SY41
75.62
Availability: 3 weeks

3.3 mm grid, 1000 ohms, dual gauge, terminations on ends,
SGT-3GS/350-SY41
55.02
Availability: 3 weeks

3 mm grid, 350 ohms, dual gauge, with terminations on both ends
Encapsulated, Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)
SGT-1D/350-SY43
50.33
Availability: 4 weeks

1.4 mm grid, 350 ohms, dual gauge, terminations on ends,
SGT-2DC/350-SY43
50.44
Availability: 1 week

1.9 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-2D/350M-SY43
71.05
Availability: 4 weeks

1.8 mm grid, 350 ohms, dual gauge, terminations on both ends,
SGT-2D/1000-SY43
59.71
Availability: 1 week

1.6 mm grid, 1000 ohms, dual gauge, all terminations on one edge.
SGT-3FS/350-SY43
55.02
Availability: 4 weeks

3 mm grid, 350 ohms, dual gauge, terminations on one end
SGT-3D/1000-SY43
75.62
Availability: 1 week

3.3 mm grid, 1000 ohms, dual gauge, terminations on ends,
SGT-3GS/350-SY43
70.90
Availability: 1 week

3 mm grid, 350 ohms, dual gauge, with terminations on both ends
DUAL SHEAR 3-TERMINATIONS
Encapsulated, Ribbon Leads, Matched to Mild Steel (PRICE PER PKG OF 5)
SGT-2DH/350-SY11
66.71
Availability: 4 weeks

2.3 mm grid, 350 ohms, dual gauge, 2 termination on one end and a common on the other end.
SGT-2H/350-SY11
66.71
Availability: 1 week

2.3 mm grid, 350 ohms, dual in-line gauges, termination on each end and a common in the middle.
SGT-3JS/350-SY11
75.44
Availability: 1 week

3.0 mm grid, 350 ohms, dual gauge, 2 terminations on one end and a common in the other end.
SGT-3H/350K-SY11
85.95
Availability: 1 week

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-3HB/350K-SY11
74.91
Availability: 1 week

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
Encapsulated, Ribbon Leads, Matched to Aluminium (PRICE PER PKG OF 5)
SGT-2DH/350-SY13
66.71
Availability: 1 week

2.3 mm grid, 350 ohms, dual gauge, 2 termination on one end and a common on the other end.
SGT-2H/350-SY13
66.71
Availability: 1 week

2.3 mm grid, 350 ohms, dual in-line gauges, termination on each end and a common in the middle.
SGT-3JS/350-SY13
62.04
Availability: 4 weeks

3.0 mm grid, 350 ohms, dual gauge, 2 terminations on one end and a common in the other end.
SGT-3H/350K-SY13
74.91
Availability: 1 week

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-3HB/350K-SY13
85.95
Availability: 1 week

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
Encapsulated, Solder Pads, Matched to Mild Steel (PRICE PER PKG OF 5)
SGT-2DH/350-SY41
59.71
Availability: 1 week

2.3 mm grid, 350 ohms, dual gauge, 2 termination on one end and a common on the other end.
SGT-2H/350-SY41
59.71
Availability: 1 week

2.3 mm grid, 350 ohms, dual in-line gauges, termination on each end and a common in the middle.
SGT-3JS/350-SY41
70.90
Availability: 3 weeks

3.0 mm grid, 350 ohms, dual gauge, 2 terminations on one end and a common in the other end.
SGT-3H/350K-SY41
81.34
Availability: 3 weeks

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-3HB/350K-SY41
81.34
Availability: 4 weeks

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
Encapsulated, Solder Pads, Matched to Aluminium (PRICE PER PKG OF 5)
SGT-2DH/350-SY43
59.71
Availability: 4 weeks

2.3 mm grid, 350 ohms, dual gauge, 2 termination on one end and a common on the other end.
SGT-2H/350-SY43
59.71
Availability: 1 week

2.3 mm grid, 350 ohms, dual in-line gauges, termination on each end and a common in the middle.
SGT-3JS/350-SY43
55.02
Availability: 4 weeks

3.0 mm grid, 350 ohms, dual gauge, 2 terminations on one end and a common in the other end.
SGT-3H/350K-SY43
70.22
Availability: 4 weeks

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
SGT-3HB/350K-SY43
70.22
Availability: 4 weeks

3.2 mm grid, 350 ohms, dual gauge, all terminations on one edge.
All amounts shown in EUR
Note: Sold in packages of 5 strain gauges.
