Reaction Torque Sensor, Flange to Shaft Mount, Low Torque Range

TQ202

Reaction Torque Sensor, Flange to Shaft Mount | TQ202

Reaction Torque Sensor, Flange to Shaft Mount

1.174,29 TQ202-100

CE
  • Reaction torque sensor. All Stainless Steel Case for Long Term Reliability in Industrial Environments
  • High Accuracy
  • Shielded Cable for Precise Low Noise Measurements
  • Heavy Duty Mounting for Positive, Non-Slip Connection
Load Cells, Force Sensors and Torque Transducers - View related products

Description

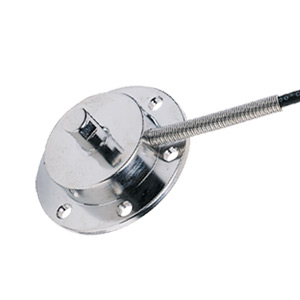

OMEGA’s TQ202 Series Reaction Torque Sensor is a small high accuracy flange or surface mount device designed for measuring reaction torque forces up to 250 in-lb. The shaft attachment has three equally spaced flat surfaces to assure non-slip mounting without the use of a key. The all stainless steel construction provides long life in industrial environments, and its heavy duty construction assures long term high accuracy measurements.

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5Ohms
Accuracy (Linearity, Hysteresis, and Repeatability Combined): ±0.2% FSO
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects: Zero: 0.005% FSO/°F Span: 0.005% Rdg/°F
Safe Overload:150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 5 ft (1.5 m) 4-conductor shielded PVC cable with Strain Relief
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
TQ202-25Z
1.252,00
Availability: 11 weeks

Flange to shaft mount reaction torque sensor with +/- 25 in-oz range
TQ202-30Z
1.252,00
Availability: 5 weeks

Flange to shaft mount reaction torque sensor with +/- 30 in-oz range
TQ202-100Z
1.174,29
Availability: 1 week

Flange to shaft mount reaction torque sensor with +/- 100 in-oz range
TQ202-120Z
1.117,00
Availability: 11 weeks

Flange to shaft mount reaction torque sensor with +/- 120 in-oz range
TQ202-150Z
1.117,00
Availability: 11 weeks

Flange to shaft mount reaction torque sensor with +/- 150 in-oz range
TQ202-25
1.117,00
Availability: 1 week

Flange to shaft mount reaction torque sensor with +/- 25 in-lb range
TQ202-50
1.117,00
Availability: 11 weeks

Flange to shaft mount reaction torque sensor with +/- 50 in-lb range
TQ202-100
1.174,29
Availability: 7 weeks

Flange to shaft mount reaction torque sensor with +/- 100 in-lb range
TQ202-250
1.117,00
Availability: 1 week

Flange to shaft mount reaction torque sensor with +/- 250 in-lb range
All amounts shown in EUR
