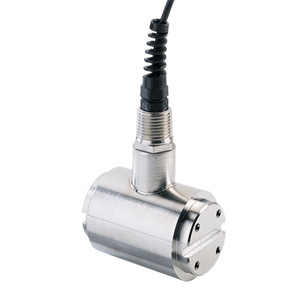

Reaction Torque Cells, Surface Key Mount

TQ401

Reaction Torque Cells, Surface Key Mount | TQ401

Reaction Torque Cells, Surface Key Mount

965,00 TQ401-30

CE
  • All Stainless Steel Case for Long Term Reliability in Industrial Environments
  • High Accuracy
  • Shielded Cable for Precise Low Noise Measurements
  • Heavy Duty Mounting for Positive, Non-Slip Connection
Load Cells, Force Sensors and Torque Transducers - View related products

Description

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.23% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp. Range: -54 to 107°C (-65 to 225°F)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 10 ft (3 m) 4-conductor color coded, shielded PVC cable with strain relief
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
TQ401-30
965,00
Availability: 1 week

Reaction torque sensor with surface key mount and +/- 30 ft-lb range
Quick Ship
TQ401-100
965,00
Availability: 1 week

Reaction torque sensor with surface key mount and +/- 100 ft-lb range
Quick Ship
TQ401-250
965,00
Availability: 12 weeks

Reaction torque sensor with surface key mount and +/- 250 ft-lb range
All amounts shown in EUR
