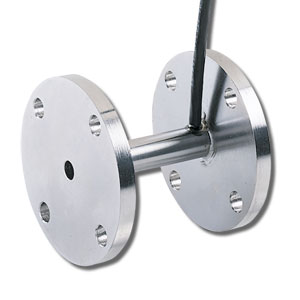

Reaction Torque Cell, Flange Mount, 0 to 45 N-m

TQM301 Series

Reaction Torque Cell, Flange Mount, 0 to 45 N-m | TQM301 Series

Reaction Torque Cell, Flange Mount, 0 to 45 N-m

See All Models Below

  • All Stainless Steel Case for Long Term Reliability in Industrial Environments
  • High Accuracy
  • Screened Cable for Precise Low Noise Measurements
  • Heavy Duty Mounting for Positive, Non-Slip Connection
Load Cells, Force Sensors and Torque Transducers - View related products

Description

SPECIFICATIONS
Output:
2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.2% FSO (linearity, hysteresis, and repeatability combined)
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects: Zero: ±0.009% FSO/°C Span: ±0.009% Rdg/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 1.2 m 4-core screened colour coded PVC cable
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
TQM301-45N Star
465.00
Availability: In Stock

Flange mount reaction torque cell with 0 to 45 Newton metre range
All amounts shown in EUR
