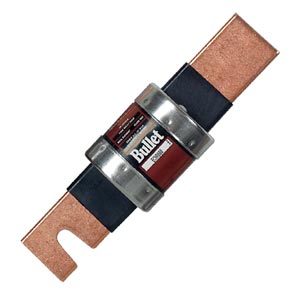

Dual Element Time-Delay Fuses Class Rk5 and Rk1

ECNR/ECSR/LENRK/LESRK Fuses

^€96,12 ECNR150

True Dual - Element Spring - Trigger Construction Allows Sizing of 125% FLA for Motor Backup Protection
Superior Overload and Cycling Capabilities
Extremely Current Limiting; Provides Superior Short Circuit Component Protection

Description

RK5 Dual Element Time-Delay Fuses
These fuses are recommended for AC power distribution system mains, feeders and branch circuits having inductive loads (motors, transformers) or non-inductive loads (lighting, heating) where the available short-circuit current does not exceed 200,000 RMS symmetrical amperes. These "dual element, time-delay" fuses have minimum industry standard time-delay of 10 seconds at 5 times the fuse rating (8 sec. minimum for 250V, 30A and less). The timedelay characteristics of these fuses typically allows them to be sized closer to the running ampacity of inductive loads to reduce cost and provide improved overcurrent protection. These fuses will override normal equipment current surges to reduce unnecessary fuse openings. They are the most popular fuses used in the industry and the most economical for most applications, especially motors and transformers. They have moderate current limitation.

CLASS R FUSES WILL FIT CLASS H, K AND R FUSE CLIPS. CLASS R FUSE CLIPS WILL ONLY ACCEPT CLASS R FUSES. FUSES RATED 600 VOLTS AC OR LESS MAY BE APPLIED AT ANY LOWER VOLTAGE.

RK1 Dual Element Time-Delay Fuses The application recommended for these fuses is exactly the same as for the Edison ECNR/ECSR fuses except for the advantages of greater current limitation. The Edison LENRK/LESRK fuses have up to 40% more current limitation and up to 350% more Amps-Squared-Second (I2t) limitation under fault conditions than Edison ECNR/ECSR fuses to reduce potential for damage. In addition, LENRK/LESRK fuses allow better selectivity for electrical power system designers and better short circuit protection for breakers having inadequate interrupting ratings. ECNR/ECSR and LENRK/LESRK fuse lines are physically interchangeable (and electrically interchangeable per U.L. equipment listing conditions) and are recommended as a practical, economical way to upgrade systems for many situations.

SPECIFICATIONS
Voltage Rating:
    ECNR and LENRK: 250 Vac
    ECSR and LESRK: 600 Vac
Ampere Rating:
    ECNR and ECSR: 0.1 to 600 A
    LENRK and LESRK: 0.2 to 600 A
Interrupting Rating: 200,000 RMS symmetrical amps
LENRK and LESRK Self-Certified Interrupting Rating: 300,000 RMS symmetrical amps
Current Limiting:
ECNR and ECSR: RK5 fuse
LENRK and LESRK: RK1 fuse
Agency Approvals: UL Listed, Class RK5 and RK1, Guide JDDZ, File E162363; CSA Certified HRCI-R per C22.2, No. 248.12
Self-Certified DC Ratings:
    Voltage Rating: ECNR (0.1 to 600) 125 Vdc; ECSR (0.1 to 600) 300 Vdc; LENRK (0.2 to 600) 125 Vdc; LESRK (0.25 to 30) 200 Vdc; (35 to 600) 300 Vdc
Interrupting Rating:
    ECNR and ECSR: 20,000 amperes DC
    LENRK and LESRK: 20,000 amperes DC

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

ECNR150

€96,12

Availability: 3 weeks

150 Amp Rating

ECNR200

€96,12

Availability: 3 weeks

200 Amp Rating

ECSR125

€149,57

Availability: 3 weeks

125 Amp Rating

ECSR150

€149,57

Availability: 3 weeks

150 Amp Rating

ECSR200

€149,57

Availability: 3 weeks

200 Amp Rating

LESRK200

€221,78

Availability: 3 weeks

200 Amp Rating

ECNR70

€42,56

Availability: 5 weeks

70 Amp Rating

ECNR80

€42,56

Availability: 5 weeks

80 Amp Rating

ECNR90

€42,56

Availability: 5 weeks

90 Amp Rating

ECNR100

€42,56

Availability: 5 weeks

100 Amp Rating

ECSR70

€81,35

Availability: 5 weeks

70 Amp Rating

ECSR80

€81,35

Availability: 5 weeks

80 Amp Rating

ECSR90

€81,35

Availability: 5 weeks

90 Amp Rating

ECSR100

€81,35

Availability: 5 weeks

100 Amp Rating

LESRK100

€120,14

Availability: 5 weeks

100 Amp Rating

ECNR1

€15,33

Availability: 1 week

1 Amp Rating

ECNR2

€13,89

Availability: 5 weeks

2 Amp Rating

ECNR3

€15,28

Availability: 5 weeks

3 Amp Rating

ECNR5

€15,28

Availability: 5 weeks

5 Amp Rating

ECNR8

€15,28

Availability: 5 weeks

8Amp Rating

ECNR10

€12,97

Availability: 1 week

10 Amp Rating

ECNR15

€37,87

Availability: 1 week

15 Amp Rating

ECNR20

€10,18

Availability: 1 week

20 Amp Rating

ECNR25

€10,18

Availability: 5 weeks

25 Amp Rating

ECNR30

€10,18

Availability: 5 weeks

30 Amp Rating

ECNR35

€18,90

Availability: 5 weeks

35 Amp Rating

ECNR40

€18,90

Availability: 5 weeks

40 Amp Rating

ECNR45

€18,90

Availability: 5 weeks

45 Amp Rating

ECNR50

€18,90

Availability: 5 weeks

50 Amp Rating

ECNR60

€18,90

Availability: 5 weeks

60 Amp Rating

ECSR3

€25,91

Availability: 5 weeks

3 Amp Rating

ECSR4

€25,91

Availability: 5 weeks

4 Amp Rating

ECSR5

€25,91

Availability: 5 weeks

5 Amp Rating

ECSR6

€25,91

Availability: 5 weeks

6 Amp Rating

ECSR6.25

€27,77

Availability: 5 weeks

6.25 Amp Rating

ECSR7

€27,77

Availability: 5 weeks

7 Amp Rating

ECSR8

€25,91

Availability: 5 weeks

8 Amp Rating

ECSR10

€25,91

Availability: 5 weeks

10 Amp Rating

ECSR12

€25,91

Availability: 5 weeks

12 Amp Rating

ECSR15

€23,14

Availability: 5 weeks

15 Amp Rating

ECSR17.5

€23,14

Availability: 5 weeks

17.5 Amp Rating

ECSR20

€23,14

Availability: 5 weeks

20 Amp Rating

ECSR25

€23,14

Availability: 5 weeks

25 Amp Rating

ECSR30

€23,14

Availability: 1 week

30 Amp Rating

ECSR35

€39,77

Availability: 5 weeks

35 Amp Rating

ECSR40

€39,77

Availability: 5 weeks

40 Amp Rating

ECSR45

€39,77

Availability: 5 weeks

45 Amp Rating

ECSR50

€39,77

Availability: 5 weeks

50 Amp Rating

ECSR60

€39,77

Availability: 1 week

60 Amp Rating

LENRK10

€18,99

Availability: 5 weeks

10 Amp Rating

LENRK15

€15,28

Availability: 5 weeks

15 Amp Rating

LENRK20

€15,28

Availability: 5 weeks

20 Amp Rating

LENRK30

€15,28

Availability: 5 weeks

30 Amp Rating

LENRK60

€28,20

Availability: 5 weeks

60 Amp Rating

LESRK5

€37,93

Availability: 5 weeks

5 Amp Rating

LESRK10

€37,93

Availability: 5 weeks

10 Amp Rating

LESRK15

€33,67

Availability: 5 weeks

15 Amp Rating

LESRK20

€33,67

Availability: 5 weeks

20 Amp Rating

LESRK30

€33,67

Availability: 5 weeks

30 Amp Rating

LESRK40

€58,26

Availability: 5 weeks

40 Amp Rating

LESRK50

€58,26

Availability: 5 weeks

50 Amp Rating

LESRK60

€58,26

Availability: 5 weeks

60 Amp Rating

† All amounts shown in EUR
Note: Comes with instruction sheet.
Ordering Example: (1) ECNR1 1 amp fuse, €15,33 plus (1) LENRK10 10 amp fuse, €18,99, €15,33 + 18,99 = €34,32
