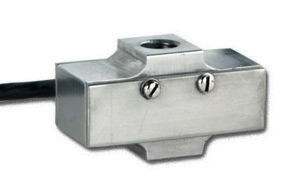

Universal link load cell, ±5 kgF to ±500 kgF

LCM703 Series

in-line load cell

^€537,04 LCM703-100

PLACE ORDER

5-Point Calibration Certificate Included
Low Profile
High Accuracy
Rugged Industrial Design

Load Cells, Force Sensors and Torque Transducers - View related products

Description

Click on this link if you need more information about load cell.

The LCM703 Series is an economical universal (Tension/Compression) load cell with an extremely low profile. Ranges above 50 kg are Stainless Steel; 50 kg and below are Aluminium. The LCM703’s low profile, economical price and rugged design make it suitable for many industrial applications including robotics, automated weighing systems or as part of a batch-process control system.

The LCM703 series is also available in imperial configurations, with ranges from 0-10 to 0-1000 lb and imperial threads. Please see the LC703 for complete details, or contact our Technical Sales department for more information..

SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity: 5 to 50 kg ±0.15% 75 to 500 kg ±0.10%
Hysteresis: 5 to 50 kg ±0.15% 75 to 500 kg ±0.10%
Repeatability: ±0.05%
Zero Balance: ±1.0% FSO
Operating Temp Range: -40 to 82°C (-40 to 180°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Zero: ±0.009% FSO/°C
Span: ±0.009% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Output Resistance: 350 ±10 Ohms
Input Resistance: 360 Ohms minimum
Full Scale Deflection: .076 mm nominal
Construction: <75 kg Aluminium
>50 kg 17-4 PH Stainless Steel
Electrical: 3.6 m (12 ft) shielded 4-conductor cable

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.

Qty

Description

LCM703-5

€537,04

Availability: 1 week

Miniature universal load cell with ±5 kgF range

LCM703-10

€537,04

Availability: 11 weeks

Miniature universal load cell with ±10 kgF range

LCM703-25

€540,91

Availability: 1 week

Miniature universal load cell with ±25 kgF range

LCM703-50

€566,67

Availability: In Stock

Miniature universal load cell with ±50 kgF range

LCM703-75

€537,04

Availability: 7 weeks

Miniature universal load cell with ±75 kgF range

LCM703-100

€537,04

Availability: 1 week

Miniature universal load cell with ±100 kgF range

LCM703-150

€537,04

Availability: 4 weeks

Miniature universal load cell with ±150 kgF range

LCM703-250

€719,69

Availability: 4 weeks

Miniature universal load cell with ±250 kgF range

LCM703-500

€714,55

Availability: 4 weeks

Miniature universal load cell with ±500 kgF range

Accessories

DP25B-S-230

€487.61

Availability: 7 weeks

4-Digit strain meter with Excitation, 230vac Powered

DP41-S-230

€1,057.20

Availability: 6 weeks

6-Digit strain meter with Excitation, 230 VAC Powered

TXDIN1600S

€207.78

Availability: In Stock

DIN Rail Mounted Signal Conditioner with excitation

† All amounts shown in EUR
Note: Supplied with a 5-Point NIST traceable calibration certificate.
Ordering Example: (1) LCM703-100 Miniature universal load cell with ±100 kgF range, €537.04
