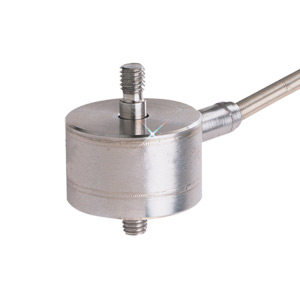

Miniature Tension & Compression Stud-Mount Load Cells,
±10 to ± 5000 Newtons

LCMFD Series

^€1.280,09 LCMFD-10N

PLACE ORDER

5-Point Calibration Certificate (in Tension) Included
High Accuracy
Miniature Size
Tension or Compression
All Stainless Steel Construction
Available Ranges From ±10 to ±5000 Newtons

Load Cells, Force Sensors and Torque Transducers - View related products

Description

Find how a load cell.works on this link.

Small in size and capable of providing highly accurate readings, the LCMFD Series load cells are precision subminiature load cells for industrial applications requiring a small size and high accuracy. They are all stainless steel, measure both tension and compression loads and have male thread studs for load attachment. The exclusive internal design provides superior long term stability and minimises the effects of small off-axis loads.

The LCMFD is also available in standard configurations, with 0-2.2 to 0-1000 lb ranges and standard threads. Please see the LCFD for complete details, or contact our Sales department for more information.

SPECIFICATIONS
Excitation:
   ≤10 lb/50 N: 5 Vdc
   ≥25 lb/100 N: 10 Vdc
Output:
   2.2 lb/10 N: 1.5 mV/V (nom)
   ≥5 lb/20 N: 2 mV/V (nom)
Accuracy (Linearity and Hysteresis Combined):
   ≤100 lb/500 N: ±0.15% FSO
   ≥250 lb/1000 N: ±0.20% FSO
Repeatability:
   ≤2.2 lb: ± 0.15% FSO
   ≥5 lb/10 N: 0.20% FSO
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Span: ±0.009% FSO/°C
   Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
Construction: Stainless steel
Electrical Connection: 1.5 m (5') 4-conductor, shielded cable
   ≤10 lb/50 N: SS overbraided PTFE with temperature compensation board
Protection Class: IP65

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.

Qty

Description

LCMFD-10N

€1.280,09

Availability: 5 weeks

Miniature tension compression load cell with ±10 Newton range

LCMFD-20N

€1.270,95

Availability: 1 week

Miniature tension compression load cell with ±20 Newton range

LCMFD-50N

€1.270,95

Availability: 1 week

Miniature tension compression load cell with ±50 Newton range

LCMFD-100N

€1.270,95

Availability: 1 week

Miniature tension compression load cell with ±100 Newton range

LCMFD-200N

€1.270,95

Availability: 1 week

Miniature tension compression load cell with ±200 Newton range

LCMFD-500N

€1.270,95

Availability: 1 week

Miniature tension compression load cell with ±500 Newton range

LCMFD-1KN

€1.270,95

Availability: 11 weeks

Miniature tension compression load cell with ±1000 Newton range

LCMFD-2KN

€1.270,95

Availability: 11 weeks

Miniature tension compression load cell with ±2000 Newton range

LCMFD-5KN

€1.270,95

Availability: 11 weeks

Miniature tension compression load cell with ±5000 Newton range

Compatible Meters & Transmitters

DP25B-S-230

€487.61

Availability: 7 weeks

4-Digit Strain meter with excitation, 230vac Powered

DP41-S-230

€1,057.20

Availability: 6 weeks

6-Digit Strain meter with excitation, 230vac Powered

TXDIN1600S

€207.78

Availability: In Stock

DIN Rail Mounted Signal Conditioner/Transmitter with Excitation & Remote Tare Input. 10-48 Vdc powered

† All amounts shown in EUR
Note: LCMFD Series comes with a 5-Point NIST traceable calibration certificate.
Ordering Example: (1) LCMFD-100N Miniature tension/compression load cell with ±100 Newton range, €1,270.95
