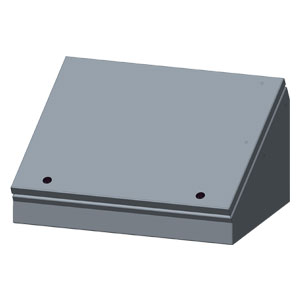

IP66 Operator Control Boxes with Sloping Front Panel

SCE-ELJ Series Operator Consolets

Sloping front enclosures for control box applications

^€361,53 SCE-8C16ELJ

PLACE ORDER

1.6 mm thick Carbon Steel
Oil-Resistant Gasket
Surface Inclined 30° or 60°
Standoffs Provided for Mounting Optional Sub-Panels
Polyamide Hinges Easily Removed for Machining
Door Opens 180°
Provisions for Cable Door Stops on SCE-12C, SCE16C and SCE-20C Models
Black Mini Quarter Turn Latches
Latches are Opened or Closed with a Screwdriver
Sealing Washers and Hole Plugs Included
Earth Studs on Door and Body
Mounting Holes in Bottom

Description

Designed to house electrical and electronic controls, instruments, and components. The SCE-ELJ provides protection from dust, dirt, oil and water. These consolets can be used indoors or outdoors and can be mounted on either of two sides to give a control surface inclined 30° or 60°. They can also be mounted on benches, machines, or pedestals. Finished in ANSI-61 grey powder coating inside and out, optional sub-panels are powder coated white.

Industry Standards : IS2
NEMA Type 4, 12 and 13
UL Listed Type 4 and 12
CSA Type 4 and 12
IEC 60529 IP 66

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Optional Sub-panel Sold Separately

SCE-8C8ELJ

€283.47

Availability: 3 weeks

Operator interface box, 203 H x 203 mm W sloped panel

SCE-8P8C

€17.20

Availability: 3 weeks

Sub-panel for SCE-8C8ELJ, 152 x 171 mm

SCE-8C12ELJ

€286.59

Availability: 3 weeks

Operator interface box, 203 H x 305 mm W sloped panel

SCE-8P12C

€26.05

Availability: 3 weeks

Sub-panel for SCE-8C12ELJ, 152 x 273 mm

SCE-8C16ELJ

€361.53

Availability: 3 weeks

Operator interface box, 203 H x 406 mm W sloped panel

SCE-8P16C

€35.93

Availability: 1 week

Sub-panel for SCE-8C16ELJ, 152 x 375 mm

SCE-8C20ELJ

€365.34

Availability: 3 weeks

Operator interface box, 203 H x 508 mm W sloped panel

SCE-8P20C

€43.06

Availability: 3 weeks

Sub-panel for SCE-8C20ELJ, 152 x 476 mm

SCE-12C12ELJ

€328.33

Availability: 5 weeks

Operator interface box, 305 H x 305 mm W sloped panel

SCE-12P12C

€39.11

Availability: 3 weeks

Sub-panel for SCE-12C12ELJ, 240 x 273 mm

SCE-12C16ELJ

€366.84

Availability: 5 weeks

Operator interface box, 305 H x 406 mm W sloped panel

SCE-12P16C

€51.54

Availability: 5 weeks

Sub-panel for SCE-12C16ELJ, 240 x 375 mm

SCE-12C20ELJ

€427.54

Availability: 5 weeks

Operator interface box, 305 H x 508 mm W sloped panel

SCE-12P20C

€75.10

Availability: 3 weeks

Sub-panel for SCE-12C20ELJ, 240 x 476 mm

SCE-12C24ELJ

Consult Sales

Availability:

Operator interface box, 305 H x 610 mm W sloped panel

SCE-12P24C

€86.35

Availability: 3 weeks

Sub-panel for SCE-12C24ELJ, 240 x 578 mm

SCE-16C16ELJ

€411.27

Availability: 5 weeks

Operator interface box, 406 H x 406 mm W sloped panel

SCE-16P14

€54.67

Availability: 5 weeks

Sub-panel for SCE-16C16ELJ, 375 x 327 mm

SCE-16C20ELJ

€461.76

Availability: 3 weeks

Operator interface box, 406 H x 508 mm W sloped panel

SCE-16P20C

€81.63

Availability: 5 weeks

Sub-panel for SCE-16C20ELJ, 327 x 476 mm

SCE-16C24ELJ

€506.74

Availability: 5 weeks

Operator interface box, 406 H x 610 mm W sloped panel

SCE-16P24C

€116.93

Availability: 5 weeks

Sub-panel for SCE-16C24ELJ, 327 x 578 mm

SCE-20C20ELJ

€531.28

Availability: 3 weeks

Operator interface box, 508 H x 508 mm W sloped pane

SCE-20P20C

€111.38

Availability: 3 weeks

Sub-panel for SCE-20C20ELJ, 416 x 476 mm

SCE-20C24ELJ

€626.63

Availability: 3 weeks

Operator interface box, 508 H x 610 mm W sloped panel

SCE-20P24C

€125.02

Availability: 3 weeks

Sub-panel for SCE-20C24ELJ, 416 x 578 mm

Accessories

SCE-CBL15

€51.41

Availability: 5 weeks

380 mm door stop cable, 135° for SCE-12C & SCE-16C consoles

SCE-CBL20

€56.11

Availability: 3 weeks

500 mm door stop cable, 135° for SCE-20C consolets

SCE-MINIQPL

€25.00

Availability: 1 week

Pad locking latch cover (quantity 1)

SCE-MINIQKLB

€146.54

Availability: 1 week

Black key locking lever knob

Pedestal Base and Column Accessories

SCE-18SBASE

€290.40

Availability: 3 weeks

Pedestal Base 457 x 457 x 25 mm

SCE-24SBASE

€616.87

Availability: 3 weeks

Pedestal Base 610 x 610 x 25 mm

SCE-44CCOL

€449.30

Availability: 3 weeks

Straight Column 100 x 100 x 890 mm

SCE-66CCOL

€756.29

Availability: 3 weeks

Straight Column 150 x 150 x 890 mm

† All amounts shown in EUR
Note: * Sub-panels sold separately.
