- Discontinued Printing Handheld Thermometer

HH1304P

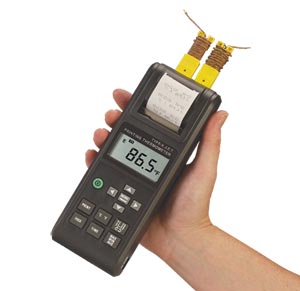

Printing Handheld Thermometer

See All Models Below

PLACE ORDER

Accepts J, K, T and E Thermocouple Inputs
Built-In Thermal Printer for Text and Printout
High Accuracy
Dual Input Features Min/Max and Differential Measurements
0.1 Resolution in °F/°C Over Full Range
Programmable Time Interval Setting
Hi/Lo Alarm Settings
Externally Powered Alarm Driver Outputs
Real-Time Clock
Low Battery Indicator
Optional Power Supply

Description

OMEGA’s compact and affordable HH1304P is ideal for applications requiring display and printing of temperature measurements. Dual input features min/max, hi/lo audible alarms (with externally powered alarm driver signals) and differential measurements. This 2-channel unit accepts Type J, K, T or E thermocouple inputs, has a high accuracy and 0.1° resolution. A built-in thermal printer makes hard copies of the temperature measurements, which can be taken at selected intervals. Parameters printed are time, date, temperature, and channel number. Battery powered or optional AC adaptor.

SPECIFICATIONS
Environment Conditions: Altitude up to 2000 m (6562') indoor use only
Relatively Humidity: 90% max
Operation Temperature: 0 to 50°C (32 to 122°F)
Display:4½ digit LCD
Sampling Rate: 1 reading per second
Power Requirement: Six 1.5V "AAA" alkaline batteries (included) or optional 9 AC adaptor, (9 Vdc, 500 mA minimum)
Battery Life (Typical): Approx 30 hrs (interval printing = 60 minutes, excluding beeper) 70 hours (without printing and beeper)
Input Protection: 60 Vdc/24Vrtns
Operating Temperature and Humidity: 0 to 50°C (32 to 122°F) below 90% RH
Storage Temperature and Humidity: -10 to 60°C (14 to 140°F) below 70% RH
Dimensions: 193 L x 74 W x 37 mm H (7.60 x 2.91 x 1.46")
Weight: Approx 365 g (13 oz) with batteries and thermo-paper
Printer: Thermo-printing type with 16 characters per line using 38 mm width plain thermal paper

Accuracy at 23°C, Below 80% RH:
    Type K: ±(0.01% rdg + 0.5°C) 0~982°C; ±(0.05% rdg + 0.5°C) 982~1333°C; ±(0.01% rdg + 0.9°F) 32~1800°F; ±(0.05% rdg + 0.9°F) 1800~2431°F
    Type J: ±(0.01% rdg + 0.5°C) 0~760°C; ±(0.01% rdg + 0.9°F) 32~1400°F
    Type E: ±(0.01% rdg + 0.5°C) 0~703°C; ±(0.01% rdg + 0.9°F) 32~1297°F
    Type T: ±(0.01% rdg + 0.5°C) 0~400°C; ±(0.01% rdg + 0.9°F) 32~752°F
    Type K/J/E/T: ±(0.5% rdg + 0.7°C) -200~0°C; ±(0.5% rdg + 1.4°F) -328~32°F
    Type K/J/E/T: ±(0.5% rdg + 1.0°C)-200~0°C/ -328~32°C
Resolution: 0.1°C/0.1°F
Measurement Range:
    Type K: -200~1333°C (-328~2431°F)
    Type J: -200~760°C (-328~1400°F)
    Type E: -200~703°C (-328~1297°F)
    Type T: -200~400°C (-328~752°F)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

HH1304P

Consult Sales

Availability:

Printing handheld thermometer

Field-Installable Accessories

HH1300-RP

Consult Sales

Availability:

Thermal paper, package of 2

HH1304P-ADAPTOR

€43.45

Availability: 1 week

AC adaptor

† All amounts shown in EUR
Note: Comes complete with 2 beaded wire Type K thermocouples (1 per input), alarm output cable, carry case, 6 "AAA" alkaline batteries, two rolls of thermal paper and operator's manual.
