Air Line Filter/ Pressure Regulators for Pneumatic Control

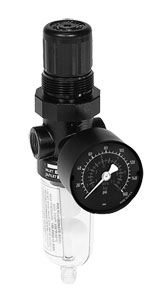

B07 Inline Filter/Regulators for Compressed Air

Filter Regulators | B07  Inline Filter/Regulators for Compressed Air

Filter Regulators

52,00 B07-201-M1KA

1 year warranty
  • Full Flow Gauge Ports
  • Excellent Flow and Regulation Characteristics
  • 5 Micron Filter Element
  • 1/4" PTF Supply & Gauge Ports
  • Maximum Pressure 7 bar (125 psig)
  • Transparent Polycarbonate Bowl

Description

General purpose air filter/pressure regulators are designed for in-line use as a single regulating control filtering source for compressed air. These air regulator/filters are full flow ported for excellent flow and regulation characteristics for pneumatic equipment. They are availanle in ¼" PTF threads, a transparent bowl, relieving diaphragm, gauge, automatic or manual drain and a 0.3 to 8.6 bar (5 to 125 psig) pressure adjustment range. They are suitable for a wide range of pneumatic tools and components and an excellent point of use filter/regulator. These units can be panel mounted with a 30 mm (1.19") diameter mounting hole or can be used with the optional bracket and panel nut. Reducer bushings are also available to use with 1/8" NPT threads.


SPECIFICATIONS
Operating Temperature*: -30 to 50°C (-22 to 122°F)
Maximum Pressure: 8.6 bar (125 psig)
Materials:
Body: Zinc
Bonnet: Acetal
Bowl: Transparent Polycarbonate
Valve Seat: Acetal
Element :
    B07: Sintered polypropylene
    B39: Synthetic fiber and polyurethane foam
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
B07-201-M1AA
64,00
Availability: 5 weeks

¼" NPT Port , 1-10 psig, manual drain, no gauge
Quick Ship
B07-201-M1KA
52,00
Availability: 5 weeks

¼" NPT Port , 5-100 psig, manual drain
Quick Ship
B07-202-M1KA
64,00
Availability: 5 weeks

B07-201-M1KA with 0-100 PSI (7 BAR) gauge
Quick Ship
B07-201-M1LA
64,00
Availability: 7 weeks

¼" NPT Port , 5-125 psig, manual drain
Quick Ship
B07-202-A1KA
Consult Sales
Availability:


¼" NPT Port , 5-100 psig with gauge, automatic drain
Quick Ship
L07-200-MPAA
Consult Sales
Availability:


Mocro-Fog lubricator, 0.5 scfm @ 90 psig, 1/4 NPT ports.
Accessories
Quick Ship
OM-AIR-18-025-003
€8.90
Availability: 1 week

Mounting bracket and plastic panel nut
Quick Ship
OM-AIR-3646-53
Consult Sales
Availability:


Replacement bowl with manual drain and O-ring
Quick Ship
OM-AIR-3646-51
Consult Sales
Availability:


Replacement bowl with automatic drain and O-ring
Quick Ship
OM-AIR-3820-02
Consult Sales
Availability:


Service kit including 5 µm filter element
Quick Ship
OM-AIR-5726-04
Consult Sales
Availability:


5 µm replacement filter element
Quick Ship
OM-AIR-18-013-203
Consult Sales
Availability:


Gage, (18" NPT), 1.5" diameter, 0 to 100 psi
Quick Ship
OM-AIR-18-013-212
Consult Sales
Availability:


Gage, (18" NPT), 1.5" diameter, 0 to 160 psi
Air Line Fittings and Tubing
Quick Ship
OM-AIR-C24250428-5PK
6.50
Availability: 1 week

Male straight adaptor, 1/4 NPT for 1/4" OD tubing
Quick Ship
OM-AIR-C24250228-5PK
Consult Sales
Availability:


Male straight adaptor, 1/4 NPT for 5/32" OD tubing
Quick Ship
OM-AIR-C24470428-5PK
Consult Sales
Availability:


90° Swivel elbow adaptor,1/4 NPT for 1/4" OD tubing
Quick Ship
OM-AIR-C24470228-5PK
Consult Sales
Availability:


90° Swivel elbow adaptor, 1/4 NPT for 5/32" OD tubing
Quick Ship
AU-B79870143
€3.00
Availability: 1 week

Male hex nipple, 1/4NPT
Quick Ship
TYUTH95-532332-100
€17.00
Availability: 5 weeks

Air line tubing, 5/32" OD, 100ft., clear
Quick Ship
TYUTH95-14160-100
38.00
Availability: 1 week

Air line tubing, 1/4" OD, 100ft. , clear
All amounts shown in EUR
Ordering Example:

  (1) OM-AIR-18-025-003 Mounting bracket with panel nut, €8.90  plus (1) OM-AIR-18-025-003 Mounting bracket with panel nut, €8.90, €8.90 + 8.90 = €17.80
