Norgren Excelon® Filter/Regulator- Lubricator Combination Units for Pneumatic Applications

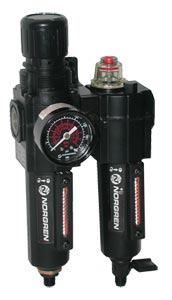

C72H Series Air Filter/Regulator-Lubricator Combination

Norgren Excelon® Filter/Regulator- Lubricator Combination Units for Pneumatic Applications | C72H Series Air Filter/Regulator-Lubricator Combination

See All Models Below

  • True Modularity with Norgren Quikclamp® Connections
  • Quick Release Bayonet Bowl
  • Lubricator Flow Sensor Provides a Nearly Constant Oil/Air Ratio Over a Wide Range of Air Flows
  • Push-to-Lock Adjusting Knob with Tamper Resistant Option
  • All Around (360°) Visibility of the Lubricator Sight-Feed Dome Simplifies Installation and Adjustment
  • Regulator Balanced Valve Minimizes Effect of Variation in the Inlet Pressure on the Outlet Pressure
Valves, Regulators and I/P Converters - View related products

Description


The C72H Series Air Line Air Filter/Regulator-Lubricator Combination Units are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular component, this filter/regulator-lubricator can quickly be attached to smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

The C72H Filter/Regulator-Lubricator combination units come in Micro-Fog models for pneumatic applications containing one or more points of lubrication. Uses include lubrication of cylinders and air driven devices like air line tools or pneumatic screwdrivers.

SPECIFICATIONS

Fluid: Compressed air
Maximum Pressure:
    Transparent Bowl: 10 bar (150 psig)
    Metal Bowl:
        Manual or Semiautomatic Drain: 17 bar (250 psig)
        Automatic Drain: 10 bar (150 psig) O
perating Temperature*:
    Transparent Bowl: -20 to 50°C (0 to 125°F)
    Metal Bowl: -20 to 65°C (0 to 150°F)
Particle Removal: 5, 25, or 40 µm filter element

MATERIALS
Body: Zinc
Bonnet: Acetal
Transparent Bowl: Polycarbonate
Guard for Transparent Bowl: Zinc
Metal: Zinc
Metal Bowl Liquid Level Indicator Lens: Transparent nylon
Sight Feed Dome: Transparent nylon
Element: Sintered polypropelene
Elastomers: Neoprene and nitrile * Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°)F.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
C72H-2AK-AW3-RMG-QWN
Consult Sales
Availability:


1/4" Standard micro-fog filter/regulator with lubricator 1.08kg (2.37lb)
C72H-3AK-AW3-RMG-QWN
Consult Sales
Availability:


3/8" Standard micro-fog filter/regulator with lubricator 1.08kg (2.37lb)
C73H-2AK-AD3-RMG-QDN
Consult Sales
Availability:


1/4" Standard micro-fog filter/regulator with lubricator 1.36kg (3.0lb)
C73H-3AK-AD3-RMG-QDN
Consult Sales
Availability:


3/8" Standard micro-fog filter/regulator with lubricator 1.36kg (3.0lb)
C73H-4AK-AD3-RMG-QDN
Consult Sales
Availability:


1/2" Standard micro-fog filter/regulator with lubricator 1.36kg (3.0lb)
C74H-3AK-AD3-RMG-QDN
Consult Sales
Availability:


3/8" Standard micro-fog filter/regulator with lubricator 2.36kg (5.20lb)
C74H-4AK-AD3-RMG-QDN
Consult Sales
Availability:


1/2" Standard micro-fog filter/regulator with lubricator 2.30kg (5.07lb)
Accessories
Quick Clamps for easy assembly
OM-AIR-4214-52
€16.31
Availability: 1 week

Quick Clamp with wall bracket for H72 series
OM-AIR-4314-52
Consult Sales
Availability:


Quick Clamp with wall bracket for H73 and H74 series
OM-AIR-4214-51
€12.71
Availability: 1 week

Quick Clamp for H72 Series
OM-AIR-4314-51
€13.89
Availability: 1 week

Quick Clamp for H73 and H74 Series
Pipe Adapters for easy assembly
OM-AIR-4215-02
€16.87
Availability: 1 week

Quickmount pipe adapters H72 - 1/4" NPT port
OM-AIR-4215-03
Consult Sales
Availability:


Quickmount pipe adapters H72 - 3/8" NPT port
OM-AIR-4315-01
Consult Sales
Availability:


Quickmount pipe adapters H73 - 1/4" NPT port
OM-AIR-4315-02
Consult Sales
Availability:


Quickmount pipe adapters H73 & H74 - 3/8" NPT port
OM-AIR-4315-03
€17.47
Availability: 1 week

Quickmount pipe adapters H73 & H74- 1/2" NPT port
OM-AIR-4215-05
Consult Sales
Availability:


Quickmount pipe adapters H72- 1/4" G port
OM-AIR-4215-06
Consult Sales
Availability:


Quickmount pipe adapters H72- 3/8" G port
OM-AIR-4315-09
Consult Sales
Availability:


Quickmount pipe adapters H73 - 1/4" G port
OM-AIR-4315-10
Consult Sales
Availability:


Quickmount pipe adapters H73 & H74 - 3/8" G port
OM-AIR-4315-11
Consult Sales
Availability:


Quickmount pipe adapters H73 & H74 - 1/2" G port
All amounts shown in EUR
Note: Models include PTF threads. Filter/regulator has a knob adjustment, automatic drain, transparent bowl with guard, 40 µm element,relieving diaphragm and 10 bar (150 psig) regulating spring and gauge. Lubricator is a micro-fog model with 1/4 turn manual drain and transparent bowl with guard.
