Excelon® Lockout Safety Valves for Compressed Air Systems.

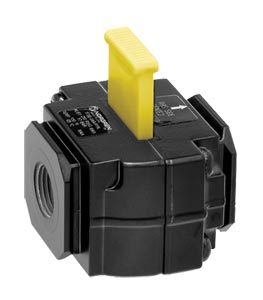

T72T Series Lockout Safety Valves

Lockout Safety Valves for Compressed Air | T72T Series Lockout Safety Valves

Lockout Safety Valves for Compressed Air

58,90 T72T-2AA-P1N

  • In-Line or Modular Installation
  • Valves can be Locked in the Closed Position Only
  • Excelon® 3-Port/2-Position Lockout Valves Help Conform to OSHA Lockout Regulations in USA Market

Description

The T72T Series Lockout Valves are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air line preparation supply system. As a modular component, this lockout valve can quickly be attached to air regulators, filters, oilers, smooth start / exhaust valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

Lockout valves are used to protect people and equipment from accidental operation during maintainance, repair or modifications. They are intended to help conform to OSHA regulations for lockout - tag out programs for control of pneumatic power supply.

SPECIFICATIONS
Fluid: Compressed air
Maximum Pressure: 17 bar (250 psig)
Operating temperature*: -34 to 65°C (-30 to 150°F)
CV Factor from IN to OUT Ports:
    ¼" Ports: 4.0
    38" Ports: 8.0
    ½" Ports: 8.1
    ¾" Ports: 7.7
CV Factor from OUT to Exhaust Ports on 3-Port/2-Position Valves: 0.2
Exhaust Port Threads on T72T and T73T Models: 10-32
Exhaust Port Threads on T74T Models: 18 PTF with PTF main ports, 18" ISO Rc with ISO G and ISO Rc main ports
Hole Diameter in Slide for Padlock 72 and 73: 8 mm (516")
Hole Diameter in Slide for Padlock: 7.5 mm (0.29")
MATERIALS
Body: Zinc
Slide: Acetal plastic
Elastomers: Nitrile
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F).

MODEL NO.PORT SIZE (in)CONFIGURATIONWEIGHT kg (lb)
T72T-2AA-P1N 1/4 3-port/2-position threaded exhaust port 0.79 (0.36)
T72T-3AA-P1N 3/8 3-port/2-position threaded exhaust port 0.86 (0.39)
T73T-2AA-P1N 1/4 3-port/2-position threaded exhaust port 0.7 (0.3)
T73T-3AA-P1N 3/8 3-port/2-position threaded exhaust port 0.7 (0.3)
T73T-4AA-P1N 1/2 3-port/2-position threaded exhaust port 0.7 (0.3)
T74T-3AA-P1N 3/8 3-port/2-position threaded exhaust port 0.68 (0.32)
T74T-4AA-P1N 1/2 3-port/2-position threaded exhaust port 0.65 (0.30)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
3-port/2-position threaded exhaust port
T72T-2AA-P1N
58.90
Availability: 1 week

Lockout - Tag out safety valve ¼' port
T72T-3AA-P1N
91.33
Availability: 1 week

Lockout - Tag out safety valve 38' port
T73T-2AA-P1N
57.74
Availability: 1 week

Lockout - Tag out safety valve ¼' port
T73T-3AA-P1N
Consult Sales
Availability:


Lockout - Tag out safety valve 38' port
T73T-4AA-P1N
Consult Sales
Availability:


Lockout - Tag out safety valve ½' port
T74T-3AA-P1N
Consult Sales
Availability:


Lockout - Tag out safety valve 38' port
T74T-4AA-P1N
Consult Sales
Availability:


Lockout - Tag out safety valve ½' port
All amounts shown in EUR
Note: All of the above are with PTF threads.
Ordering Example: (1) T72T-2AA-P1N Lockout valve, ¼'' PTF ports, 3-port/2-position valve with #10-32 threaded exhaust port, €58.90
