1/4 DIN Temperature Controllers

CN730 Series

1/4 DIN Temperature Controllers | CN730 Series

1/4 DIN Temperature Controllers

124,00 CN732

1 year warranty CE
  • Dual Display
  • Autotune
  • RS-485 Communications
  • Free Software
  • Alarm Functions
  • Thermocouple/ RTD Inputs
  • Output Status

Description

Input Types Range
Pt100Ω RTD 0 to 100°C (32 to 212°F)
-20 to 500°C (-4 to 932°F)
-200 to 600°C (-328 to 1112°F)
B Thermocouple100 to 1800°C (212 to 3272°F)
S Thermocouple 0 to 1700°C (32 to 3092°F)
R Thermocouple 0 to 1700°C (32 to 3092°F)
N Thermocouple -200 to 1300°C (-328 to 2372°F)
E Thermocouple 0 to 600°C (32 to 1112°F)
T Thermocouple -20 to 400°C (-4 to 752°F)
-200 to 400°C (-328 to 752°F)
J Thermocouple -20 to 400°C (-4 to 752°F)
-100 to 850°C (-148 to 1562°F)
K Thermocouple -200 to 1300°C (-328 to 2372°F)
-200 to 500°C (-328 to 932°F)
L Thermocouple -200 to 500°C (-328 to 932°F)
U Thermocouple -200 to 800°C (-328 to 1472°F)

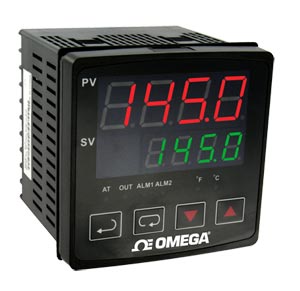

The CN730 Series ¼ DIN temperature controllers offer easy-to-use programming menus designed for quick installation. Control functions include ON/OFF, PID, auto-tuning or manual tuning. The CN730 Series is available with relay, dc pulse or current output with two additional alarm outputs. The alarm outputs can be configured from 12 different preprogrammed settings. The CN730 Series accepts a variety of thermocouple and RTD inputs. Process value and set-point value are simultaneously displayed with the process value in red and setpoint in green.

SPECIFICATIONS
Inputs: Thermocouple or RTD, see chart
Display: Two 4-digit, 7-segment, LEDs
PV: Red, 19 mm (0.75") H
SV: Green, 12.7 mm (0.5") H
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C (32 to 122°F)
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPST, 5A @ 250Vac resistive
Voltage Pulse: 14V, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Communication: RS-485 MODBUSR communication protocol
Panel Cutout: ¼DIN, 92 mm square (3.622 square")
Dimensions: 96 x 96 x 15.8 mm bezel (3.78 x 3.78 x 0.625")
Panel Depth: 79.2 mm (3.125")
Weight: 425 g (15 oz)
Front Panel Rating: IP66
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
CN732
124,00
Availability: 1 week

DC pulse output, with RS-485 communications*
Quick Ship
CN733
124,00
Availability: 1 week

5 Amp Relay output, with RS-485 communications*
Quick Ship
CN735
124,00
Availability: 1 week

4 to 20 mA output, with RS-485 communications*
Accessories
Quick Ship
CNQUENCHARC
€14.00
Availability: In Stock

Noise suppression kit, 110 to 230 Vac
Quick Ship
DPP-6
580.00
Availability: 1 week

1/4 DIN Panel Punch
Quick Ship
CN7-485-USB-1
Consult Sales
Availability:


RS485 to USB Converter
All amounts shown in EUR
Note: Comes with operator’s manual
