General Purpose Compact 4PDT "Ice Cube" Plug-In Relays with Enhanced Features

D2PF Series

General Purpose Compact 4PDT

See All Models Below

PLACE ORDER
  • 4PDT Relays, 3 A Load Capability
  • Flag Indicator Shows Relay Status in Manual or Powered Condition
  • Shows Coil ON or OFF Status
  • Color Coded Pushbutton Identifies: AC Coils with Red or DC Coils with Blue Pushbuttons and Allows for Manual Operation of Relay Without the Need for Coil Power
  • Ideal for Field Service Personnel to Test Control Circuits
  • Lock Down Door, When Activated, Holds Pushbutton and Contacts in the Operate Position-Excellent for Analyzing Circuit Problems
  • Finger-Grip Cover Allows Operator to Remove Relays from Sockets More Easily than Conventional Relays
  • White Plastic ID Tag/Write Label Used for Identification of Relays in Multi-Relay Circuits
  • DIN Rail Mount

Description

The D2PF series relays are general purpose plug-in style relays. These 4PDT relays are extremely compact and are available with coil voltage of 24 Vdc and 120 Vac. The D2PF series offer a number of enhanced features including LED status lamp, push-totest button for manual relay operation, a convenient finger grip for removing relays and a write-on label that can be used for identifying the relay in multiple relay circuits.

SPECIFICATIONS
[INDUCTIVE LOAD (P.F. = 1.0)]
Coil Pickup Voltage (Max): 85% AC; 80% DC (% of nominal)
Coil Drop Out Voltage (Min): 10% AC; 10% DC (% of nominal)
Coil Maximum Voltage: 110% of nominal
Coil Insulation System per UL
Standard 1446: Class B, 130 °C (266 °F)
Contact Configuration: 4PDT
Rated Load: 120 Vac to 3 A, 277 Vac, 28 Vdc to 3 A
Maximum hp Ratings: 1.10 hp, 120 Vac, 1.10 hp, 277 Vac
Contact Material: Fine silver, gold diffused
Pilot Duty: B300
Utilization Category (IEC): AC-15
Min Permissible Load: 100 mA @ 5 Vdc or 0.5 W
Contact Resistance: 100 Milliohms max @ 6V, 1 A
Dielectric Strength Coil to Contacts: 1500 Vrms
Dielectric Strength Across Open Contacts: 1000 Vrms
Dielectric Strength Contacts to Frame: 1500 Vrms
Dielectric Strength Insulation Resistance: 100 M. min @ 500 Vdc
Operating Temperature: -40 to 70 °C (-40 to 158 °F)
Storage Temperature: -40 to 105 °C (-40 to 221 °F)
Electrical Life Expectancy at Rated
Resistive Load: 200,000 operations
Mechanical Life Expectancy at No Load: 10 million operations
Approximate Weight: 37 g (0.081 lb)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
D2PF4AA
Consult Sales
Availability:


4PDT relay,120 Vac coil voltage
D2PF4AT1
Consult Sales
Availability:


4PDT relay, 24 Vdc coil voltage
D2PF4-BC
€20.61
Availability: 1 week

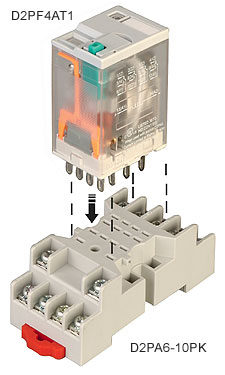

Screw terminal socket and hold down clip for D2PF4AA and D2PF4AT1 relays
D2PA6
€16.18
Availability: 8 weeks

Screw terminal socket for D2PF4AA and D2PF4AT1 relays (requires PQC-1342 hold down clip)
PQC-1342
€0.95
Availability: 1 week

Hold down clip for D2PA6 screw terminals
DIN Rail
XBANS3575P
€15.68
Availability: 1 week

DIN rail, 35mm x 7.5mm x 2m, slotted
XBANS3575U
Consult Sales
Availability:


DIN rail, 35mm x 7.5mm x 2m, solid
XBANS3515P
Consult Sales
Availability:


DIN rail, 35mm x 15mm x 2m, slotted
XBANS3515U
€28.75
Availability: 1 week

DIN rail, 35mm x 15mm x 2m, solid
XBANS3575PL
€25.75
Availability: 1 week

DIN rail, 35mm x 7.5mm x 2m, slotted, aluminum
† All amounts shown in EUR
 Ordering Example: (1) D2PF4-BC Screw terminal socket and hold down clip, €20.61
