1/8 DIN Digital Panel Meters For Process Inputs - Discontinued

DP63800-E

1/8 DIN Digital Panel Meters For Process Inputs

See All Models Below

PLACE ORDER

Process Input
1/8 DIN (50 mm x 97 mm)
41/2-Digit, 14 mm (0.56") LED
Green Display or Red Sunlight-Readable Display
20 mA or 10 Vdc Input
Field-Upgradeable Option Cards
AC and DC Powered Versions
NEMA 4X/IP65

Description

The DP63800 series has been discontinued. Please see the Platinum Series as a possible alternative or contact our sales department.

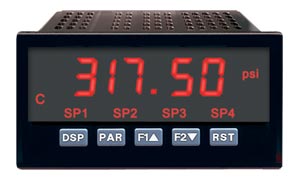

The DP63800 Series panel meters offer many features and performance capabilities to suit a wide range of industrial applications. Models include universal DC process inputs. The optional plug-in output cards allow the opportunity to configure the meter for present applications while providing easy upgrades for future needs. The meters have a bright 14 mm (0.56") LED display. The unit is available with a red, sunlight-readable or a standard green LED. The intensity of display can be adjusted from dark-room- to sunlight-readable, making it ideal for viewing in variable light applications.
The meters provide a max and min reading memory with programmable capture time. The capture time is used to prevent detection of false max or min readings which may occur during start-up or unusual process events.
The meters have 4 setpoint outputs, implemented on plug-in option cards. The plug-in cards provide dual form “C” relays (5 A), quad form “A” (3 A), or either quadsinking or quad-sourcing open collector logic outputs. The setpoint alarms can be configured to suit a variety of control and alarm requirements. Communication and bus capabilities are also available as option cards. These include RS232, RS485, and MODBUS.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Display Meter Only, No Outputs

DP63800-E

€374.32

Availability: 1 week

DC Process inputs, red display, 85 to 250 Vac, 50/60 Hz

DP63800-E-LV

Consult Sales

Availability:

DC Process inputs, red display, 11 to 36 Vdc, 24 Vac

DP63800-E-GN

Consult Sales

Availability:

DC Process inputs, green display, 85 to 250 Vac, 50/60 Hz

DP63800-E-GN-LV

Consult Sales

Availability:

DC Process inputs, green display, 11 to 36 Vdc, 24 Vac

Optional Plug-in Output Cards (Field Installable)

Setpoint Alarms (Only 1 Alarm Card Can Be Installed Into Base Meter)

LDP6-CDS10

Consult Sales

Availability:

Dual setpoint relay output card

LDP6-CDS20

€115.43

Availability: 1 week

Quad setpoint relay output card

LDP6-CDS30

Consult Sales

Availability:

Quad setpoint sinking open collector output card

LDP6-CDS40

€83.05

Availability: 1 week

Quad setpoint sourcing open collector output card

Analog Output

LDP6-CDL10

€156.97

Availability: 1 week

Analog output card

Communications (Only 1 Communications Card Can Be Installed Into Base Meter)*

LDP6-CDC10

€122.73

Availability: 1 week

RS485 serial communications output card with terminal block

LDP6-CDC1C

€111.01

Availability: 1 week

Extended RS485 serial communications output card with dual RJ11 connector

LDP6-CDC20

€122.73

Availability: 1 week

RS232 serial communications output card with terminal block

LDP6-CDC2C

€111.01

Availability: 1 week

Extended RS232 serial communications output card with 9-pin D connector

LDP6-CDC40

€128.78

Availability: 1 week

MODBUS communications card

LDP6-CDC4C

Consult Sales

Availability:

Extended MODBUS communications card with dual RJ11 connector

† All amounts shown in EUR
Note: *Software is free. Download from omega.com
Comes with complete operator’s manual.
Note: Adding option cards—meters can be fitted with up to 3 optional plug-in cards, however, only 1 card from each function type can be installed at a time. The function types include setpoint alarms, analog output and communications. The cards can be installed initially or at a later date. Each optional plug-in card is shipped with installation and programming instructions.
Ordering Example: (1) LDP6-CDL10 analog output card, €156.97
