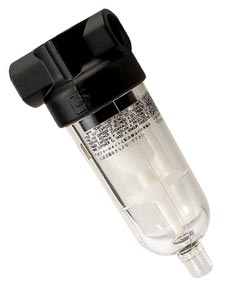

General Purpose Air Line Filter for Compressed Air

F07 Inline Pneumatic Air Filter

Airline Filter for compressed air | F07 Inline Pneumatic Air Filter

Airline Filter for compressed air

See All Models Below

PLACE ORDER
  • Compact Design
  • Transparent Polycarbonate Bowl for Visibility
  • Screw-On Bowl Reduces Maintenance Time
  • Removes Liquids and Solids
  • 5 Micron Filter Element
  • 1/4" PTF Gauge Ports
  • ¼" PTF Gauge Ports
  • Maximum Pressure 10 bar (150 psig)
  • Transparent Polycarbonate Bowl

Description

General purpose air line filters are designed for in-line use as a single filtering source for liquid and particles from compressed air lines. These air filters include ¼" PTF threads, a transparent screw-on bowl, automatic drain and 5µm filter element. They are suitable for a wide range of pneumatic tools and pneumatic components and an excellent point of use general purpose filter.

SPECIFICATIONS
Particle Removal: 5µm filter element
Operating Temperature*: -34 to 50°C (-30 to 125°F)
Maximum Pressure: 10 bar (150 psig)
Materials:
    Body: Zinc
    Bowl: Transparent polycarbonate
    Element: Sintered polypropylene
*Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
F07-200-A1TA
Consult Sales
Availability:


¼'' Port with automaic drain
F07-200-M1TA
Consult Sales
Availability:


¼'' Port with manual drain
Accessories
OM-AIR-5726-04
Consult Sales
Availability:


5µm replacement filter element for F07
OM-AIR-5939-06
Consult Sales
Availability:


Wall mounting bracket
OM-AIR-3646-53
€16.92
Availability: 1 week

Replacement bowl with manual drain and o-ring
OM-AIR-3646-51
Consult Sales
Availability:


Replacement bowl with automatic drain and o-ring
† All amounts shown in EUR
