Excelon® Oil Removing (Coalescing) Filters for Compressed Air Systems with Partical Removing Element.

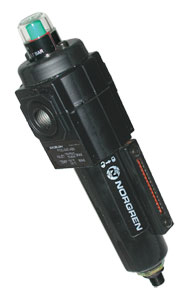

F72C Series Oil Removing (Coalescing) Filters

Excelon Oil Removing  Filters for Compressed Air Systems | F72C Series Oil Removing (Coalescing) Filters

Excelon Oil Removing Filters for Compressed Air Systems

115,00 F72C-2AD-AE0

  • In-Line or Modular Installation
  • High Efficiency Oil and Particle Removal for compressed air systems
  • Replacable Air filter element for 0.01 µm partical removal.
  • Quick Release Bayonet Bowl
  • Standard Visual Service Life Indicator Turns from Green to Red When the Filter Element Needs to be Replaced
  • Optional Electrical Service Indicator Also Available
  • Modular Installations with Excelon 72, 73 and 74 Series Can be Made to Suit Particular Applications
  • Follow this link to check our filters range

Description


The F72C Coalescing Filters are designed for use as a single in-line unit or as part of Norgren's Excelon® modular compressed air preparation supply system. As a modular pneumatic component, this oil removing filter can quickly be attached to air regulators, filters, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.

The F72C oil removing coalescing air filter is a highly efficient oil removing filter for compressed air systems. These filters come with a 0.01µm partical filter and a visual service life indicator which turns from green to red when the filter element needs to be replaced.
Coalescing filters should be used in conjunction with a 5µm general purpose filter upstream to maximize filter element life and optimize performance.
Combination 5µm general purpose filter and coalescent filter combination units are sold below for your convenience.

As a modular pneumatic component, this regulator can quickly be attached to filters, oilers, smooth start / exhaust valves, safety lockout valves and pipe adapters. With our Quickclamp® and Quickclamp® and wall bracket accessories, a complete compressed air supply system can be assembled and mounted in minutes.
SPECIFICATIONS
Fluid: Compressed air
Maximum Pressure:
Transparent Bowl:
    Manual or Semiautomatic Drain: 10 bar (150 psig)
    Automatic Drain: 8 bar (116 psig)
Metal Bowl:
    Manual or Semiautomatic Drain: 17 bar (250 psig)
    Automatic Drain: 8 bar (116 psig)
Operating Temperature*:
    Transparent Bowl: -34 to 50°C(-30 to 125°F)
    Metal Bowl: -34 to 65°C(-30 to 150°F)
Particle Removal: 0.01 ìm

F72C MATERIALS
Body: Zinc
Transparent Bowl: Polycarbonate
Guard for Transparent Bowl: Zinc
Metal: Zinc
Metal Bowl Liquid Level
Indicator Lens: Transparent nylon
Element: Synthetic fiber and polyurethane foam

Elastomers: Neoprene and nitril
Service Life Indicator Materials-
Body: Transparent nylon
Internal Parts: Acetal
Spring: Stainless steel
Elastomers: Nitrile

F73C and F74C MATERIALS
Body: Aluminum
Transparent Bowl: Polycarbonate
Transparent with Guard: Polycarbonate, steel guard
Metal Bowl: Aluminum
Metal Bowl Liquid Level
Indicator Lens: Transparent nylon
Element: Synthetic fiber and polyurethane foam
Elastomers: Neoprene and nitrile
Mechanical Service Indicator
Materials Body: Transparent nylon
Internal parts: Acetal
Spring: Stainless steel
Elastomers: Nitrile
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F).
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
F72C-2AD-AE0
115,00
Availability: 5 weeks

Coalescing Air Line Filter with ¼' Port
Quick Ship
F73C-3AD-AD0
160,00
Availability: 5 weeks

Coalescing Air Line Filter with ⅜' Port
Quick Ship
F74C-4AD-AD0
193,00
Availability: 5 weeks

Coalescing Air Line Filter with ½' Port
Quick Ship
F74H-4AD-AD0
233,00
Availability: 5 weeks

Coalescing Air Line Filter with ½' Port, high flow
Quick Ship
F74H-6AD-AD0
241,00
Availability: 5 weeks

Coalescing Air Line Filter with ¾' Port, high flow
Wall Mounting Brackets
Quick Ship
OM-AIR-4224-50
11.25
Availability: 1 week

For F72C models
Quick Ship
OM-AIR-4424-50
11.25
Availability: 4 weeks

For F73C models
Quick Ship
OM-AIR-4324-50
14.25
Availability: 5 weeks

For F74C models
Replacement Coalescing Filters Elements
Quick Ship
OM-AIR-5925-09
65.00
Availability: 5 weeks

For F72C models
Quick Ship
OM-AIR-4444-01
67.00
Availability: 5 weeks

For F73C models
Quick Ship
OM-AIR-4344-01 (F74C)
61.00
Availability: 1 week

For F74C models
Quick Ship
OM-AIR-4344-02 (F74H)
96.00
Availability: 9 weeks

For F74H models
Quickclamps
Quick Ship
OM-AIR-4214-51
10.50
Availability: 1 week

Quickclamps for F72C models
Quick Ship
OM-AIR-4314-51
11.25
Availability: 1 week

Quickclamps for F73C, F74C & F74H models
Quickclamp Wall Brackets
Quick Ship
OM-AIR-4214-52
13.25
Availability: 1 week

Quickclamp wall bracket for F72C models
Quick Ship
OM-AIR-4314-52
16.25
Availability: 5 weeks

Quickclamp wall bracket for F73C, F74C & F74H models
Pipe Adapters
Quick Ship
OM-AIR-4215-02
13.75
Availability: 1 week

¼' NPT for F72C models
Quick Ship
OM-AIR-4215-03
13.75
Availability: 5 weeks

⅜' NPT for F72C models
Quick Ship
OM-AIR-4315-01
14.25
Availability: 5 weeks

¼' NPT for F73C, F74C & F74H models
Quick Ship
OM-AIR-4315-02
14.25
Availability: 5 weeks

⅜' NPT for F73C, F74C & F74H models
Quick Ship
OM-AIR-4315-03
14.25
Availability: 1 week

½' NPT for F73C, F74C & F74H models
Quick Ship
OM-AIR-4315-04
15.25
Availability: 1 week

¾' NPT for F73C, F74C & F74H models
Combination 5µm General Purpose and Coalescing Filters
Quick Ship
H72A-2AB-AL1-NNN-LNN
Consult Sales
Availability:


¼' NPT assembled with Quickclamp
Quick Ship
H72A-3AB-AL1-NNN-LNN
Consult Sales
Availability:


⅜' NPT assembled with Quickclamp
Quick Ship
H73A-3AB-AD1-NNN-DNN
Consult Sales
Availability:


⅜' NPT assembled with Quickclamp
Quick Ship
H73A-2AB-AD1-NNN-DNN
Consult Sales
Availability:


¼' NPT assembled with Quickclamp
Quick Ship
H73A-4AB-AD1-NNN-DNN
Consult Sales
Availability:


½' NPT assembled with Quickclamp
Quick Ship
H74A-3AB-AD1-NNN-DNN
Consult Sales
Availability:


⅜' NPT assembled with Quickclamp
Quick Ship
H74A-4AB-AD1-NNN-DNN
440.00
Availability: 1 week

½' NPT assembled with Quickclamp
Quick Ship
H74B-4AB-AD1-NNN-DNN
Consult Sales
Availability:


½' NPT high flow filter assembled with Quickclamp
All amounts shown in EUR
Note: Models listed include PTF threads, service indicator, automatic drain and a metal bowl with liquid level indicator.
Maximum flow with 6.3 bar (90 psig) inlet pressure to maintain stated oil removal performance.
