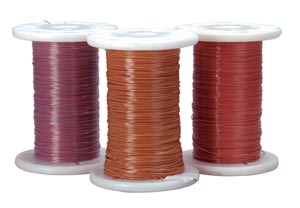

Duplex Insulated Thermocouple Wire

TT, KK, TG, GG Fine Wires

^€35,15 GG-K-30-25

Insulated thermocouple wires with 30, 36, and 40 Gage
Convenient Spool Lengths 25, 50, 100, 200, 500, 1000 ft.
ANSI Special Limits of Error and EN 60584-2 Tolerance Class 1 Rating Available on Most Models

Description

Find how a Thermocouple wire works on this link.

The table below shows the insulations an ranges of Insulated thermocouple wires in our range.

Insulation Code	Insulation		Range Insulation
Insulation Code	Overall	Conductors	Range Insulation
TT	PFA or Neoflon	PFA or Neoflon	-267 to 260°C -450 to 500°F"
KK	Kapton	Kapton	-267 to 316°C -450 to 600°F"
TG	Glass Braid	PFA or Neoflon	-73 to 260°C -100 to 500°F"
GG	Glass	Glass	-73 to 482°C

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

GG-K-36-1000

€756,25

Availability: 1 week

1000 ft, Type K, 36 AWG Thermocouple Wire, Fiberglass Insulation rated to 480°C (900°F)

TT-K-40-25

€71,50

Availability: 1 week

25 ft, Type K, 40 AWG Thermocouple Wire, PFA Insulation rated to 260°C (500°F)

KK-K-30-500

€613,07

Availability: 1 week

500 ft, Type K, 30 AWG Thermocouple Wire, Kapton Insulation rated to 316°C (600°F)

GG-J-30-500

€263,02

Availability: 1 week

500 ft, Type J, 30 AWG Thermocouple Wire, Fiberglass Insulation rated to 480°C (900°F)

TT-E-30-200

€230,80

Availability: 1 week

200 ft, Type E, 30 AWG Thermocouple Wire, PFA Insulation rated to 260°C (500°F)

TT-T-36-100

€178,58

Availability: 1 week

100 ft, Type T, 36 AWG Thermocouple Wire, PFA Insulation rated to 260°C (500°F)

GG-N-30-50

€70,40

Availability: 4 weeks

50 ft, Type N, 30 AWG Thermocouple Wire, Fiberglass Insulation rated to 480°C (900°F)

† All amounts shown in EUR

Part Number Builder

Build Your Part Number Below

(1)	(2)	(3)	(4)	(5)

Option Descriptions:

(1) Insulation select from:
TT for -267 to 260°C (-450 to 500°F)
KK for -267 to 316°C (-450 to 600°F)
TG for -73 to 260°C (-100 to 500°F)
GG for -73 to 482°C

(2) Calibration select from:
-K for K type Thermocouple
-T for T type Thermocouple
-J for J type Thermocouple
-E for E type Thermocouple
-N for N type Thermocouple

(3) AWG Number select from:
-30 for 30 Gage
-36 for 36 Gage
-40 for 40 Gage

(4) Special Limits Error select from:
Nothing(leave field blank) for none
-SLE for Special limits of error

(5) Length select from:
-25 for 25' (7.5 Meters)
-50 for 50' (15 Meters)
-100 for 100' (30 Meters)
-200 for 200' (60 Meters)
-500 for 500' (150 Meters)
-1000 for 1000' (300 Meters)

Note: All combinations may not be valid, check spec sheet for valid part numbers.
