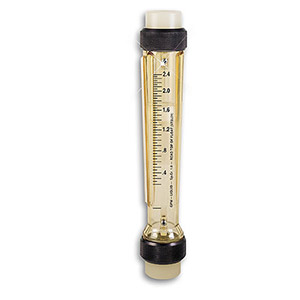

All Plastic Variable Area Flow meters

FL-86 Series

All Plastic Variable Area Flow Meters | FL-86 Series

All Plastic Variable Area Flow Meters

657,32 FL-86B

1 year warranty
  • NIST Calibration Available
  • Union Ends to Simplify Installation and Maintenance
  • Chemical- and Break-Resistant Metering Tube
  • See-Through, Detachable Direct Reading Scale (GPM Water)
  • Vertical In-Line Connections
Variable Area Flow Meters & Switches - View related products

Description

Variable Area Flow Meters for water or water like liquid flow measurement applications.

SPECIFICATIONS

Capacity:
0.5 to 100 GPM water (PTFE float)
Metering Tube Material: Polysulfone
Accuracy/Repeatability: ±6% FS/ ± 1%
Scale Length: 127 mm (5")
Float: PTFE
Fittings: PVDF
O-Rings: FKM (Kalrez ® optional)
Guide Rod: Polysulfone

Note:Polysulfone should not be used in direct sunlight or any other significant sources of Ultra-Violet light.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
FL-86A
473,65
Availability: 1 week

0.1-1GPM, 1/2 " NPT
FL-86B
657,32
Availability: 1 week

0.2-2.4 GPM, 3/4 " NPT
FL-86C
690,48
Availability: 7 weeks

0.5-5 GPM, 3/4 " NPT
FL-86D
919,64
Availability: 6 weeks

1-10 GPM, 1" NPT
FL-86E
903,05
Availability: 7 weeks

2-20 GPM, 1" NPT
FL-86H
3.158,00
Availability: 1 week

6-60 GPM, 2" NPT
FL-86J
2.834,00
Availability: 6 weeks

10-100 GPM, 2" NPT
All amounts shown in EUR
Note: Comes with complete operator’s manual. NIST calibration certificate available; order “-NIST 5PT” for 5-point calibration, $225 “-NIST 10PT” for 10-point calibration, $275
Ordering Example: (1) FL-86C Variable Area Flow Meter with 0.5-5 GPM range, 3 /4, €690,48  plus (1) FL-86C Variable Area Flow Meter with 0.5-5 GPM range, 3 /4, €690,48, €690,48 + 690,48 = €1.380,96
