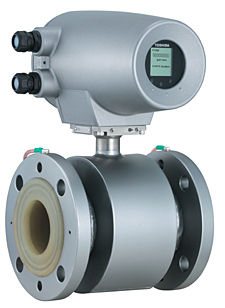

Electromagnetic Flowmeters

FMG-500 Series

See All Models Below

PLACE ORDER

±0.5% Accuracy
Clear, Backlit LCD
Rotational Display
Easy Wiring and Programming
Unique Noise Suppressor

Description

The FMG500 Series flowmeter uses Faraday’s Law of electromagnetic induction to measure the process flow. The device consists of two units: a detector, through which the fluid to be measured flows and in which low-level signals proportional to flow rates are obtained, and a converter, which supplies excitation current to the detector. This amplifies the signals from the detector, converting the signals into a 4 to 20 mAdc current signal. Equipped with a multi-functional converter and noise-suppression circuit, the FMG500 has a high tolerance to noise, providing a stable output for slurry fluid measurements. Infrared switches enable converter parameter setting without removing the cover. Flow direction can be set in either way. The FMG500 Series also has an 128 x 128 dot matrix LCD display which can be rotated to 90, 180 and 270 degrees by software. They are available in pipe sizes from 13 to 406 mm (1/2 to 16") to accommodate many materials, including chemicals, corrosives, foods, pulp, and other solid-matter slurry flows.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

FMG-501

Consult Sales

Availability:

ELCTROMAG FLWMTR 1/2" WAFER CE

FMG-502

Consult Sales

Availability:

ELCTROMAG FLWMTR 1" WAFER CE

FMG-503

Consult Sales

Availability:

ELCTROMAG FLWMTR 11/2"WAFER CE

FMG-504

Consult Sales

Availability:

ELCTROMAG FLWMTR 2" WAFER CE

FMG-505

Consult Sales

Availability:

ELCTROMAG FLWMTR 3" WAFER CE

FMG-506

Consult Sales

Availability:

ELCTROMAG FLWMTR 4" WAFER CE

FMG-521

Consult Sales

Availability:

ELCTROMAG FLWMTR 1/2" FLNGE CE

FMG-522

Consult Sales

Availability:

ELCTROMAG FLWMTR 1" FLNGE CE

FMG-523

Consult Sales

Availability:

ELCTROMAG FLWMTR 11/2"FLNGE CE

FMG-524

Consult Sales

Availability:

ELCTROMAG FLWMTR 2" FLNGE CE

FMG-525

Consult Sales

Availability:

ELCTROMAG FLWMTR 3" FLNGE CE

FMG-526

Consult Sales

Availability:

ELCTROMAG FLWMTR 4" FLNGE CE

FMG-527

Consult Sales

Availability:

ELCTROMAG FLWMTR 6" FLNGE CE

FMG-528

Consult Sales

Availability:

ELCTROMAG FLWMTR 8" FLNGE CE

FMG-529

Consult Sales

Availability:

ELCTROMAG FLWMTR 10" FLNGE CE

FMG-530

Consult Sales

Availability:

ELCTROMAG FLWMTR 12" FLNGE CE

† All amounts shown in EUR
Note: Comes with complete operator’s manual.
