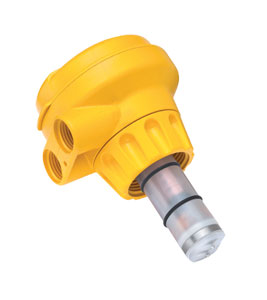

Magnetic Flowmeter (Insertion Style)

FMG3000 and FMG3100 Series

Magnetic Flowmeter (Insertion Style) | FMG3000 and FMG3100 Series

Magnetic Flowmeter (Insertion Style)

1.066,40 FMG3002-PP

1 year warranty CE
  • For 0.5 to 8 in. Pipes
  • No Moving Parts
  • 0.05 to 5 m/s (0.15 to 16.4 ft/s) Flow Rate Range
  • Accurate Measurement Even in Dirty Liquids
  • Blind 4 to 20 mA or Frequency Output
  • No Pressure Drop
  • Corrosion Resistant Polypropylene
Magnetic Flow Meters - View related products

Description

The FMG3000 Series magmeters are insertion-style magnetic flow sensors with no moving parts. All models are constructed of corrosion-resistant materials to provide long-term reliability with minimal maintenance costs. When these magmeters are used with OMEGA’s comprehensive line of installation fittings, sensor alignment and insertion depth are automatic. Fittings are required for installation. Please refer to accessories below.

These versatile, simple-to-install flowmeters deliver accurate flow measurement over a wide dynamic range in pipe sizes ranging from 0.5 to 8", satisfying the requirements of many diverse applications. FMG3000 Series magmeters offer a variety of output options for use with OMEGA flow instrumentation that has a frequency or 4 to 20 mA output. Flow velocity measurement is compensated for temperature via an integrated temperature sensor.

SPECIFICATIONS

Performance

Linearity: ±1% rdg ±0.01 m/s (0.033 ft/s)
Repeatability: ±0.5% of rdg @ 25°C (77°F)
Minimum Conductivity: 20 µS/cm
Pipe Size Range: 0.5 to 8"
Flow Range: 0.05 to 5 m/s (0.15 to 16.4 ft/s)

Wetted Materials
Sensor Body/Electrodes and Grounding Ring:

PP: Polypropylene/316L SS
O-Rings: FPM (FKM) standard
Other Materials:
    Case: PBT
    Protection Rating: NEMA 4X (IP65)

Power Requirements
4 to 20 mA: 21.6 to 26.4 Vdc, 22.1 mA max
Frequency: 4.5 to 26.4 Vdc, 15 mA max. Reverse polarity and short circuit protected

Output Specifications
Current Output (4 to 20 mA):
    Loop Accuracy: 32 µA max error (25°C @ 24 Vdc)
    Isolation: Low voltage <48 Vac/Vdc from electrodes and auxiliary power
Display (Optional):
    Characters: 2 x 16
    Window: Polyamide
    SPDT Relay: 5 A @ 30 Vdc max, 5 A @ 250 AC max
    Solid State Relay: 50 mA @ 30 Vdc, 50 mA @ 42 Vac
Maximum Cable: 300 m (1000')
Error Condition: 22.1 mA
Max Loop Resistance: 300 Ω
Frequency Output:
    Max Pull-Up Voltage: 30 Vdc
    Max Current Sink: 50 mA, current limited
Maximum Cable: 300 m (1000')

Environmental Requirements
Storage Temperature: -20 to 70°C (-4 to 158°F)
Relative Humidity: 0 to 95% (non-condensing)
Operating Temperature:
    Ambient: -10 to 70°C (14 to 158°F)
    Media: 0 to 85°C (32 to 185°F)
Max Operating Pressure: 10.3 bar @ 25°C (150 psi @ 77°F), 1.4 bar @ 85°C (20 psi @ 185°F)
Standards and Approvals: CE, NEMA 4X (IP65)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Magnetic Flowmeter for 0.5 to 4" Pipes (Fittings sold separately)
FMG3001-PP
1,066.40
Availability: 1 week

Polypropylene/316LSS, 0.5 to 4" pipe size, frequency output
FMG3002-PP
1,066.40
Availability: 1 week

Polypropylene/316LSS, 0.5 to 4" pipe size, 4 to 20 mA output
Magnetic Flowmeter with Display for 0.5 to 4" Pipes (Fittings sold separately)
FMG3001-PP-D
2,103.00
Availability: 9 weeks

Polypropylene/316LSS, with display, 0.5 to 4" pipe size, frequency output
FMG3002-PP-D
1,960.72
Availability: 1 week

Polypropylene/316LSS, with display, 0.5 to 4" pipe size, 4 to 20 mA output
Magnetic Flowmeter for 5 to 8" Pipes (Fittings sold separately)
FMG3101-PP
1,172.00
Availability: 9 weeks

Polypropylene/316LSS, 5 to 8" pipe size, frequency output
FMG3102-PP
1,171.84
Availability: 9 weeks

Polypropylene/316LSS, 5 to 8" pipe size, 4 to 20 mA output
Magnetic Flowmeter With Display for 5 to 8" Pipes (Fittings sold separately)
FMG3101-PP-D
1,941.20
Availability: 9 weeks

Polypropylene/316LSS, with display, 5 to 8" pipe size, frequency output
FMG3102-PP-D
2,056.83
Availability: 1 week

Polypropylene/316LSS, with display, 5 to 8" pipe size, 4 to 20 mA output
Popular Fittings (Click on Link Below for Full Offering)
FP-5305M
235.79
Availability: 1 week

0.5" pipe PVC molded fitting
FMG-5310
600.58
Availability: 8 weeks

1" Stainless Steel fitting
FP-5320M
276.35
Availability: 8 weeks

2" pipe PVC molded fitting
FP-5320GIS
Consult Sales
Availability:


2" pipe Galvanized Iron saddle fitting
FMG-5320
€470.04
Availability: 9 weeks

2" Stainless Steel fitting
FP-5340GI
€295.37
Availability: 9 weeks

4" pipe Galvanized Iron fitting
FP-5380S
€443.64
Availability: 9 weeks

8" pipe PVC saddle fitting
Accessories
FPP-1220-0021
€10.82
Availability: 1 week

FPM o-ring
FPP-1224-0021
€22.64
Availability: 1 week

EPR (EPDM) o-ring
FPM-5000-LTCK
€83.60
Availability: 9 weeks

Replacement Liquid Tight Connector Kit (contains three connectors)
CNI833
€436.13
Availability: 7 weeks

1/8 DIN controller with relay outputs accepts 4 to 20 mA inputs.
DPF701
Consult Sales
Availability:


1/8 DIN frequency input meter for rate or total
All amounts shown in EUR
Note: Comes complete with operator’s manual and liquid tight connector.

Display units also include 3 relays: 2 SPDT and 1 solid state.


Ordering Example: (1) FMG3102-PP Polypropylene/316LSS magmeter with 4 to 20 mA output, €1,171.84  plus (1) FP-5360S 6, €329.58, €1,171.84 + 329.58 = €1,501.42

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Pipe Size select from:
00 for 0.5 to 4 inch
10 for 5 to 8 inch

(2) Output select from:
1 for Frequency
2 for 4 to 20 mA

(3) Wetted Materials select from:
PP for Polypropylene/316L SS
PVDF for PVDF/Hastelloy-C

(4) Display Option select from:
Nothing(leave field blank) for Without display
-D for With display
Note: All combinations may not be valid, check spec sheet for valid part numbers.
