Insertion Magnetic Flow Meter

FMG900 Series

Insertion Magnetic Flow Meter | FMG900 Series

Insertion Magnetic Flow Meter

1.535,40 FMG903

1 year warranty
  • Durable
  • Adjustable Depth
  • Hot-Tap Available
  • Brass or Stainless Steel
  • Immersibility Available
  • Reverse Flow Output Available
  • 3 to 48" Diameter Pipes
Magnetic Flow Meters - View related products

Description

Click on this link if you need more information about Magnetic Flow Meter.

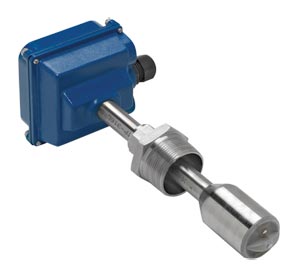

The complete lack of moving parts of this insertion flow sensor is the source of its reliability. There is no rotor to stop turning in dirty water and there are no bearings to wear out. Brass and stainless steel models withstand a variety of temperature, pressure, and chemical conditions. Reverse flow output and immersibility are optional. A rapidly reversing magnetic field is produced in the lower housing. As the fluid moves through this field, a voltage is generated that is measured and translated into a frequency signal proportional to flow rate. This square wave signal can be sent directly to a PLC, control or converted to 4 to 20 mA with the FTB700-T shown below (optional). A modular system of electronics can be attached directly to the flow sensor or remotely mounted. The FMG900 series can provide full indication of rate and total with the (optional) FTB700-D or just a 4 to 20 mA output with the (optional) FTB700-T blind transmitter. The adaptor fitting of the standard unit is a male NPT, and can be directly threaded into ordinary saddles or threaded weld fittings. The hot tap versions include an isolation valve, allowing hot-tap installation, or installation and removal under pressure. Hot tap units include the appropriate installation valve.

Flow Range LPM (GPM)
Pipe Size Min Flow Max Flow
3 19 (5) 1666 (440)
4 30 (8) 2964 (783)
6 68 (18) 6670 (1762)
8 117 (31) 11,860 (3133)
10 185 (49) 18,530 (4895)
12 265 (70) 26,687 (7050)
14 363 (96) 36,325 (9596)
16 473 (125) 47,443 (12,533)
18 602 (159) 60,050 (15,863)
20 742 (196) 74,134 (19,584)
24 1068 (282) 160,749 (28,200)
30 1666 (440) 166,800 (44,064)
36 2404 (635) 240,192 (63,452)
SPECIFICATIONS
Power: 12 to 24 Vdc, 250 mA
Flow Range: 0.28 to 20 ft/sec (0.08 to 6.09 m/sec) Connection Size
Standard Units: 1½ NPT male, hot tap models, 2 NPT male
Ambient Temperature: -17 to 82°C (0 to 180°F)
Fluid Temperature: 0 to 93°C (32 to 200°F)
Maximum Pressure: 13.8 bar (200 psi)
Minimum Conductivity: 20 microSiemens/cm
Shaft and Fitting: 316 SS or brass (depending on model)
Electrodes: Hastelloy®
Electrode Cap: PVDF
Housing: Cast powder-coated aluminum
Valve: Bronze or SS (depending on model)
O-Ring: EPDM
Accuracy: ±1% of full scale
Output: Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec 6 mA max, 30 Vdc forward flow standard (reverse flow optional)
Empty Pipe: Defaults to zero flow
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
FMG901
1.505,00
Availability: 5 weeks

Brass insertion style magmeter, 76 to 254 mm (3 to 10") pipe
FMG902
1.638,79
Availability: 4 weeks

Brass insertion style magmeter, 254 to 1219 mm (10 to 48") pipe
FMG903
1.535,40
Availability: 1 week

SS insertion style magmeter, 76 to 254 mm (3 to 10") pipe
FMG904
1.672,15
Availability: 5 weeks

SS insertion style magmeter, 254 to 1219 mm (10 to 48") pipe
FMG905
1.929,78
Availability: 1 week

Brass insertion style magmeter, hot tap, 76 to 254 mm (3 to 10") pipe
FMG906
2.048,00
Availability: 5 weeks

Brass insertion style magmeter, hot tap, 254 to 1219 mm (10 to 48") pipe
FMG907
2.630,00
Availability: 5 weeks

SS insertion style magmeter, hot tap, 76 to 254 mm (3 to 10") pipe
FMG908
2.612,73
Availability: 5 weeks

SS insertion style magmeter, hot tap, 254 to 1219 mm (10 to 48") pipe
Accessories
FTB700-T
€494.25
Availability: 1 week

Blind 4 to 20 mA transmitter
FTB700-D
Consult Sales
Availability:


Remote rate and total display with 4 to 20 mA output
TX4-100
€49.97
Availability: In Stock

4-Core 7/0.2 mm screened cable white, red, green & black with drain wire, 30 metres
All amounts shown in EUR
Note: Comes complete with operator's manual.
For reverse flow option add a "-RF" to the model number and $122 to the price.
