Static Mixers

FMX Series

FMX Series Static Mixers | FMX Series

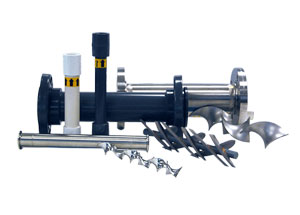

FMX Series Static Mixers

See All Models Below

RoHS
  • FMX7200 Series: 3/8" - 2" Diameter
  • FMX8400 Series: 1/8" - 2" Diameter
  • FMX9800 Series Sanitary Mixers: 1/2" - 3" Diameter
  • FMX9200/FMX9400 Series Process Mixers: 2" - 18" Diameter
Pumps & Mixers - View related products

Description

OMEGA ® FMX7200 Series mixers are designed for efficient turbulent-flow mixing at low pressure drop. Ideal for admixing water/wastewater treatment chemicals, polymer dilution, and other low-viscosity applications. Mixing elements consist of a series of polypropylene baffles, and are mounted in a PVC housing with FNPT ends. CPVC and clear PVC housings available.

OMEGA ® FMX8400 Series mixers offer efficient mixing of low or high viscosity fluids at low pressure drop. Also ideal for two-phase (gas-liquid) mixing and blending of gases. Elements consist of a series of left and right helixes fabricated from 316SS. 304SS housing is corrosion-resistant, designed for high pressure and high temperature service. MNPT ends ensure easy installation.

OMEGA ® FMX9800 Series mixers are ideal for food and beverage processing, manufacturing pharmaceuticals and cosmetics, and other sanitary in-line applications. Features 3-A, 316LSS tube housing and removable 316LSS elements polished to a mirror finish. Tri-clamp flange ends permit easy removal, cleaning and reinstallation.

OMEGA ® PVC and CPVC mixers, and OMEGA all stainless and carbon steel mixers, are designed for higher flow rates and installations involving 2½ to 18½ diameter piping systems. Many standard models provide complete turbulent flow mixing at low pressure drop. Housing ends are 150# flanges. Special configurations to your specifications available.

Please downlowd PDF below for complete product specifications
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Quick Ship
FMX7222
202.00
Availability: 4 weeks
RoHS compliant
.687" DIA, 3/4" Ends FNPT, PVC
Quick Ship
FMX7232
206.00
Availability: 1 week
RoHS compliant
.906" DIA, 1" Ends FNPT, PVC
Quick Ship
FMX7251
244.00
Availability: 4 weeks
RoHS compliant
2.05" DIA, 2" Ends FNPT, PVC
Quick Ship
FMX7221-CP
Consult Sales
Availability:

RoHS compliant
.687" DIA, 3/4" Ends FNPT, CPVC
Quick Ship
FMX8118-AC
Consult Sales
Availability:

RoHS compliant
Polyacetal high viscosity mixing elements 10/Pk
Quick Ship
FMX8234
86.00
Availability: 1 week
RoHS compliant
Polyacetal disposable spiral mixers 10/Pk
Quick Ship
FMX8451S
187.00
Availability: 4 weeks
RoHS compliant
.37" ID, 1/4" Ends MNPT, 316SS Elements
Quick Ship
FMX8452S
258.00
Availability: 4 weeks
RoHS compliant
.37" ID, 1/4" Ends MNPT, 316SS Elements
Quick Ship
FMX8462S
276.00
Availability: 4 weeks
RoHS compliant
.51" ID, 3/8" Ends MNPT, 316SS Elements
Quick Ship
FMX8481S
240.00
Availability: 4 weeks
RoHS compliant
.64" ID, 1/2" Ends MNPT, 316SS Elements
Quick Ship
FMX8482S
321.00
Availability: In Stock
RoHS compliant
.64" ID, 1/2" Ends MNPT, 316SS Elements
Quick Ship
FMX8412S
285.00
Availability: 1 week
RoHS compliant
.80" ID, 3/4" Ends MNPT, 316SS Elements
Quick Ship
FMX8413S
267.00
Availability: 4 weeks
RoHS compliant
1.06" ID, 1" Ends MNPT, 316SS Elements
Quick Ship
FMX8414S
440.00
Availability: 1 week
RoHS compliant
1.06" ID, 1" Ends MNPT, 316SS Elements
Quick Ship
FMX8415S
500.00
Availability: 4 weeks
RoHS compliant
1.61" ID, 1 1/2" Ends MNPT, 316SS Elements
Quick Ship
FMX9604
253.00
Availability: 4 weeks
RoHS compliant
21 Mixing Elements, 0.540 L Factor to Calc. Pressure Drop
Quick Ship
FMX9605
280.00
Availability: 4 weeks
RoHS compliant
27 Mixing Elements, 0.700 L Factor to Calc. Pressure Drop
Quick Ship
FMX9608
285.00
Availability: 1 week
RoHS compliant
27 Mixing Elements, 0.110 L Factor to Calc. Pressure Drop
Quick Ship
FMX9611
380.00
Availability: 1 week
RoHS compliant
32 Mixing Elements, 0.077 L Factor to Calc. Pressure Drop
All amounts shown in EUR
Note: Comes complete with operator's manual.
