High Performance Flow Sensors

FP-2540/FP-3-1500 Series

High Performance Flow Sensors FP-2540/FP-3-1500 Series | FP-2540/FP-3-1500 Series

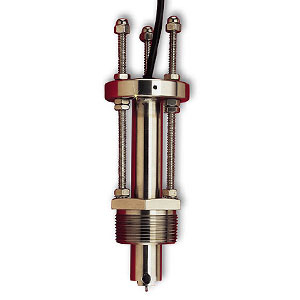

High Performance Flow Sensors FP-2540/FP-3-1500 Series

813,13 FP-2541

CE
  • Rugged 316 Stainless Steel Construction
  • Flow Rates as Low as 0.3 fps
  • Installs in a Variety of Pipe Sizes
  • No Magnets in Process Fluid
  • Hot-Tap Version Removable Without Shutdown
  • Uses Standard Pipe Connections
Turbine and Paddle Wheel Flowmeters - View related products

Description

The FP-2540 and FP-3-1500 Series offer the added strength and corrosion resistance of stainless steel for applications requiring low velocity measurement. Unique internal circuitry eliminates the need for magnets in the process fluid, enabling lower flow measurement while maintaining the advantages of insertion-type sensor design. The sensor’s unique rotor/bearing design offers low flow measuring capability with increased reliability.

SPECIFICATIONS
Output Signal: Open collector, sinking
Output Frequency: 15 Hz per fps
Operating Range: 0.3 to 20 fps
Pressure/Temperature: With standard
FKM O-rings: 250 psi @ 82°C (180°F)
With optional EPR O-rings: 250 psi @ 100°C (212°F)
Power Requirements: 5 to 24 Vdc
Pipe Size Range:
   FP-2540: 1.5 to 24"
   FP-3-1500-2X: 1.5 to 36"
Repeatability: ±0.5% of full range
Linearity: ±1% of full range
MATERIALS
Sensor Fitting: 316 SS
O-rings: FKM (EPR optional)
Rotor: CD4MCu
Rotor Bearings: PEEK
Cable Type: Twisted pair with foil shield
Cable Length: 7.6 m (25'); 305 m (1000') max
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
FP-2541
813,13
Availability: 1 week

High performance flow sensor with 1.5" NPT thread
FP-3-1500-2B
1.115,14
Availability: 9 weeks

Hot-tap flow sensor with 1.5" NPT thread
FP-3-1500-302
€670,28
Availability: 13 weeks

Hot-tap installation tool
FP-3-2540-321
€216,67
Availability: 9 weeks

Replacement rotor and pin for units with serial numbers with "A"
FPM-5000-SCAK
€74,60
Availability: 7 weeks

Sensor Conduit Adaptor Kit
All amounts shown in EUR
Note: Comes complete with operator’s manual
Ordering Example: (1) FP-2541 high performance flow sensor with 1.5" NPT thread, $397., €813,13
