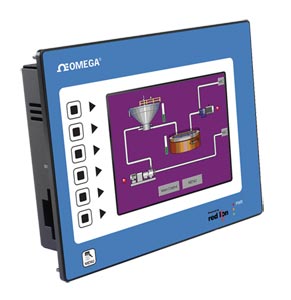

8" Web Enabled Graphic LCD Operator Interface Terminal

G308 Series

8

8" Graphic LCD Operator Interface Terminal

See All Models Below

2 year warranty CE
  • 7.5" DSTN or 8.4" TFT Color VGA 640 x 480 Pixel LCD
  • Resistive Analog Touchscreen
  • 3 Serial Ports, Expandable to 5
  • 10 Base-T/100 Base-Tx Ethernet Port Provides Networking Capability: Runs Four Ethernet Protocols Simultaneously
  • Provides IT-Ready Data Logging
  • Webserver Provides Worldwide Access to Data
  • Extensive Built-In Driver List Allows Easy Data Mapping to PLCs, PCs, Motion Controllers, and SCADA Systems
  • Easy Control of Omega Stepper Motors and Drives (STM Series, 1240i, 3540i, ST Series, STAC6)

Description

The G308 Operator Interface Terminal combines unique capabilities normally expected from high-end units with a very affordable price. The G308 is able to communicate with many different types of hardware using high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100 Base-TX communications. In addition, the G308 features USB for fast downloads of configuration files and access to trending and data logging. A CompactFlash socket is provided so that Flash cards can be used to collect your trending and data logging information as well as to store larger configuration files. In addition to accessing and controlling of external resources, the G308 allows a user to easily view and enter information. Users can enter data through the touchscreen or front panel 7-button keypad. All G3 series HMIs include a web server, trending, data logging, and a built-in "C" language-like editor and compiler for writing your own control functions.

Click here to download G308 user manuals


Omega offers a complete line of Web Enabled Operator Interfaces. See the Related Links section below for other models in this family.


Serial cables for G3 HMI, Data Station Plus, and CSMSTR series
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
G308C100
Consult Sales
Availability:


7.5' color LCD operator interface with DSTN touchscreen, 640 x 480, 7-button keypad, Crimson3 compatible
G308A000
Consult Sales
Availability:


8.4' color LCD operator interface with TFT touchscreen, 640 x 480, 7-button keypad, Crimson2 compatible
G308A210
Consult Sales
Availability:


8.4' color LCD operator interface with TFT touchscreen, 640 x 480, 7-button keypad, dual USB ports, Crimson3 compatible
G308A230
3,150.00
Availability: 1 week

8.4' color LCD operator interface with TFT touchscreen, 640 x 480, 7-button keypad, dual USB ports, dual Ethernet ports, Crimson3 compatible
Accessories
G3CF002G
Consult Sales
Availability:


2 GB compact flash card (industrial grade 2 million write cycles)
SFCRM200
Consult Sales
Availability:


Crimson2 programming software, manual and USB cable
PSDR0200
Consult Sales
Availability:


DIN rail power supply, 24 Vdc, 2 A
CBLPROG0
Consult Sales
Availability:


RS232 programming cable
CBLUSB00
€45.15
Availability: 1 week

USB programming cable (included with SFCRM200)
G3FILM08
€101.27
Availability: 1 week

Pack of ten protective films for G308 or G308A
G3RS0000
Consult Sales
Availability:


Two port RS232/485 (isolated) option card
G3PBDP00
Consult Sales
Availability:


Profibus option card
G3DN0000
Consult Sales
Availability:


DeviceNet option card
G3CN0000
Consult Sales
Availability:


CANopen option card
All amounts shown in EUR
Note: Comes with panel gasket, template for panel cutout, hardware packet for mounting unit into panel, terminal block for connecting power and operator’s manual.


Software:

Download G3 Series Crimson 2 Programming Software
Download G3 Series Crimson 3 Programming Software
