Miniature Load Cells - Surface Mount Style

LCM204 and LCM214 Series

High Accuracy Miniature Load Cells | LCM204 and LCM214 Series

High Accuracy Miniature Load Cells

545,00 LCM214-100N

CE
  • Miniature Load Cells with 5-Point NIST Traceable Calibration and
    59 kOhm Shunt Data Included
  • High Accuracy
  • 1% Interchangeability
  • Miniature Package for Test Stands & Difficult Locations
  • Designed to Be Mounted on a Flat Surface

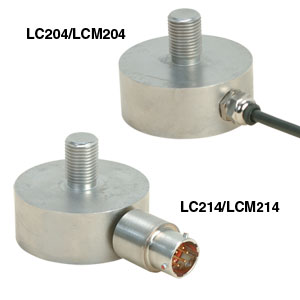

  • LCM204 Cable Style, LCM214 Connector Style

Description

Find how a load cell.works on this link.

The Load cells of the LCM204 and LCM214 Series are designed to be surface mounted with the load applied through the mounting stud. The high linearity (0.15%) and all stainless steel construction of the LCM204 make it ideal for industrial and commercial weighing and force measuring applications.

The LCM204 & LCM214 are also available in standard configurations, with 0-25 to 0-10,000 lb ranges and standard threads. Please see the LC204 for complete details, or contact our Sales department for more information.

SPECIFICATIONS
Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V ±1%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity: ±0.15% FSO
Hysteresis: ±0.1% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Protection Class: IP65
Thermal Effects:
   Zero: 0.0045% FSO/°F
   Span: 0.009% FSO/°F
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 Ω minimum
Output Resistance: 350 ±10 Ω
Construction: Stainless steel
Electrical: 3 m of 4-core screened cable
LC214/LCM214 Mating Connector: PT06F10-6S-R, sold separately
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
CABLE STYLE LOAD CELLS
Quick Ship
LCM204-100N
595.00
Availability: 9 weeks

Universal Load Cell, 100 N range
Quick Ship
LCM204-200N
560.00
Availability: 1 week

Universal Load Cell, 200 N range
Quick Ship
LCM204-500N
595.00
Availability: 9 weeks

Universal Load Cell, 500 N range
Quick Ship
LCM204-1KN
560.00
Availability: 1 week

Universal Load Cell, 1,000 N range
Quick Ship
LCM204-2KN
595.00
Availability: 9 weeks

Universal Load Cell, 2,000 N range
Quick Ship
LCM204-5KN
595.00
Availability: 11 weeks

Universal Load Cell, 5,000 N range
Quick Ship
LCM204-10KN
560.00
Availability: 11 weeks

Universal Load Cell, 10,000 N range
Quick Ship
LCM204-20KN
560.00
Availability: 11 weeks

Universal Load Cell, 20,000 N range
Quick Ship
LCM204-50KN
560.00
Availability: 1 week

Universal Load Cell, 50,000 N range
CONNECTOR STYLE LOAD CELLS
Quick Ship
LCM214-100N
545.00
Availability: 9 weeks

Universal Load Cell, 100 N range
Quick Ship
LCM214-200N
545.00
Availability: 9 weeks

Universal Load Cell, 200 N range
Quick Ship
LCM214-500N
545.00
Availability: 9 weeks

Universal Load Cell, 500 N range
Quick Ship
LCM214-1KN
545.00
Availability: 9 weeks

Universal Load Cell, 1,000 N range
Quick Ship
LCM214-2KN
545.00
Availability: 11 weeks

Universal Load Cell, 2,000 N range
Quick Ship
LCM214-5KN
545.00
Availability: 9 weeks

Universal Load Cell, 5,000 N range
Quick Ship
LCM214-10KN
545.00
Availability: 9 weeks

Universal Load Cell, 10,000 N range
Quick Ship
LCM214-20KN
545.00
Availability: 9 weeks

Universal Load Cell, 20,000 N range
Quick Ship
LCM214-50KN
545.00
Availability: 9 weeks

Universal Load Cell, 50,000 N range
ACCESSORY
Quick Ship
PT06F10-6S-R
€26.50
Availability: 1 week

Mating connector for LCM214
Quick Ship
MREC-M12F
€47.00
Availability: 1 week

Rod end for LCM204 & LCM214
Quick Ship
TXDIN1600S
€175.00
Availability: In Stock

DIN Rail Mounted Signal Conditioner/Transmitter with Excitation & Remote Tare Input. 10-48 Vdc powered
All amounts shown in EUR
Note: All LCM204 and LCM204 are supplied with a 5-point NIST traceable calibration.
Ordering Example: (1) LCM204-1KN 1,000 N Cable style load cell, €560.00
