SPECIFICATIONS Excitation: 10 Vdc (15 V max) Output : 10 kg and below = 2 mV/V ±0.25% 20 kg and up = 3 mV/V ±0.25% 5-Point Calibration: 0%, 50%, 100%, 50%, 0% (Tension) Linearity: 10 kg and below = ±0.20% FSO 20 kg and up = ±0.10% FSO Hysteresis: ±0.10% FSO Repeatability: 10 kg and below = ±0.10% FSO 20 kg and up = ±0.03% FSO Zero Balance: ±1% of FSO Operating Temperature Range: -54 to 127°C (-65 to 260°F) Compensated Temperature Range: 16 to 71°C (60 to 160°F) Thermal Effects: Zero: 0.0036% FSO/°C
Span: 0.0036% FSO/°C Safe Overload: 150% of Capacity Ultimate Overload: 300% of Capacity Input Resistance: 350 ±10 Ohms Output Resistance: 350 ±10 Ohms FS Deflection: .025 to .076 mm typical Construction: 17-4 PH Stainless Steel Electrical: 2,500 kg or less: DT02H-10-6P, >2500 kg: MS3102E-14S-6P (or equiv) Mating Connector (Included): 2500 kg or less: PT06F10-6S-R, >2500 kg: MS3102E-14S-6S (or equiv)
The LCMHD is also available in imperial configurations, with ranges from 0-5 to 0-500,000 lb and imperial threads.
Please see the LCHD for complete details, or contact our Sales department for more information.

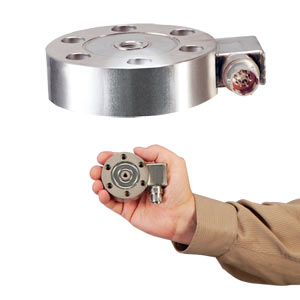

† All amounts shown in EUR Ordering Example: (1) LCMHD-2K Low profile tension/compression load cell with ±2000 kg force range, €830,00
