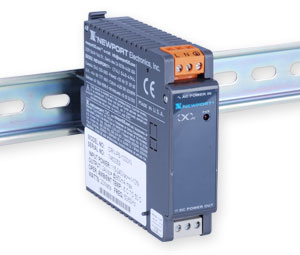

Load Cell Excitation Power Supply

FAR-1

Load Cell Excitation | FAR-1

Load Cell Excitation

127,00 FAR-1-220

1 year warranty CE RoHS
  • DIN Rail Mount
  • 10 V dc 250 mA Output with Sense for Load Cell Excitation

Description

Designed to power up to four 350Ω load-cells in parallel at 10 Vdc with sense terminals to compensate for errors due to lead resistance.
Specifications
Input Voltage: 115 or 230 Vac +/- 10% (specify)
Input Frequency: 50/60 Hz
Output Voltage : 10 Vdc
Output Adjustment: 6% by internal trimmer
Output Current: 250 mA max.
Output Ripple @ Imax: 0.02% Typical
Load Regulation: 0.1%
Tempco: 0.01%/°C from 0 to 60°C
Lead Wire Res. Comp: 10Ω max.
Operating Temp. : 0 to 60°C
Dimensions (mm): 75h x 45w x 110d
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Quick Ship
LP-PS-1524
€49,00
Availability: In Stock
RoHS compliant
DIN rail mount 24Vdc power supply. 15W, 0.63 Amp, 25mm wide. Powered by 85 to 260 Vac, 47 to 63 Hz
Quick Ship
FAR-1-220
127,00
Availability: In Stock
RoHS compliancy undetermined
10V 250mA DIN rail mount dc power supply with excitation sense. 230Vac powered
Quick Ship
FAR-1
127,00
Availability: 6 weeks
RoHS compliant
10V 250mA DIN rail mount dc power supply with excitation sense. 115Vac powered
All amounts shown in EUR
