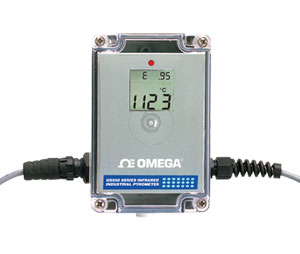

High Temperature Non-Contact Infrared Thermometer/Transmitter

OS555A Series

High Temperature Non-Contact Infrared Thermometer/Transmitter | OS555A Series

865,00 OS555A-V1

2 year warranty CE
  • Measure from 538 to 2482°C (1000 to 4500°F)
  • See Thru Glass Window Applications
  • 1% Rdg Accuracy
  • 110:1 Field of View
  • Voltage/Current Analog Output
  • Fast 100 ms Response Time
  • Backlit LCD
  • Adjustable Emissivity
  • High/Low Alarms
  • Data Storage and Logging
  • RS232 Communications- Free User Software Included
  • Available with NEMA 4 (IP65) Plastic or Aluminum Housing, or with No Case for OEM Applications

Description

More information about how a Infrared Thermometer.

works in this link.

     The OMEGA OS555A Series industrial high performance thermometer/transmitters offer a high temperature range of 538 to 2482ºC (1000 to 4500ºF), 110 to 1 optical field of view, any voltage or current analog output to feed directly to panel meters, recorders, temperature/ process controllers, data loggers, and data acquisition systems. It also offers adjustable Emissivity, high and low alarm outputs, PC serial interface, temperature data logging in real-time, and fast response time of 100 msec.
     These ruggedly designed units are ideal for high temperature measurement and see through glass window applications.

SPECIFICATIONS
General:
Range: 538 to 2482°C (1000 to 4500°F)
Accuracy: ±1% rdg to 1093°C (2000°F); ±2% rdg for higher temperatures; 25°C ambient, 0.95 Emissivity
Repeatability: ±(1% rdg + 1 digit)
Spectral Response: 2 to 2.5 microns
Emissivity: 0.10 to 1.00 in 0.01 steps
Field of View: 110 to 1
Response Time: 100 ms, 0 to 63.5% of final value
Display: Backlit LCD
Analog Output: 1 mV/degree, 0 to 5 Vdc or 4 to 20 mA
Alarms: High and low; red LED and audible indicators; two 100 mA current drives for external relays
Power: 8 to 24 Vdc, 80 mA
PC Interface: RS232, 2-way

Environmental Specifications:
Rating: NEMA 4 (IP65); sensor head and plastic or aluminum electronics enclosure
Operating Ambient: 0 to 50°C (32 to 122°F) electronics and standard sensing head; 85°C (185°F) max temp for sensing head with water cooled jacket

Physical Dimensions:
Sensing Head: 109 L x 41 OD mm (4.3 x 1.63"); 1.5-20 thread
Electronics, Plastic Case: 120 H x 80 W x 51 L mm (4.75 x 3.15 x 2")
Electronics, Aluminum Case: 115 H x 90 W x 56 L mm (4.5 x 3.5 x 2.2")
Connections: 4.5 m (15') sensor head and power/output cables included
Weight: 0.45 kg (12 oz) sensing head; 1.2 kg (42.3 oz) plastic case Laser Sighting

Laser Sighting:
Wavelength: 650 nm, red
Operating Distance: Up to 12 m (40')
Max Laser Power Output: Less than 1 mW
Classification: FDA Class II Laser product; European Class 2
Beam Diameter: 5 mm
Operating Ambient: 0 to 50°C (32 to 122°F)

PLEASE REVIEW PRODUCT SPEC SHEET FOR COMPLETE PRODUCT SPECIFICATIONS.
CONTACT TEMPERATURE ENGINEERING FOR ADDITIONAL PRODUCT INFORMATION
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
OS555A-MA
865,00
Availability: 3 weeks

Plastic (NEMA 4) Enclosure, 4-20 mA output
Quick Ship
OS555A-V1
865,00
Availability: 3 weeks

Plastic (NEMA 4) Enclosure, 0-5 Vdc output
Quick Ship
OS555A-MV
865,00
Availability: 3 weeks

Plastic (NEMA 4) Enclosure, 1mV/degree output
Quick Ship
OS555AM-MA
910,00
Availability: 3 weeks

Aluminum (NEMA 4) Enclosure, 4-20 mA output
Quick Ship
OS555AM-V1
910,00
Availability: 3 weeks

Aluminum (NEMA 4) Enclosure, 0-5 Vdc output
Quick Ship
OS555A-MA-BB
Consult Sales
Availability:


No Enclosure (for OEM Applications), 4-20 mA output
Quick Ship
OS555A-V1-BB
810.00
Availability: 3 weeks

No Enclosure (for OEM Applications), 0-5 Vdc output
Accessories
Quick Ship
OS550-AP
€65.00
Availability: In Stock

Air purge collar
Quick Ship
OS550-WC
€197.00
Availability: 1 week

Air/water cool jacket
Quick Ship
OS550-MF
€65.00
Availability: 3 weeks

Mounting flange
Quick Ship
OS550-MB
€35.50
Availability: In Stock

Right angle mounting bracket
Quick Ship
OS550-MN
€15.25
Availability: In Stock

Mounting nut
Quick Ship
OS550-LS
€197.00
Availability: 1 week

Laser sighting**
Quick Ship
CAL-3-IR-X
Consult Sales
Availability:


NIST calibration certification for over 1000°F temp
Quick Ship
PSR-24S
€62.00
Availability: 1 week

Regulated 24 Vdc @ 400 mA supply, 90 to 264 Vac input, screw terminal
Quick Ship
PSR-24L
€62.00
Availability: 1 week

Regulated 24 Vdc @ 400 mA supply, 90 to 264 Vac input, stripped leads
Quick Ship
TX8-100
€93.00
Availability: 1 week

Power/output extension cable, 30 m (100')
Quick Ship
OM-CONV-USB
€18.25
Availability: In Stock

RS232 to USB interface converter
Quick Ship
OS550A-PCAB-15
€45.50
Availability: 1 week

Power/output cable connector, 4.5 m (15')
Quick Ship
OS550A-PCAB-100
€131.00
Availability: 3 weeks

Power/output cable connector, 30 m (100')
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electronics Enclosure select from:
Nothing(leave field blank) for Plastic or No Enclosure
M for Aluminum

(2) Analog Output Signal select from:
MA for 4 to 20 mA
V1 for 0 to 5 Vdc
MV for 1mV/degree

(3) OEM Options select from:
Nothing(leave field blank) for Non-OEM
BB for No Enclosure
Note: All combinations may not be valid, check spec sheet for valid part numbers.
