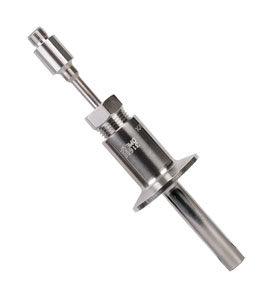

Hygienic RTD Thermowell and Removable Pt100 Sensor with M12 Connector for use in CIP Clean-In-Place Processes

PRS-TW-M12 Series Hygienic RTD Sensors

^€324,21 PRS-3-100-A-TW-0163-D1-M12

Clean-In-Place Design for Use in Food, Dairy and Pharmaceutical Processes
Standard Mounting Cap is a 1½" 16AMP Tri-Grip^TM (Tri-Clamp^® Compatible) Design, Other Cap Sizes and Styles are Available
Removable Probe Assembly is Spring Loaded Into the Thermowell for Good Thermal Response
Available with Standard 1⁵⁄8, 2½, 4½, 7½, and 10½" Thermowell Immersion Lengths, Other Lengths Available
Sensor Includes 4-Wire M12 Connector Plug for Attachment to Process Instrumentation
Wetted Surfaces are 316L Stainless Steel, Surface Finish = 32 Microinch or Better
4-Wire, Pt100, Class A Platinum RTD Sensor (100.00 Ω0.06 ± at 0°C) Standard
Compatible with 3-Wire and 2-Wire RTD Instruments

Description

Click on this link if you need more information about Sanitary Sensors.

This Pt100 RTD sensor is designed for use in sanitary or Clean-In-Place (CIP) applications where the use of a thermowell assembly is preferred over direct immersion sensors. The thermowell includes a 1½", 16AMP cap feature for easy installation using industry standard gaskets and clamps. The spring loaded RTD probe can be removed from the thermowell without exposing the system to ambient conditions for calibration or replacement. This sensor includes a 4-Pin, M12 Connector for easy installation using an extension cable.

Sensor Specifications Include:

316L stainless steel process wetted surfaces with surface finishes of 32 microinches or better.

Immersion lengths of 1⁵⁄8, 2½", 4½", 7½, and 10½" are available from stock, with others available.

Sensor Output is a 4-wire, 100 ohm, Class A, Platinum RTD meeting the requirements of IEC 60751.

These sensors can be used with 2-wire or 3-wire systems see information below.

Insulation resistance values of 100 megohms minimum at 100 VDC.

These sensors are supplied standard as 4-wire assemblies with 4-pin connectors.
When used in 3-wire applications, use pins A, B and C as shown in the wiring detail below.
When used in 2-wire systems, connect one wire to pins A or B, and the other wire to pins C or D as shown below.

Wiring Diagram

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

PRS-3-100-A-TW-0163-D1-M12

€324,21

Availability: 7 weeks

Removable Pt100 RTD sensor with 1½" 16AMP cap, 1⁵⁄8" immersion length (U dimension) thermowell, spring loaded with M12 connector

PRS-3-100-A-TW-0250-D1-M12

€346,02

Availability: 7 weeks

Replaceable Pt100 RTD sensor with 1½" 16AMP cap, 2½" immersion length (U dimension) thermowell, spring loaded with M12 connector

PRS-3-100-A-TW-0450-D1-M12

€377,18

Availability: 7 weeks

Replaceable Pt100 RTD sensor with 1½" 16AMP cap, 4½" immersion length (U dimension) thermowell, spring loaded with M12 connector

PRS-3-100-A-TW-0750-D1-M12

€437,07

Availability: 7 weeks

Replaceable Pt100 RTD sensor with 1½" 16AMP cap, 7½" immersion length (U dimension) thermowell, spring loaded with M12 connector

PRS-3-100-A-TW-1050-D1-M12

€459,80

Availability: 7 weeks

Replaceable Pt100 RTD sensor with 1½" 16AMP cap, 10½" immersion length (U dimension) thermowell, spring loaded with M12 connector

Order By Part Number

Part Number

Qty

Part Number

Qty

† All amounts shown in EUR
Note: For other cap sizes or styles, other immersion lengths, or for thermistor versions of this product, please contact Sales.

Ordering Example: (1) PRS-3-100-A-TW-0163-D1-M12 Removable 4-wire Pt100 RTD sensor (100 Ω at 0°C, Class A accuracy) spring loaded in a 1½, €324.21

Part Number Builder

Build Your Part Number Below

	(1)		(2)
PRS-3-		-A-TW-		-D1-M12

Option Descriptions:

(1) Nominal Element Resistance select from:
100 for 100 ohm @ 0 C (standard)
1000 for 1 kohm @ 0 C

(2) Insertion Length select from:
0163 for 1-5/8" insertion (2-1/2" well stem length)
0250 for 2-1/2" insertion (4" well stem length)
0450 for 4-1/2" insertion (6" well stem length)
0750 for 7-1/2" insertion (9" well stem length)
1050 for 10-1/2" insertion (12" well stem length)

Note: All combinations may not be valid, check spec sheet for valid part numbers.
