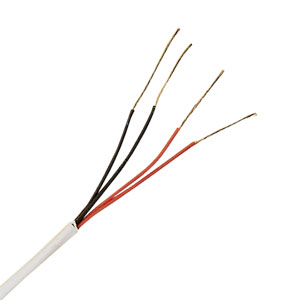

RTD Extension Wire

See All Models Below

PLACE ORDER

Available with PFA, Fiberglass or PVC Insualtion and Outer Jacket
#24 or #26 AWG Stranded Nickel Plated Copper Conductors Available in Most Styles
Red/Black or Red/White Color Codes Available in Most Styles
Available with Optional Stanless Steel Overbraid
Cable Available in 25, 50, 100, 200, 500 and 1000 Foot Spools Standard

Wire: Thermocouple, RTD, Thermistor and Hook-Up - View related products

Description

This cable is great for manufacturing sensors or for use as extension wire. Available in 2, 3 and 4 wire constructions, two color codes (red/black or red/white), three insulation and jacketing materials (PFA, Fiberglass and PVC) and three conductor sizes (#20 AWG Solid, #24 or #26 AWG Stranded) this cable will work with a wide variety of applications. Standard spool lengths include 25, 50, 100, 200, 500 and 1000 feet.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

#26 AWG Stranded Nickel Plated Copper Conductors, PFA Insulated, PFA Jacketed Cable, Red and White Color Code

EXTT-4CUI-26S-1000

€1,137.55

Availability: 3 weeks

4 Conductor, 2 Red, 2 White, 1000'

EXTT-3CUI-26S-500

€531.64

Availability: 3 weeks

3 Conductor, 2 Red, 1 White, 500'

#24 AWG Stranded Nickel Plated Copper, PFA Insulated, PFA Jacketed Cable, Red and White Color Code

EXTT-3CUI-24S-1000

€1,070.16

Availability: 3 weeks

3 Conductor, 2 Red, 1 White, 1000'

EXTT-3CUI-24S-500

€559.02

Availability: 3 weeks

3 Conductor, 2 Red, 1 White, 500'

#24 AWG Stranded Nickel Plated Copper, PFA Insulated, PFA Jacketed Cable, Red and White Color Code and SST Overbraid

EXTT-3CUI-24S-SB-1000

€1,430.00

Availability: 5 weeks

3 Conductor, 2 Red, 1 White, 1000'

EXTT-4CUI-24S-SB-500

€790.07

Availability: 3 weeks

4 Conductor, 2 Red, 2 White, 500'

#26 AWG Stranded Nickel Plated Copper, PFA Insulated, PFA Jacketed Cable, Red and Black Color Code

EXTT-3CU-26S-1000

€1,029.43

Availability: 3 weeks

3 Conductor, 1 Red, 2 Black, 1000'

EXTT-4CU-26S-1000

€1,116.99

Availability: 3 weeks

4 Conductor, 2 Red, 2 Black, 1000'

#26 AWG Stranded Nickel Plated Copper, Fiberglass Insulated, Fiberglass Jacketed Cable, Red and White Color Code

EXGG-3CUI-26S-500

€313.87

Availability: 3 weeks

3 Conductor, 2 Red, 1 White, 500'

EXGG-4CUI-26S-1000

€708.51

Availability: 11 weeks

4 Conductor, 2 Red, 2 White, 1000'

#24 AWG Stranded Nickel Plated Copper, Fiberglass Insulated, Fiberglass Jacketed Cable, Red and White Color Code

EXGG-3CUI-24S-1000

€617.07

Availability: 7 weeks

3 Conductor, 2 Red, 1 White, 1000'

EXGG-3CUI-24S-SB-500

€487.57

Availability: 3 weeks

3 Conductor, 2 Red, 1 White, 500'

#24 AWG Stranded Nickel Plated Copper, Fiberglass Insulated, Fiberglass Jacketed Cable, Red and White Color Code and Stainless Steel Overbraid

EXGG-2CUI-24S-SB-1000

€838.01

Availability: 3 weeks

2 Conductor, 1 Red, 1 White, 1000'

EXGG-3CUI-24S-SB-500

€487.57

Availability: 3 weeks

3 Conductor, 2 Red, 1 White, 500'

#26 AWG Stranded Nickel Plated Copper, Fiberglass Insulated, Fiberglass Jacketed Cable, Red and Black Color Code

EXGG-3CU-26S-1000

€581.03

Availability: 11 weeks

3 Conductor, 1 Red, 2 Black, 1000'

EXGG-4CU-26S-1000

€722.45

Availability: 3 weeks

4 Conductor, 2 Red, 2 Black, 1000'

#24 AWG Stranded Nickel Plated Copper, PVC Insulated, PVC Jacketed Cable, Red and Black Color Code

EXPP-2CU-24S-500

€316.37

Availability: 3 weeks

2 Conductor, 1 Red, 1 Black, 500'

EXPP-2CU-24S-1000

€631.23

Availability: 3 weeks

2 Conductor, 1 Red, 1 Black, 1000'

#24 AWG Stranded Nickel Plated Copper, PVC Insulated, PVC Jacketed Cable, Red and White Color Code

EXPP-2CUI-24S-100

€115.59

Availability: 3 weeks

2 Conductor, 1 Red, 1 White, 100'

EXPP-2CUI-24S-1000

€677.72

Availability: 3 weeks

2 Conductor, 1 Red, 1 White, 1000'

† All amounts shown in EUR
Note: For Stainless Steel Overbraid, add "-SB" to the end of the part number and $0.21/foot to the price.

Ordering Example: (1) EXGG-2CU-26S-50 50 Foot Spool of 2 Conductor #26AWG Sranded Nickel Plated Copper, Fiberglass Insulated (1 Black and 1 Red) with Fiberglass Overjacket., €46.88 plus (1) EXGG-4CUI-24S-200 200 Foot Spool of 4 Conductor #24AWG Sranded Nickel Plated Copper, Fiberglass Insulated (2 Red and 2 White) with Fiberglass Overjacket., €210.31 plus (1) EXTT-3CU-26S-100 100 Foot Spool of 3 Conductor #26AWG Sranded Nickel Plated Copper, PFA Insulated (2 Black and 1 Red) with PFA Overjacket., €179.85 plus (1) EXTT-3CUI-26S-500 500 Foot Spool of 3 Conductor #26AWG Sranded Nickel Plated Copper, PFA Insulated (2 Red and 1 White) with PFA Overjacket., €531.64, €46.88 + 210.31 + 179.85 + 531.64 = €968.68

Part Number Builder

Build Your Part Number Below

	(1)		(2)		(3)		(4)	(5)		(6)
EX		-		CU		-			-

Option Descriptions:

(1) Insulation Type select from:
TT for PFA Insulated & Jacketed
GG for Fiberglass Insulated & Jacketed
PP for PVC Insulated & Jacketed

(2) Number of Conductors select from:
2 for Two Conductor
3 for Three Conductor
4 for Four Conductor

(3) Color Code select from:
Nothing(leave field blank) for Red & Black Color Code
I for Red & White Color Code

(4) AWG select from:
20 for 20 AWG (EXGG-2CU Only)
24S for 24S AWG (EXPP Only)
26S for 26S AWG (EXGG and EXTT Only)

(5) Options select from:
Nothing(leave field blank) for None
-SB for Stainless Steel Overbraid

(6) Spool Length in Feet select from:
25 for 25 Feet
50 for 50 Feet
100 for 100 Feet
200 for 200 Feet
500 for 500 Feet
1000 for 1000 Feet

Note: All combinations may not be valid, check spec sheet for valid part numbers.
