IP66 304/316 Stainless Steel Enviroline® Enclosures for outdoor and wash down applications, 150 x 100 to 400 x 350 mm sizes

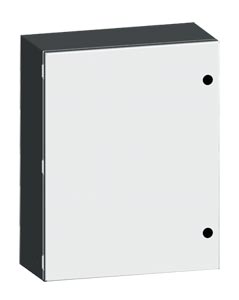

SCE-ELJSS Series Stainless Steel Electrical Enclosures

Stainless Steel Enclosures - Order online

^€271,36 SCE-604ELJSS

PLACE ORDER

1.6 mm thick Stainless Steel Type 304 and 316
Seams Continuously Welded and Ground Smooth
Oil-Resistant Gasket
Standoffs Provided for Mounting Optional Sub-panels
Doors Open 180º with Removable Hinges
Black Mini ¼ Turn Latches
Latches Are Opened or Closed with a Screwdriver
Mounting Feet, Sealing Washers and Hole Plugs Included
Earth Stud on Door and Body

Description

The SEC-ELJSS Series electrical enclosures are designed to house electrical controls, instruments and components in areas, which may be regularly hosed down or are in very wet or oily conditions. These electrical enclosures provide protection from dust, dirt, oil, and water. For outdoor application a drip shield is recommended.

Finish
Brushed finish on all exterior surfaces. Optional panels are powder coated white.

Protection Ratings
IEC 60529 IP 66
NEMA Type 4, 4X, 12 & 13
UL Listed Type 4, 4X &12
CSA Type 12, 4, & 4X

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

Electrical Enclosures - Subpanels sold separately

IP66 304 Stainless Steel Enclosures

SCE-604ELJSS

€271.36

Availability: 3 weeks

Height=6.00 Width=4.00 Depth=4.00

SCE-606ELJSS

€322.46

Availability: 3 weeks

Height=6.00 Width=6.00 Depth=4.00

SCE-806ELJSS

€304.30

Availability: 3 weeks

Height=8.00 Width=6.00 Depth=4.00

SCE-8066ELJSS

€347.00

Availability: 3 weeks

Height=8.00 Width=6.00 Depth=6.00

SCE-1008ELJSS

€435.72

Availability: 3 weeks

Height=10.00 Width=8.00 Depth=4.00

SCE-10086ELJSS

€506.66

Availability: 1 week

Height=10.00 Width=8.00 Depth=6.00

SCE-1210ELJSS

€569.41

Availability: 3 weeks

Height=12.00 Width=10.00 Depth=6.00

SCE-12108ELJSS

€607.95

Availability: 1 week

Height=12.00 Width=10.00 Depth=8.00

SCE-1212ELJSS

€643.95

Availability: 3 weeks

Height=12.00 Width=12.00 Depth=6.00

SCE-1412ELJSS

€660.79

Availability: 3 weeks

Height=14.00 Width=12.00 Depth=6.00

SCE-14128ELJSS

€733.30

Availability: 3 weeks

Height=14.00 Width=12.00 Depth=8.00

SCE-1614ELJSS

€774.04

Availability: 3 weeks

Height=16.00 Width=14.00 Depth=6.00

SCE-16148ELJSS

€871.12

Availability: 3 weeks

Height=16.00 Width=14.00 Depth=8.00

IP66 316 Stainless Steel Enclosures

SCE-604ELJSS6

€322.64

Availability: 3 weeks

Height=6.00 Width=4.00 Depth=4.00

SCE-606ELJSS6

€387.69

Availability: 3 weeks

Height=6.00 Width=6.00 Depth=4.00

SCE-806ELJSS6

€377.65

Availability: 3 weeks

Height=8.00 Width=6.00 Depth=4.00

SCE-8066ELJSS6

€434.50

Availability: 3 weeks

Height=8.00 Width=6.00 Depth=6.00

SCE-1008ELJSS6

€537.46

Availability: 3 weeks

Height=10.00 Width=8.00 Depth=4.00

SCE-10086ELJSS6

€613.88

Availability: 3 weeks

Height=10.00 Width=8.00 Depth=6.00

SCE-1210ELJSS6

€680.20

Availability: 3 weeks

Height=12.00 Width=10.00 Depth=6.00

SCE-12108ELJSS6

€760.84

Availability: 1 week

Height=12.00 Width=10.00 Depth=8.00

SCE-1212ELJSS6

€760.80

Availability: 3 weeks

Height=12.00 Width=12.00 Depth=6.00

SCE-1412ELJSS6

€824.97

Availability: 3 weeks

Height=14.00 Width=12.00 Depth=6.00

SCE-14128ELJSS6

€870.83

Availability: 3 weeks

Height=14.00 Width=12.00 Depth=8.00

SCE-1614ELJSS6

€907.51

Availability: 3 weeks

Height=16.00 Width=14.00 Depth=6.00

SCE-16148ELJSS6

€1,050.00

Availability: 3 weeks

Height=16.00 Width=14.00 Depth=8.00

Steel Sub-panels with White Powder Coat

SCE-6P4J

€7.48

Availability: 1 week

Steel sub-panel for 6x4 enclosure

SCE-6P6J

€9.48

Availability: 3 weeks

Steel sub-panel for 6x6 enclosure

SCE-8P6J

€11.25

Availability: 3 weeks

Steel sub-panel for 8x6 enclosure

SCE-10P8J

Consult Sales

Availability:

Steel sub-panel for 10x8 enclosure

SCE-12P10J

Consult Sales

Availability:

Steel sub-panel for 12x10 enclosure

SCE-12P12J

€23.37

Availability: 3 weeks

Steel sub-panel for12x12 enclosure

SCE-14P12J

€27.94

Availability: 3 weeks

Steel sub-panel for 14x12 enclosure

SCE-16P14J

€47.13

Availability: 3 weeks

Steel sub-panel for 16x14 enclosure

Pre-cut 35x7.5 mm DIN Rail - Lengths are Cut to Match Width of Sub-panels

DRTB-RAIL-4

€10.36

Availability: 1 week

Pre-cut DIN rail for 4" wide enclosure, actual width 2.75"

DRTB-RAIL-6

€9.50

Availability: 1 week

Pre-cut DIN rail for 6" wide enclosure, actual width 4.75"

DRTB-RAIL-8

€9.12

Availability: 1 week

Pre-cut DIN rail for 8" wide enclosure, actual width 6.75"

DRTB-RAIL-10

€10.36

Availability: 1 week

Pre-cut DIN rail for 10" wide enclosure, actual width 8.75"

DRTB-RAIL-12

€10.87

Availability: 1 week

Pre-cut DIN rail for 12" wide enclosure, actual width 10.75"

DRTB-RAIL-14/16

€12.40

Availability: 1 week

Pre-cut DIN rail for 14 or 16" wide enclosure, actual width 12.75"

Drip Shield Kits - screws and sealing washers included

SCE-DS12SS

€155.89

Availability: 3 weeks

12" wide drip shield

SCE-DS16SS

€185.35

Availability: 3 weeks

16" wide drip shield

Dead Front Panel Kits, includes panel and hardware

SCE-DFJ1008

€105.79

Availability: 3 weeks

Front panel kit for 10x8 enclosure

SCE-DFJ1210

€105.85

Availability: 1 week

Front panel kit for 12x10 enclosure

SCE-DFJ1212

€117.33

Availability: 3 weeks

Front panel kit for 12x12 enclosure

SCE-DFJ1412

€121.06

Availability: 3 weeks

Front panel kit for 14x12 enclosure

SCE-DFJ1614

€129.43

Availability: 3 weeks

Front panel kit for 16x14 enclosure

SCE-DFJ2016

€139.67

Availability: 3 weeks

Front panel kit for 20x16 enclosure

ACCESSORIES

POWER CORD-SE-M16

€17.27

Availability: 1 week

2.4 metre Power cable with M16 cable gland strain relief, 3 x 1.33 mm², 250 Vac max.

SCE-ELJMFKSS

€107.07

Availability: 3 weeks

Mounting Foot Kit for Wall Mounting, 4 mounts and fasteners per kit

Mini ¼ Turn Door Latches for Additional Security and Easy Access

SCE-MINIQLB

€78.00

Availability: 3 weeks

Black Non-locking Lever Knob

SCE-MINIQKLB

€123.03

Availability: 1 week

Black Key Locking Lever Knob

SCE-MINIQ6MS

€93.81

Availability: 1 week

Black 6mm Square with Hand Key (large)

† All amounts shown in EUR
