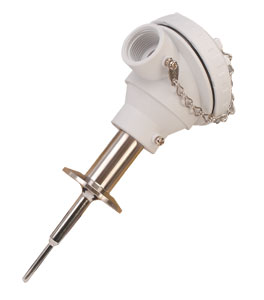

3-A Approved Sanitary Thermistor Sensor with Polypropylene Connection Head

THS-H-NB9W Series

3-A Approved Sanitary Thermistor Sensor With Polypropylene Connection Head | THS-H-NB9W Series

228,51 THS-10K-H-0300-D1-NB9W

  • 3-A Approved Design, Combined with a Mounting Flange Meeting the Requiremnets of ASME-BPE-2007, Assures Trouble-Free Cleanability and Interchangeability
  • Sensor Can Be Used in Sanitary, Hygienic and Clean-In-Place Food, Dairy, Beverage and BioPharmaceutical Processes
  • Process Connection is a 1½" 16AMP Tri-Grip™ (Tri-Clamp® Compatible) Standard Conforming to ASME BPE-2007, Other Cap Sizes and Styles are Available
  • Wetted Surfaces are 316L Stainless Steel, Surface Finish = 32 Microinch or Better
  • Sensors Include a Standard Duty ¼" (0.250") Diameter or
    3/8" to 3/16" Diameter Stepped Heavy Duty Probe
  • Standard Lengths Include 3, 4, 5 and 6" Probe Lengths, Other Lengths Available
  • 10kohm Thermistor Element (44006) Standard, 2252, 3000, 5000 and 30,000 ohm Thermistors Also Available.
  • Connection Head is White Screw Cap Style Polypropylene Standard, Stainless Steel Head Also Available
  • -80 to 150°C (-112 to 302°F) Temperature Range

Description

3-A approved The 3-A Approved OMEGA™ THS-S-NB9W and THS-H-NB9W Series Thermistor Sensors are designed for use in Sanitary or Hygienic Clean-in-Place applications in the Food, Dairy, Beverage and BioPharmaceutical industries. These sensors are manufactured with 316L stainless steel housings that meet the dimensional requirements of ASME BPE-2007 and 3-A Specification 74-05, and are welded and processed to provide a clean, smooth, 32 µinch or better surface finish in the wetted areas for easy cleaning.

In addition to the standard 1½-16AMP process connection, these can be provided in the following sizes and styles:
Process ConnectionModel Number Code
3/4"-16AMP-B1-
1" and 1½"-16AMP-D1-
2"-16AMP-E1-
2½"-16AMP-F1-
3"-16AMP-G1-
4"-16AMP-H1-










If you need a process connection that is not listed above, please contact our sales department for availability.

The probe stems are manufactured in two configurations; a standard ¼" diameter probe for standard duty service, and a stepped 3/8" to 3/16" probe design for good response times in heavy duty applications.

This sensor is available with either a white polypropylene screw-top connection head (NB9W) or a stainless steel screw top connectoion head (NB15) for connection to your process instrumentation. These sensors are also available in RTD and Thermocouple styles to accommodate any process input requirement. In addition to the standard 1½-16AMP flange design, this sensor can be provided in a wide variety of flange sizes and styles. If you need something a little (or a lot) different, we can accommodate your needs.

This sensor is stocked with the 10,000 Ω thermistor standard, but is available in any of the following resistances:

Sensor Code Resistance @ 25°C Element Series
2K 2252 Ω 44004
3K 3000 Ω 44005
5K 5000 Ω 44007
10K 10,000 Ω 44006
30K 30,000 Ω 44008

Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Standard Duty ¼" Diameter Probe Design With White Polypropylene Head
THS-10K-S-0300-D1-NB9W
174.93
Availability: 6 weeks

3in. Probe
THS-10K-S-0400-D1-NB9W
174.93
Availability: 6 weeks

4 in. Probe
THS-10K-S-0500-D1-NB9W
174.93
Availability: 6 weeks

5 in. Probe
THS-10K-S-0600-D1-NB9W
174.93
Availability: 6 weeks

6 in. Probe
Heavy Duty 3/8" to 3/16" Diameter Stepped Probe Design with White Polypropylene Head
THS-10K-H-0300-D1-NB9W
228.51
Availability: 6 weeks

3in. Probe
THS-10K-H-0400-D1-NB9W
228.51
Availability: 6 weeks

4in. Probe
THS-10K-H-0500-D1-NB9W
228.51
Availability: 6 weeks

5in. Probe
THS-10K-H-0600-D1-NB9W
228.51
Availability: 6 weeks

6in. Probe

Order By Part Number

Part Number
Qty
Part Number
Qty


All amounts shown in EUR
Note:
  • For other than the standard 1½-16AMP process connection, change "-D1-" in the model number to the code for the alternate process connection option listed above the "To Order" table and add $20 to the price
  • For standard duty probe lengths longer than 6", change "-0600" in model number to the required length (example: 12" = "-1200", 9¼" = "-0925") and add $1 per inch to the price (up to 24 inches).
  • For heavy duty probe lengths longer than 6", change "-0600" in model number to the required length (example: 12" = "-1200", 9¼" = "-0925") and add $2.50 per inch to the price (up to 24 inches).
  • For other thermistor elements, change the model number from "10K" to the desired sensor code as shown in the table above at no additional cost.
  • To order with a stainless steel connection head, change "NB9W" in the model number to "NB15" and add $37 to the price.
  • For probe lengths longer then 24 inches, please contact Customer Service.


  • Ordering Example: (1) THS-10K-H-0300-D1-NB9W Sanitary Sensor with 10KOhm Thermistor, 3/16 to 3/8, €228.51  plus (1) THS-10K-H-0300-D1-NB9W Sanitary Sensor with 10KOhm Thermistor, 3/16 to 3/8, €228.51, €228.51 + 228.51 = €457.02

    Part Number Builder

    Build Your Part Number Below
    Option Descriptions:


    (1) Thermistor Type select from:
    10K for 10000 Ohms at 25C
    2K for 2252 Ohms at 25C
    3K for 3000 Ohms at 25C
    5K for 5000 Ohms at 25C
    30K for 30000 Ohms at 25C

    (2) Probe Diameter select from:
    S for Standard Duty 1/4 inch
    H for Heavy Duty 3/8 to 3/16 inch stepped probe

    (3) Probe Length select from:
    0300 for 3 inch length
    0400 for 4 inch length
    0500 for 5 inch length
    0600 for 6 inch length

    (4) Sanitary Flange (Cap) Size select from:
    D1 for 1-1/2 inch Tri-Grip Flange (standard)
    B1 for 3/4 inch 16AMP Tri-Grip Flange
    E1 for 2 inch 16AMP Tri-Grip Flange
    F1 for 2-1/2 inch 16AMP Tri-Grip Flange
    G1 for 3 inch 16AMP Tri-Grip Flange
    H1 for 4 inch 16AMP Tri-Grip Flange

    (5) Protection Head select from:
    NB9W for White Polypropylene Head with Screw Cap (Standard)
    NB15 for Large Stainless Steel Head
    NB13 for Medium Stainless Steel Head (not 3A approved)
    NB16W for White Polypropylene Head with Flip Top (not 3A approved)
    Note: All combinations may not be valid, check spec sheet for valid part numbers.
