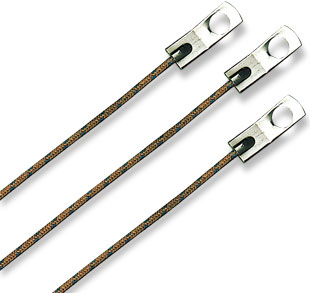

Bolt On Washer Thermocouple

WT SERIES

Surface thermocouple | WT SERIES

Surface thermocouple

€17,66 WTKI-14-M300

PLACE ORDER
  • J, K, T, and E Thermocouple
  • New Rugged Design
  • For M3.5, M4, M4.5 and M6 Screw Sizes
  • Made from 0.8 mm Dia. Glass-On-Glass or PFA-Insulated Class 1 Tolerance Wire
  • Stocked in 300 mm, 600 mm, 1.0 m, and 1.5 m Lengths with Stripped End Leads
  • Rated up to 480°C for Glass-On-Glass Insulation
  • Rated up to 260°C for PFA Insulation

    AVAILABLE OPTIONS
  • Special Lead Lengths
  • Thermocouple Connectors in lieu of Stripped End Leads

Description

Click on this link if you need more information about Thermocouple probes.

A versatile thermocouple assembly that easily mounts to a variety of surfaces. Suitable for a number of surface temperature measurement applications where fixed mounting is possible.

EXAMPLES OF POPULAR MODELS BELOW. PLEASE USE PART NUMBER BUILDER BELOW TO FIND SPECIFIC MODELS AVAILABLE

For complete product specifications see the pdf spec sheet link above

Model No.
300 mm Length 		Model No.
600 mm Length 		Model No.
1.0 M Length 		Model No.
1.5 M Length 		Washer Hole
Diameter mm 		Nominal Screw
Size
GLASS INSULATED
WT(*)I-6-M300 WT(*)I-6-M600 WT(*)I-6-1M WT(*)I-6-1.5M 3.68 M3.5
WT(*)I-8-M300 WT(*)I-8-M600 WT(*)I-8-1M WT(*)I-8-1.5M 4.32 M4
WT(*)I-10-M300 WT(*)I-10-M600 WT(*)I-10-1M WT(*)I-10-1.5M 4.95 M4.5
WT(*)I-14-M300 WT(*)I-14-M600 WT(*)I-14-1M WT(*)I-14-1.5M 6.60 M6
PFA-INSULATED
WT(*)I-6-M300-TT WT(*)I-6-M600-TT WT(*)I-6-1M-TT WT(*)I-6-1.5M-TT 3.68 M3.5
WT(*)I-8-M300-TT WT(*)I-8-M600-TT WT(*)I-8-1M-TT WT(*)I-8-1.5M-TT 4.32 M4
WT(*)I-10-M300-TT WT(*)I-10-M600-TT WT(*)I-10-1M-TT WT(*)I-10-1.5M-TT 4.95 M4.5
WT(*)I-14-M300-TT WT(*)I-14-M600-TT WT(*)I-14-1M-TT WT(*)I-14-1.5M-TT 6.60 M6
*Specify calibration: J, K, T or E. Stripped leads are standard.

Washer Dimensions
M3.5 and M4 screw size: 22 L x 6.5 mm W
M4.5 and M6 screw size: 25 L x 9 mm W
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
IEC Colour Coded Lead Wire

WTKI-6-M300
€17.66
Availability: 4 weeks

Washer Thermocouple, Type K, M3.5 screw, 300 mm length. glass braid insulated wire

WTKI-6-M600
€19.28
Availability: 4 weeks

Washer Thermocouple, Type K, M3.5 screw, 600 mm length. glass braid insulated wire

WTKI-6-1.5M
€26.29
Availability: 4 weeks

Washer Thermocouple, Type K, M3.5 screw, 1.5 m length. glass braid insulated wire

WTKI-8-M300
€17.66
Availability: 4 weeks

Washer Thermocouple, Type K, M4 screw, 300 mm length. glass braid insulated wire

WTKI-8-M600
€19.28
Availability: 4 weeks

Washer Thermocouple, Type K, M4 screw, 600 mm length. glass braid insulated wire

WTKI-8-1.5M
€26.29
Availability: 4 weeks

Washer Thermocouple, Type K, M4 screw, 1.5 m length. glass braid insulated wire

WTKI-14-M300
€17.66
Availability: 4 weeks

Washer Thermocouple, Type K, M6 screw, 300 mm length. glass braid insulated wire

WTKI-14-1M
€21.24
Availability: 4 weeks

Washer Thermocouple, Type K, M6 screw, 1 m length. glass braid insulated wire

WTKI-14-1.5M
€26.29
Availability: 4 weeks

Washer Thermocouple, Type K, M6 screw, 1.5 m length. glass braid insulated wire
ANSI Colour Coded Lead Wire
Click to expand/minimize a list of what others bought with theWTK-6-12
WTK-6-12
€17.66
Availability: 4 weeks

Washer Thermocouple, Type K, M3.5 screw, 12" length. glass braid insulated wire

WTK-6-12-TT
€17.66
Availability: 1 week

Washer Thermocouple, Type K, M3.5 screw, 12" length. pfa insulated wire

WTK-6-36
€21.24
Availability: In Stock

Washer Thermocouple, Type K, M3.5 screw, 36" length. glass braid insulated wire
Click to expand/minimize a list of what others bought with theWTK-6-60
WTK-6-60
€26.29
Availability: 1 week

Washer Thermocouple, Type K, M3.5 screw, 60" length. glass braid insulated wire
Click to expand/minimize a list of what others bought with theWTK-8-12
WTK-8-12
€17.66
Availability: 1 week

Washer Thermocouple, Type K, M4 screw, 12" length. glass braid insulated wire
Click to expand/minimize a list of what others bought with theWTK-8-24
WTK-8-24
€19.28
Availability: In Stock

Washer Thermocouple, Type K, M4 screw, 24" length. glass braid insulated wire
Click to expand/minimize a list of what others bought with theWTK-8-60
WTK-8-60
€26.29
Availability: 4 weeks

Washer Thermocouple, Type K, M4 screw, 60" length. glass braid insulated wire
Click to expand/minimize a list of what others bought with theWTK-14-24
WTK-14-24
€19.28
Availability: 4 weeks

Washer Thermocouple, Type K, M6 screw, 24" length. glass braid insulated wire
Click to expand/minimize a list of what others bought with theWTK-14-60
WTK-14-60
€26.29
Availability: 4 weeks

Washer Thermocouple, Type K, M6 screw, 60" length. glass braid insulated wire
† All amounts shown in EUR
 Note: To order with PFA-insulated lead wires, add suffix "-TT" to model no. No additional cost. Use part Number Builder below to order.
For custom lengths & configurations consult sales.
 Ordering Example: (1) WTJI-6-M300 Washer thermocouple, type J, M3.5 screw, 300 mm length. glass braid insulated wire, €16.19

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Thermocouple Type select from:
J for J Thermocouple
K for K Thermocouple
T for T Thermocouple (maximum temperature is 260°C regardless of insulation)
E for E Thermocouple

(2) Screw Size select from:
6 for M3.5 Screw Size
8 for M4 Screw Size
10 for M4.5 Screw Size
14 for M6 Screw Size

(3) Thermocouple Length select from:
M300 for 300 mm
M600 for 600 mm
1M for 1 m
1.5M for 1.5 m

(4) Insulation select from:
Nothing(leave field blank) for Glass Fibre
-TT for PFA
Note: All combinations may not be valid, check spec sheet for valid part numbers.
