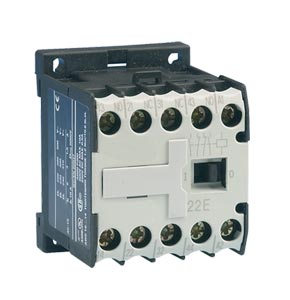

Mini IEC Contactors and Overload Relays

XTMC Series

Mini IEC Contactors and Overload Relays | XTMC Series

Mini IEC Contactors and Overload Relays

65,26 XTMC9A10A

  • FVNR (Full Voltage Non-Reversing) Contactors
  • Panel or Din Rail Mounting
  • Overload Relays Mount Directly to Mini Contactors
  • Test/Off Button and Trip Free Release on Overload Relays

Description

XT Miniature Controls includes nonreversing contactors, auxiliary contacts and mini overload relays. A wide range of applications is possible including small electrical motors from fractional to 5 hp (460 Vac) or up to 4 kW (400 Vac). Due to its compact size, the XT line of mini controls is best suited to be applied in light duty loads such as hoisting, packaging, material handling, heating, lighting and automation systems. XT mini contactors are a particularly compact, economic and environmentally friendly solution wherever control of small motors or loads is required. Front mounted snap-on auxiliary contacts for mini contactors are available with screw terminals in a variety of contact configurations. Auxiliary contact modules are standard with interlocked opposing contacts, except in the case of early make or late-break contacts. The XTOM overload relays are three-pole electromechanical motor circuit-breakers using bimetallic elements. They are suitable for monitoring both DC and AC currents. Type XTOM overload relays have been designed to be fitted directly on to XTMC contactors. In the event of overload tripping, the auxiliary contacts change over and disconnect the control voltage circuit from the corresponding contactor relay, and thus indirectly switch off the current to the motor being monitored. The XTOM relays are adjusted by means of a setting wheel to suit the motor current rating.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
IEC MINI CONTACTORS
XTMC9A10A
65.26
Availability: 1 week

Mini contactor 3P FVNR 8.8 A frame A 1 NO 110/50 120/60 AC coil
XTMC9A10T
65.26
Availability: 1 week

Mini contactor 3P FVNR 8.8 A frame A 1 NO 24/50 24/60 AC coil
ACCESSORIES
AUXILIARY CONTACTS
XTMCXFA02-5PK
Consult Sales
Availability:


5 pack of front mounted snap-on auxiliary contacts Seq. A, Frame A, 2 NC, 10 A
XTMCXFA11-5PK
Consult Sales
Availability:


5 pack of front mounted snap-on auxiliary contacts Seq. A, Frame A, 1 NO, 1 NC, 10 A
XTMCXFA22-5PK
Consult Sales
Availability:


5 pack of front mounted snap-on auxiliary contacts Seq. A, Frame A, 2 NO, 2 NC, 10 A
XTMCXFA40-5PK
Consult Sales
Availability:


5 pack of front mounted snap-on auxiliary contacts Seq. A, Frame A, 4 NO, 10 A
IEC MINI OVERLOAD RELAYS
XTOM1P6AC1
Consult Sales
Availability:


Mini OVLR Frame A, class 10, 1 to 1.6 A
XTOM2P4AC1
Consult Sales
Availability:


Mini OVLR Frame A, class 10, 1.6 to 2.4 A
XTOM004AC1
Consult Sales
Availability:


Mini OVLR Frame A, class 10, 2.4 to 4 A
XTOM006AC1
Consult Sales
Availability:


Mini OVLR Frame A, class 10, 4 to 6 A
XTOM009AC1
€64.21
Availability: 1 week

Mini OVLR Frame A, class 10, 6 to 9 A
XTOM012AC1
Consult Sales
Availability:


Mini OVLR Frame A, class 10, 9 to12 A
All amounts shown in EUR
