Manual Motor Protectors

XTPB and XTPR Series

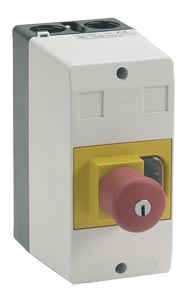

Manual Motor Protectors | XTPB and XTPR Series

Manual Motor Protectors

116,00 XTPB001BC1

CE
  • Visible Trip Indication
  • Class 10 Overload Protection
  • Manual Motor Protectors up to 25A
  • UL 508 Group Motor and Type E Compliant

Description

Manual Motor Protectors (MMPs) features a pushbutton or rotary ON/OFF manual disconnect, Class 10 adjustable bimetallic overload relay and fixed magnetic short circuit trip capability in one compact unit. The Frame B size (45 mm) for motors has FLA ratings up to 32A. The XTPB and XTPR MMPs are UL Listed under UL 508 as Manual Motor Protectors. They provide an economical solution for applications requiring simple manual starting and stopping of motors. When used as an MMP, they are typically installed in an enclosure. Many enclosures are offered as accessories for the MMPs. Separate short-circuit protective devices, such as circuit breakers or fuses, are wired ahead of the MMPs. The short-circuit protective device should be sized per the NEC code and should not exceed 400% of the maximum FLA dial setting of the MMP. A Group Motor Installation can be defined as more than one motor circuit protected by a single set of fuses or circuit breaker on a motor branch circuit. This eliminates the need for individual fuses or circuit breakers for each motor circuit. Substantial component cost savings, panel space savings and reduced wiring installation time can be achieved in Group Motor Installations. The MMPs are tested and listed for group installation. If remote operation is required, a magnetic contactor can be wired in series with the MMP. Manual Motor Protectors are selected based on the overload current range required for a given motor. This current range is determined from the motor Full Load Ampere rating and Motor Service Factor usually found on the motor nameplate. For motors with service factors less than 1.15, multiply the motor FLA by 0.90 to select appropriate MMP. Example: For motor having FLA of 6.4 A and service factor of 1.0 (6.4 A x 0.90 = 5.76 A), select Model Number: XTPB6P3BC1
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
IEC MANUAL MOTOR PROTECTOR
PUSHBUTTON
Quick Ship
XTPB001BC1
116.00
Availability: 5 weeks

MMP PB frame B class 10, 0.63 to 1 A
Quick Ship
XTPB1P6BC1
116.00
Availability: 5 weeks

MMP PB frame B class 10, 1 to 1.6 A
Quick Ship
XTPB2P5BC1
116.00
Availability: 5 weeks

MMP PB frame B class 10, 1.6 to 2.5 A
Quick Ship
XTPB004BC1
116.00
Availability: 5 weeks

MMP PB frame B class 10, 2.5 to 4 A
Quick Ship
XTPB6P3BC1
116.00
Availability: 5 weeks

MMP PB frame B class 10, 4 to 6.3 A
Quick Ship
XTPB010BC1
116.00
Availability: 5 weeks

MMP PB frame B class 10, 6.3 to 10 A
Quick Ship
XTPB016BC1
126.00
Availability: 5 weeks

MMP PB frame B class 10, 10 to 16 A
ROTARY
Quick Ship
XTPR001BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 0.63 to 1 A
Quick Ship
XTPR1P6BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 1 to 1.6 A
Quick Ship
XTPR2P5BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 1.6 to 2.5 A
Quick Ship
XTPR004BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 2.5 to 4 A
Quick Ship
XTPR6P3BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 4 to 6.3 A
Quick Ship
XTPR010BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 6.3 to 10 A
Quick Ship
XTPR016BC1
118.00
Availability: 5 weeks

MMP rotary frame B class 10, 6.3 to 10 A
Quick Ship
XTPR020BC1
142.00
Availability: 5 weeks

MMP rotary frame B class 10, 16 to 20 A
Quick Ship
XTPR025BC1
142.00
Availability: 5 weeks

MMP rotary frame B class 10, 20 to 25 A
MANUAL MOTOR PROTECTOR ACCESSORIES
Quick Ship
XTPAXCLKA2
16.50
Availability: 5 weeks

3-Ph commoning link A, 2 devices frame B
Quick Ship
XTPAXCLKA3
21.25
Availability: 5 weeks

3-Ph commoning link A, 3 devices frame B
Quick Ship
XTPAXIT-5PK
Consult Sales
Availability:


5 pack of incoming terminals
Quick Ship
XTPAXSA11-5PK
Consult Sales
Availability:


5 pack of side auxiliary contacts 1NO 1NC
Quick Ship
XTPAXSA12-5PK
Consult Sales
Availability:


5 pack of side auxiliary contact 1NO 2NC
Quick Ship
XTPBXENAS41
36.50
Availability: 5 weeks

MMP PB accessory enclosure-N.A. surface IP41
Quick Ship
XTPBXENAS65
52.00
Availability: 5 weeks

MMP PB accessory enclosure-N.A. surface IP65
All amounts shown in EUR
