Electromagnetic Flowmeters

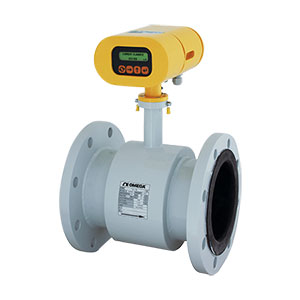

FMG600 Series Magnetic Flow Meter

FMG600 Series Electromagnetic Flowmeters | FMG600 Series Magnetic Flow Meter

FMG600 Series Electromagnetic Flowmeters

3.050,00 FMG606

1 year warranty CE
  • Virtually No Pressure Loss
  • No Moving Parts
  • ANSI 150# Flanges or Tri-Clover Sanitary Mount
  • RS485 Standard
  • Suitable for Pipes Up to 12"
  • High Accuracy
  • 4 to 20 mA and Frequency Outputs Standard
  • NIST 3-Point Calibration Included
Magnetic Flow Meters - View related products

Description

Click on this link if you need more information about Magnetic Flow Meter.

The FMG600 Series electromagnetic flow meters are designed for measurement of conductive liquids. The FMG600 mag meters have no moving parts and a PTFE lining, they can handle applications involving wastewater, pulp, food, and slurries. Standard outputs include analog, frequency, and RS485 communications. Optional sanitary tri-clamp mounting allows use of the FMG600 flowmeters in applications not previously open to magmeters. Local- and remote-display models are available.

NOTE: HEAVY WEIGHT - OVERWEIGHT SHIPPING CHARGES MAY APPLY FOR THIS PRODUCT. IF ORDERED ON-LINE INTERNET SALES WILL CONTACT YOU AFTER ORDER PLACEMENT UNLESS YOU OPT TO CHARGE FREIGHT TO YOUR CARRIER ACCOUNT.

SPECIFICATIONS
Flange Sizes:
    150# ANSI: 19 to 305 mm (¾ to 12")
    Sanitary Tri-Clamp: 13 to 305 mm (½ to 12")
Maximum Pressure: 145 psi
Minimum Conductivity: 20 µS
Electrode Material: Hastelloy C4 (standard), tantalum (TGE optional)
Environmental Temperature: -5 to 55°C (23 to 131°F)
Sensor Lining: PTFE
Electronics Housing: Local or remote (optional)
Liquid Temperature: 0 to 50°C (32 to 122°F) STD, 0 to 150°C (32 to 302°F) with remote electronics
Empty Pipe Alarm: 2" and larger sizes (EPD optional)
Accuracy: ±0.5% from 5 to 100% Qs, ±1% from 1 to 5% Qs
Range: 0.1 to 10 m/s (0.328 to 32.81 fps)
Outputs: Adjustable from 0.1 to 1000 gallons/pulse
Current: 4 to 20 mA with galvanic isolation
Frequency: 0 to 1000 Hz with galvanic isolation
Communications: RS485
Power: 24 Vdc, 115/230 Vac switchable (optional)
Consumption: 15 VA
Protection: IP67 Storage Temperature and Humidity: -10 to 70°C (14 to 158°F) at max; relative humidity 70%
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
FMG601-S Star
3.440,00
Availability: 1 week

15 mm (1/2") SS sanitary mount magmeter with empty pipe detection
FMG602 Star
2.890,00
Availability: 1 week

20 mm (3/4") 150# ANSI flange magmeter with empty pipe detection
FMG603 Star
2.905,00
Availability: 9 weeks

25 mm (1") 150# ANSI flange magmeter with empty pipe detection
FMG604 Star
2.945,00
Availability: 9 weeks

32 mm (1 1/4") 150# ANSI flange magmeter with empty pipe detection
FMG604-R Star
3.430,00
Availability: 9 weeks

32 mm (1 1/4") 150# ANSI flange magmeter with empty pipe detection and remote display
FMG605 Star
2.950,00
Availability: 9 weeks

40 mm (1 1/2") 150# ANSI flange magmeter with empty pipe detection
FMG606 Star
3.050,00
Availability: 9 weeks

50 mm (2") 150# ANSI flange magmeter
FMG607 Star
3.155,00
Availability: 9 weeks

65 mm (2 1/2") 150# ANSI flange magmeter
FMG608 Star
3.280,00
Availability: 8 weeks

80 mm (3") 150# ANSI flange magmeter
FMG609 Star
3.505,00
Availability: 8 weeks

100 mm (4") 150# ANSI flange magmeter
FMG610 Star
4.115,00
Availability: 9 weeks

125 mm (5") 150# ANSI flange magmeter
FMG611 Star
4.685,00
Availability: 9 weeks

150 mm (6") 150# ANSI flange magmeter
FMG612 Star
7.065,00
Availability: 9 weeks

200 mm (8") 150# ANSI flange magmeter
FMG613 Star
8.795,00
Availability: 9 weeks

250 mm (10") 150# ANSI flange magmeter
FMG614 Star
10.770,00
Availability: 9 weeks

300 mm (12") 150# ANSI flange magmeter
All amounts shown in EUR
Note:
Unit comes with complete operator’s manual and 3-point NIST calibration certificate

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Size mm(inch) & Max GPM select from:
01 for 15 (1/2 inch) and 41 LPM
02 for 20 (3/4 inch) and 196 LPM
02 for 20 (3/4 inch) and 117 LPM (-S and -S-R Series Models)
03 for 25 (1 in) and 299 LPM
03 for 25 (1 in) and 230 LPM (-S and -S-R Models)
04 for 32 (1 1/4 inch) and 499 LPM
04 for 32 (1 1/4 inch) and 363 LPM (-S and -S-R Models)
05 for 40 (1 1/2 inch) 749 LPM
05 for 40 (1 1/2 inch) and 571 LPM (-S and -S-R Models)
06 for 50 (2 inch) and 1200 LPM
06 for 50 (2 inch) and 1063 LPM (-S and -S-R Models)
07 for 65 (2 1/2 inch) and 1998 LPM
07 for 65 (2 1/2inch) and 1707 LPM (-S and -S-R Models)
08 for 80 (3 inch) and 50 LPS
09 for 100 (4 inch) and 78 LPS
10 for 125 (5 inch) and 119 LPS
11 for 150 (6 inch) and 180 LPS
12 for 200 (8 inch) and 319 LPS
13 for 250 (10 inch) and 500 LPS
14 for 300 (12 inch) and 700 LPS

(2) Magmeter select from:
Nothing(leave field blank) for #150 ANSI flange magmeter
-S for SS sanitary mount magmeter

(3) Display select from:
Nothing(leave field blank) for Local display
-R for Remote display

(4) Vac Power select from:
Nothing(leave field blank) for 24 Vdc
-VAC for Units with switchable 115/230 Vac power

(5) Electrode select from:
Nothing(leave field blank) for None
-TE for Units with tantalum electrodes
-TGE for Third tantalum grounding electrode
-HGE for Third hastelloy grounding electrode

(6) Calibration select from:
Nothing(leave field blank) for None
-NIST4 for 4-point NIST calibration
-NIST10 for 10-point NIST calibration

(7) Empty Pipe Detection select from:
Nothing(leave field blank) for None
-EPD for Empty pipe detection on units 2 inch and larger

(8) Batching Option select from:
Nothing(leave field blank) for None
-B for Units with a batching option
Note: All combinations may not be valid, check spec sheet for valid part numbers.
