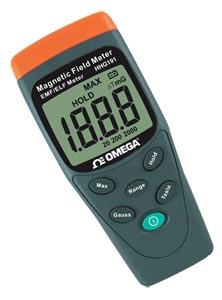

Magnetic Field Gauss Meter

HHG191

Magnetic Field Gauss Meter | HHG191

Magnetic Field Gauss Meter

219,75 HHG191

1 year warranty CE
  • Switch Between the Display of Micro-Tesla and Milli-Gauss
  • Data Hold (HOLD) and Maximum (MAX) Hold Function
  • Range Display (20, 200, 2000)
  • Low Battery Detector
  • Over Load Display "OL"

Description

The HHG191 Gauss Meter represents the latest design in magnetic measuring equipment, allowing measurements up to 2000 mG to 200 micro-tesla with a basic accuracy of 2.5% plus 6-digit.
The HHG191 is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, microwave oven, air conditioner, refrigerator, computer monitor, and video/audio device.
This meter is applied to measuring electromagnetic fields of extremely low frequency (ELF) of 30 to 300 Hz.

SPECIFICATIONS Basic Accuracy: ±(2.5% + 6-digit) at 50 Hz/60 Hz
Frequency Response: 30 to 300 HZ
Sample Rate: 2.5 times per second
Ranges: 200/2000 mG, 20/200 uT
Sensor: Single axis
Resolution: 0.1/1 mG or 0.01/0.1 uT
Display: 3½ digits LCD, maximum reading 1999
Readings: Gauss, tesla
Operating Temperature and Humidity: 5 to 50°C below 80% RH
Power: 9V battery (included)
Battery: 9V NEDA 1604, IEC 6F22 or JIS 006p
Battery Life: Approximately 200 hours
Dimensions: 130 L x 56 W x 38 mm H
Weight: 180 g
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
HHG191
219,75
Availability: 1 week

Magnetic field meter
All amounts shown in EUR
Note: Comes with soft case and one 9V alkaline battery and operator’s manual.
