PFA Glass Insulated High Temperature Heater Hook-up Wire. 250°C

HTTG-1CU Series

PFA Glass Insulated High Temperature Heater Hook-up Wire. 250°C | HTTG-1CU Series

€1,22 HTTG-1CU-320S

PLACE ORDER

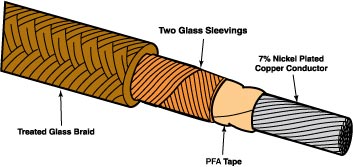

  • 250°C Temperature Rating
  • UL & CSA Certified*
  • Stranded 7% Nickel-Plated Copper Conductor
  • PFA Tape & Glass Insulation with PFA Treated Glass Overbraid
  • Two Glass Sleeves

Description

HTTG high-temperature lead wires are ideal for appliances, consumer and commercial heating and cooling equipment, ovens, kilns, band, strip and cartridge heaters, and similar applications up to 250°C.

HTTG has excellent stripping and cutting capabilities, making it ideal for high-volume manufacturing and assembly. The tough treated glass braid and sleevings permit the product to withstand repeated flexing and severe mechanical abuse. HTTG is moisture resistant, chemically inert and manufactured of heat-stable materials.

Conductor
CSA mm² 		Gauge
(awg) 		Model No. Stranded
(No. x Dia. mm)		 Volts Max, Current
at 40°C A†		 Nom. OD,
(mm ± 0.15mm)
Approx.
Weight
(kg/300m)
0.32 22 HTTG-1CU-322S 7 x 0.25 300 10.8 1.95 3.4
HTTG-1CU-622S 600 2.44 3.9
0.52 20 HTTG-1CU-320S 10 x 0.25 300 15.0 2.08 4.1
HTTG-1CU-620S 600 2.56 4.5
0.82 18 HTTG-1CU-318S 16 x 0.25 300 20.0 2.26 5.0
HTTG-1CU-618S 600 2.74 5.7
1.33 16  HTTG-1CU-316S    26 x 0.25 300 26.0 2.69 7.5
HTTG-1CU-616S 600 3.07 7.7
2.09 14 HTTG-1CU-314S 41 x 0.25 300 39.0 3.07 10.2
HTTG-1CU-614S 600 3.43 10.7
3.33 12 HTTG-1CU-312S 65 x 0.25 300 49.0 3.53 14.5
HTTG-1CU-612S 600 3.89 15.0
5.27 10 HTTG-1CU-310S 105 x 0.25 300 66.0 4.50 21.5
HTTG-1CU-610S 600 4.85 22.0
8.30 8 HTTG-1CU-608S 133 x 0.28 600 91.0 5.77 32.9



†Temperature Correction Factor for Maximum Current Capacity.
For ambient temperatures other than 40°C, multiply the max.
current from the table above by the appropriate factor shown below
Ambient
Temperature
°C		 Multiplier
41 to 50 0.98
51 to 60 0.95
61 to 70 0.93
71 to 80 0.90
81 to 90 0.87
91 to 100 0.85
101 to 120 0.79
121 to 140 0.71
141 to 160 0.65
161 to 180 0.58
181 to 200 0.49
201 to 225 0.35
†The use of the above tables for establishing current carrying capacity is not exact. The values should only be used as a guide and are affected by installation method, environment, mechanical stress etc. Applicable International, National and Local Standards and Regulations should also be considered when designing a system.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
HTTG-1CU-310S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 10 awg/5.27mm², 100 ft (30.4 m) spool
HTTG-1CU-310S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 10 awg/5.27mm², 1000 ft (304.8 m) spool
HTTG-1CU-310S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 10 awg/5.27mm², 25 ft (7.6 m) spool
HTTG-1CU-310S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 10 awg/5.27mm², 250 ft (76.2 m) spool
HTTG-1CU-310S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 10 awg/5.27mm², 50 ft (15.2 m) spool
HTTG-1CU-310S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 10 awg/5.27mm², 500 ft (152.4 m) spool
HTTG-1CU-312S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 12 awg/3.33 mm², 100 ft (30.4 m) spool
HTTG-1CU-312S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 12 awg/3.33 mm², 1000 ft (304.8 m) spool
HTTG-1CU-312S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 12 awg/3.33 mm², 25 ft (7.6 m) spool
HTTG-1CU-312S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 12 awg/3.33 mm², 250 ft (76.2 m) spool
HTTG-1CU-312S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 12 awg/3.33 mm², 50 ft (15.2 m) spool
HTTG-1CU-312S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 12 awg/3.33 mm², 500 ft (152.4 m) spool
HTTG-1CU-314S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 14 awg/2.09 mm², 100 ft (30.4 m) spool
HTTG-1CU-314S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 14 awg/2.09 mm², 1000 ft (304.8 m) spool
HTTG-1CU-314S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 14 awg/2.09 mm², 25 ft (7.6 m) spool
HTTG-1CU-314S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 14 awg/2.09 mm², 250 ft (76.2 m) spool
HTTG-1CU-314S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 14 awg/2.09 mm², 50 ft (15.2 m) spool
HTTG-1CU-314S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 14 awg/2.09 mm², 500 ft (152.4 m) spool
HTTG-1CU-316S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 16 awg/1.33 mm², 100 ft (30.4 m) spool
HTTG-1CU-316S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 16 awg/1.33 mm², 1000 ft (304.8 m) spool
HTTG-1CU-316S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 16 awg/1.33 mm², 25 ft (7.6 m) spool
HTTG-1CU-316S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 16 awg/1.33 mm², 250 ft (76.2 m) spool
HTTG-1CU-316S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 16 awg/1.33 mm², 50 ft (15.2 m) spool
HTTG-1CU-316S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 16 awg/1.33 mm², 500 ft (152.4 m) spool
HTTG-1CU-318S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 18 awg/0.82 mm², 100 ft (30.4 m) spool
HTTG-1CU-318S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 18 awg/0.82 mm², 1000 ft (304.8 m) spool
HTTG-1CU-318S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 18 awg/0.82 mm², 25 ft (7.6 m) spool
HTTG-1CU-318S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 18 awg/0.82 mm², 250 ft (76.2 m) spool
HTTG-1CU-318S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 18 awg/0.82 mm², 50 ft (15.2 m) spool
HTTG-1CU-318S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 18 awg/0.82 mm², 500 ft (152.4 m) spool
HTTG-1CU-320S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 20 awg/0.52 mm², 100 ft (30.4 m) spool
HTTG-1CU-320S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 20 awg/0.52 mm², 1000 ft (304.8 m) spool
HTTG-1CU-320S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 20 awg/0.52 mm², 25 ft (7.6 m) spool
HTTG-1CU-320S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 20 awg/0.52 mm², 250 ft (76.2 m) spool
HTTG-1CU-320S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 20 awg/0.52 mm², 50 ft (15.2 m) spool
HTTG-1CU-320S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 20 awg/0.52 mm², 500 ft (152.4 m) spool
HTTG-1CU-322S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 22 awg/0.32 mm², 100 ft (30.4 m) spool
HTTG-1CU-322S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 22 awg/0.32 mm², 1000 ft (304.8 m) spool
HTTG-1CU-322S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 22 awg/0.32 mm², 25 ft (7.6 m) spool
HTTG-1CU-322S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 22 awg/0.32 mm², 250 ft (76.2 m) spool
HTTG-1CU-322S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 22 awg/0.32 mm², 50 ft (15.2 m) spool
HTTG-1CU-322S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 300 volts, 22 awg/0.32 mm², 500 ft (152.4 m) spool
HTTG-1CU-608S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 8 awg/8.30 mm², 100 ft (30.4 m) spool
HTTG-1CU-608S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 8 awg/8.30 mm², 1000 ft (304.8 m) spool
HTTG-1CU-608S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 8 awg/8.30 mm², 25 ft (7.6 m) spool
HTTG-1CU-608S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 8 awg/8.30 mm², 250 ft (76.2 m) spool
HTTG-1CU-608S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 8 awg/8.30 mm², 50 ft (15.2 m) spool
HTTG-1CU-608S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 8 awg/8.30 mm², 500 ft (152.4 m) spool
HTTG-1CU-610S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 10 awg/5.27mm², 100 ft (30.4 m) spool
HTTG-1CU-610S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 10 awg/5.27mm², 1000 ft (304.8 m) spool
HTTG-1CU-610S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 10 awg/5.27mm², 25 ft (7.6 m) spool
HTTG-1CU-610S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 10 awg/5.27mm², 250 ft (76.2 m) spool
HTTG-1CU-610S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 10 awg/5.27mm², 50 ft (15.2 m) spool
HTTG-1CU-610S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 10 awg/5.27mm², 500 ft (152.4 m) spool
HTTG-1CU-612S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 12 awg/3.33 mm², 100 ft (30.4 m) spool
HTTG-1CU-612S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 12 awg/3.33 mm², 1000 ft (304.8 m) spool
HTTG-1CU-612S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 12 awg/3.33 mm², 25 ft (7.6 m) spool
HTTG-1CU-612S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 12 awg/3.33 mm², 250 ft (76.2 m) spool
HTTG-1CU-612S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 12 awg/3.33 mm², 50 ft (15.2 m) spool
HTTG-1CU-612S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 12 awg/3.33 mm², 500 ft (152.4 m) spool
HTTG-1CU-614S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 14 awg/2.09 mm², 100 ft (30.4 m) spool
HTTG-1CU-614S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 14 awg/2.09 mm², 1000 ft (304.8 m) spool
HTTG-1CU-614S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 14 awg/2.09 mm², 25 ft (7.6 m) spool
HTTG-1CU-614S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 14 awg/2.09 mm², 250 ft (76.2 m) spool
HTTG-1CU-614S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 14 awg/2.09 mm², 50 ft (15.2 m) spool
HTTG-1CU-614S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 14 awg/2.09 mm², 500 ft (152.4 m) spool
HTTG-1CU-616S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 16 awg/1.33 mm², 100 ft (30.4 m) spool
HTTG-1CU-616S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 16 awg/1.33 mm², 1000 ft (304.8 m) spool
HTTG-1CU-616S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 16 awg/1.33 mm², 25 ft (7.6 m) spool
HTTG-1CU-616S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 16 awg/1.33 mm², 250 ft (76.2 m) spool
HTTG-1CU-616S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 16 awg/1.33 mm², 50 ft (15.2 m) spool
HTTG-1CU-616S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 16 awg/1.33 mm², 500 ft (152.4 m) spool
HTTG-1CU-618S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 18 awg/0.82 mm², 100 ft (30.4 m) spool
HTTG-1CU-618S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 18 awg/0.82 mm², 1000 ft (304.8 m) spool
HTTG-1CU-618S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 18 awg/0.82 mm², 25 ft (7.6 m) spool
HTTG-1CU-618S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 18 awg/0.82 mm², 250 ft (76.2 m) spool
HTTG-1CU-618S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 18 awg/0.82 mm², 50 ft (15.2 m) spool
HTTG-1CU-618S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 18 awg/0.82 mm², 500 ft (152.4 m) spool
HTTG-1CU-620S-100
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 20 awg/0.52 mm², 100 ft (30.4 m) spool
HTTG-1CU-620S-1000
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 20 awg/0.52 mm², 1000 ft (304.8 m) spool
HTTG-1CU-620S-25
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 20 awg/0.52 mm², 25 ft (7.6 m) spool
HTTG-1CU-620S-250
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 20 awg/0.52 mm², 250 ft (76.2 m) spool
HTTG-1CU-620S-50
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 20 awg/0.52 mm², 50 ft (15.2 m) spool
HTTG-1CU-620S-500
Consult Sales
Availability:


PFA Glass insulated high temperature heater hook-up wire, 600 volts, 20 awg/0.52 mm², 500 ft (152.4 m) spool
† All amounts shown in EUR
 Note: *HTTG wire carries both UL listing and CSA certification. Standard colour: natural (tan).
We noticed you are from the US. Visit your local site for regional offers and live support.
Stay here.
Go to the the US site >
