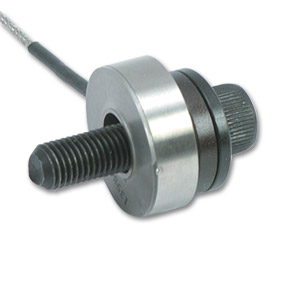

Load Washers, Measure Bolt Compression Forces

LCWD

Load Washers, Measure Bolt Compression Forces | LCWD

Load Washers, Measure Bolt Compression Forces

580,22 LCWD-2K

  • Ranges 0-200 lb up to 0-200,000 lb
  • Compact Design load washers
  • Spherical load Washers Included
  • Load Buttons Included
  • Recommend Use of Spherical Washers When Used with Bolts
  • Recommend Use of Load Button When Used as Compression Load Cell
Load Cells, Force Sensors and Torque Transducers - View related products

Description

Click on this link if you need more information about load cell.

The LCWD load washers are also available in Metric configurations, with ranges from 0-1000 to 0-200,000 N. Please see the LCMWD Series for complete details, or contact our Sales department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 V Max)
Output: 2 mV/V ± 20%
Accuracy: 200-10 K = ±0.5% BFSL > 10 K = ±0.75% BFSL
Zero Balance: ±4.0% FSO
Operating Temp Range: -40 to 127°C (-40 to 260°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: ±0.01% FSO/°F Span: ±0.01% FSO/°F
Safe Overload: 120% of Capacity
Ultimate Overload: 200% of Capacity
Bridge Resistance: 350 Ohms (min) > 50 K (700 Ohms 50 K or less)
Full Scale Deflection: 0.001" typical
Construction: Stainless Steel
Electrical: 5 ft (1.5 m) PTFE insulated, shielded cable
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
LCWD-200
580,22
Availability: 1 week

Load washer, Capacity 0-200 lb (0-890 N)
LCWD-500
580,22
Availability: 5 weeks

Load washer, Capacity 0-500 lb (0-2224 N)
LCWD-1K
580,22
Availability: 1 week

Load washer, Capacity 0-1000 lb (0-4448 N)
LCWD-2K
580,22
Availability: 5 weeks

Load washer, Capacity 0-2000 lb (0-8897 N)
LCWD-5K
580,22
Availability: 5 weeks

Load washer, Capacity 0-5000 lb (0-22,242 N)
LCWD-10K
679,31
Availability: 1 week

Load washer, Capacity 0-10,000 lb (0-44,484 N)
LCWD-20K
757,54
Availability: 1 week

Load washer, Capacity 0-20,000 lb (0-88,968 N)
LCWD-50K
817,52
Availability: 1 week

Load washer, Capacity 0-50,000 lb (0-222,420 N)
LCWD-100K
902,28
Availability: 5 weeks

Load washer, Capacity 0-100,000 lb (0-444,840 N)
LCWD-200K
1.490,23
Availability: 9 weeks

Load washer, Capacity 0-200,000 lb (0-889,680 N)
Accessories
SPW-2
21.93
Availability: 1 week

Spherical washer 8.7mm ID
SPW-3
29.23
Availability: 1 week

Spherical Washer 10mm ID
SPW-5
41.49
Availability: 1 week

Spherical Washers 17mm ID
SPW-7
56.51
Availability: 1 week

Spherical Washers 24mm ID
SPW-10
70.24
Availability: 1 week

Spherical Washers 33mm ID
All amounts shown in EUR
Note: All LCWD load cells come with spherical washers, two load buttons and a NIST calibration certificate.
Ordering Example: (1) LCWD-5K Load washer, 0-5000 lb, speherical washers, two load buttons & NIST calibration certificate., €580.22
