Pneumatic Directional Control Valves, 2-way, 3-way or 4-way air or solenoid operated.

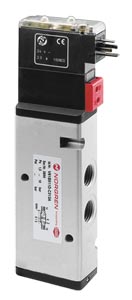

V60 Series In-Line Pneumatic Directional Control Valves

Pneumatic Directional Control Valves air or solenoid operated. | V60 Series In-Line Pneumatic Directional Control Valves

See All Models Below

  • Valve Type: 3-Port/2-Position, 5-Port/2-Position, and Modular Fixed Length Manifold 2 x 3/2
  • Low Power Consumption with 24 Vdc Operation
  • Individual or Manifold System with Easy Assembly
  • High Flow Rate
  • Manual Overrides
  • Operates Under Pressure of up to 8 Bar (116 psi)
  • Requires Air Filtration of 50 Microns or Better
  • Din Connector Type C Cable grip with Indicator Light
  • Through Hole Wall Mounting Manifold
  • Temperature Range of -10 to 50°C (14 to 122°F)

Description

V60 Series pneumatic in-line directional control valves are available for 2-way, 3-way or 4-way operation. These pneumatic valves can be operated by air pilot or solenoid pilot with low power consumption 24VDC solenoids. These direction control valves can be surface mounted or din rail mounted with the optional din rail mounting kit. The V60 Series directional control valves have high flow rates and are available in multiple port sizes. These valves can be used as individual pneumatic valves or can easily be assembled in a 3 valve manifold with one or multiple manifold bases to create a stacking valve bank. All directional control valves in stock have manual overrides, 24VDC solenoids and cable grip connectors with indicator lights, other options can be requested.

The V60 Series directional control valves are spooled valves designed to operate linear motion control components and require air filtration of 50 microns or better. 4-way, 2-position directional control valves are the most common valve used to operate a pneumatic double acting cilinder. For best control of pneumatic components, flow control valves (regulating out) should be installed to regulate the speed of the device.

SPECIFICATIONS
Manual Override: Push type
Voltage: 24 Vdc, power inrush/hold 2W
Flow Rate:
    3/2 and 5/2
- 1/8" port Cv 0.75 ( 750 l/min), 1/4" port Cv 1.3 ( 1300 l/min) and 3/8" port Cv 2.6 ( 2600l/min)
    2x3/2 and 5/3 - 1/8" port Cv 0.50 ( 500 l/min), 1/4" port Cv 0.95 ( 950 l/min) and 3/8" port Cv 1.9 ( 1900l/min)
Response Time Range: Solenoid 23-56 ms, spring return 26-56 ms.

To learn more about pneumatic valves, view the Technical Reference Article Technical Principles of Valves

3/2 valve is also known as a 2-Way valve (drawing 1), with 3 air ports and on-off output air. Port #1 is the supply air, port #2 is the control output air and port #3 is the exhaust air.

2 x 3/2 valve (drawing 2) is two independent 2-Way valves that share the same valve body. These valves can be manifold mounted with 2 or 3 valves per manifold. Port #1 is a shared supply air, port #2 & 4 are for the control output air and port #3 & 5 are for the exhaust air.

5/2 valve (drawing 3) is also known as a 4-Way valve with 5 air ports and 2 output air ports. This valve is typically used to extend and retract a cylinder. These valves can be manifold mounted with 2 or 3 valves per manifold. Port #1 is the supply air, port #2 & 4 are for the control output air and port #3 & 5 are for the exhaust air.




DIMENSIONS (INCHES)
DRAWING NO.TYPEABCDEFGHJKLMNOPQRSTU
1 V60 1.38 0.67 0.13 0.26 0.67 1/8 0.87 0.64 1.10 4.49 0.98 0.98 0.18 0.71 1.02 1.38
1 V61 1.81 0.79 0.13 0.26 0.79 1/4 0.98 0.83 1.10 5.22 1.26 1.22 0.18 0.94 1.02 1.57
1 V62 2.13 0.83 0.18 0.31 1.10 3/8 1.34 0.96 1.73 5.71 0.47 1.42 0.18 1.02 1.42 2.17
2 V60 1.97 0.64 0.13 0.26 0.67 1/8 0.87 1.28 1.10 6.89 0.98 0.18 1.32 1.02 1.38
2 V61 2.60 0.83 0.13 0.26 0.79 1/4 0.98 1.65 1.10 7.83 1.26 0.18 1.73 1.02 1.57
2 V62 3.07 0.96 0.18 0.31 1.10 3/8 1.34 1.92 1.73 8.58 0.47 0.18 1.02 1.42 2.17
3 V60 1.97 0.67 0.64 0.13 0.26 0.67 1/8 0.87 1.28 1.10 5.08 0.98 0.98 0.18 1.32 1.02 1.38
3 V61 2.60 0.79 0.83 0.13 0.26 0.79 1/4 0.98 1.65 1.10 6.00 1.26 1.22 0.18 1.73 1.02 1.57
3 V62 3.07 0.83 0.96 0.18 0.31 1.10 3/8 1.34 1.92 1.73 6.69 0.47 2.36 0.18 1.02 1.42 2.17
4 V60 1.97 0.64 0.13 0.26 0.67 1/8 0.87 1.28 1.10 7.44 0.98 3.33 0.18 1.32 1.02 1.38
4 V61 2.60 0.83 0.13 0.26 0.79 1/4 0.98 1.65 1.10 8.54 1.26 0.18 1.73 1.02 1.57
4 V62 3.07 0.96 0.18 0.31 1.10 3/8 1.34 1.92 1.73 9.49 0.47 5.20 0.18 1.02 1.42 2.17
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
3/2 AIR PILOT VALVES
OM-AIR-V60P4D7A-XP0900
Consult Sales
Availability:


3/2 valve air/spring 1/8" port
OM-AIR-V61R4D7A-XP0900
66.89
Availability: 1 week

3/2 valve air/spring 1/4" port
OM-AIR-V62S4D7A-XP0900
99.50
Availability: 1 week

3/2 valve air/spring 3/8" port
2 X 3/2 AIR PILOT VALVES
OM-AIR-V60PADDA-XP0200
Consult Sales
Availability:


2 x 3/2 valve air/air 1/8" port
OM-AIR-V61RADDA-XP0200
89.55
Availability: 1 week

2 x 3/2 valve air/air 1/4" port
OM-AIR-V62SADDA-XP0200
Consult Sales
Availability:


2 x 3/2 valve air/air 3/8" port
5/2 AIR PILOT VALVES
OM-AIR-V60P5D7A-XP0900
Consult Sales
Availability:


5/2 valve air/spring 1/8" port
OM-AIR-V61R5D7A-XP0900
66.89
Availability: 1 week

5/2 valve air/spring 1/4" port
OM-AIR-V62S5D7A-XP0900
Consult Sales
Availability:


5/2 valve air/spring 3/8" port
5/3 AIR PILOT VALVES
OM-AIR-V60P6DDA-XP0200
Consult Sales
Availability:


5/3 valve air/air 1/8" port APB
OM-AIR-V61R6DDA-XP0200
Consult Sales
Availability:


5/3 valve air/air 1/4" port APB
OM-AIR-V62S6DDA-XP0200
Consult Sales
Availability:


5/3 valve air/air 3/8" port APB
OM-AIR-V60A6DDA-X50200
Consult Sales
Availability:


5/3 valve air/air 1/8G port
OM-AIR-V61B6DDA-X50200
Consult Sales
Availability:


5/3 valve air/air 1/4G port
OM-AIR-V62C6DDA-X50200
Consult Sales
Availability:


5/3 valve air/air 3/8G port
3/2 SOLENOID VALVES
OM-AIR-V60P417A-A313JH
Consult Sales
Availability:


3/2 valve sol/spring NC 24V 1/8" port
OM-AIR-V61R417A-A313JH
88.45
Availability: 1 week

3/2 valve sol/spring NC 24V 1/4" port
OM-AIR-V62S417A-A313JH
110.56
Availability: 1 week

3/2 valve sol/spring NC 24V 3/8" port
2 X 3/2 SOLENOID VALVES
OM-AIR-V60PA11A-A313JH
135.68
Availability: 1 week

2x3/2 valve sol/sol NC/NC 24V 1/8" port
OM-AIR-V61RA11A-A313JH
147.74
Availability: 1 week

2x3/2 valve Sol/Sol NC/NC 24V 1/4" port
OM-AIR-V62SA11A-A313JH
196.99
Availability: 1 week

2x3/2 Valve sol/sol NC/NC 24V 3/8" port
5/2 SOLENOID VALVES
OM-AIR-V60P517A-A313JH
Consult Sales
Availability:


5/2 valve sol/spring NC 24 V 1/8" port
OM-AIR-V61R517A-A313JH
Consult Sales
Availability:


5/2 valve sol/spring NC 24V 1/4" port
OM-AIR-V62S517A-A313JH
110.56
Availability: 1 week

5/2 valve sol/spring NC 24V 3/8" port
5/3 SOLENOID VALVES
OM-AIR-V60P611A-A313JH
Consult Sales
Availability:


5/3 valve sol/sol 24V 1/8" port APB
OM-AIR-V61R611A-A313JH
147.74
Availability: 1 week

5/3 valve sol/sol 24V 1/4" port APB
OM-AIR-V62S611A-A313JH
Consult Sales
Availability:


5/3 valve sol/sol 24V 3/8" port APB
Accessories
OM-AIR-0101796
Consult Sales
Availability:


Din rail mounting kit
B72G-2AK-AE3-RMG
€118.41
Availability: 1 week

Air pressure regulator and filter 1/4"
B73G-3AK-AD3-RMG
Consult Sales
Availability:


Air pressure regulator and filter 3/8"
Manifold Plates can be used with all 5-port valves ( 5/2, 5/3 and 2 X 3/2 )
OM-AIR-2221032
Consult Sales
Availability:


Manifold plate V60, 2 station ¼" NPT threads
OM-AIR-2221132
Consult Sales
Availability:


Manifold plate V61, 2 station 3/8" NPT threads
OM-AIR-2221103
Consult Sales
Availability:


Manifold plate V61, 3 station 3/8 ISO G threads
All amounts shown in EUR
Note: * Valves require a regulated and filtered air supply to operate properly.
Valve manifolds can be stacked to create larger valve banks.
