19 inch Rack Panels with Miniature Thermocouple Sockets

19MJP Series

19 inch Rack Panels with Miniature Thermocouple Sockets | 19MJP Series

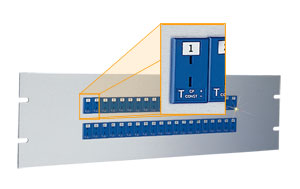

19 inch Rack Panels with Miniature Thermocouple Sockets

€96,44 19MJP1-10-K

PLACE ORDER
  • Individually Numbered Sockets
  • Free Dust Caps Included with Each Panel
  • Rugged, 3 mm Thick Panels
  • Optional Cut-Outs for Switches and Indicators
  • Number Labels are included in Packet
Thermocouple Connectors and Panel Systems - View related products

Description

19" Panels with Thermocouple Sockets      19" Panels with Thermocouple Sockets and Switch Cutout
No. of Rows Panel Height Max. No.
of Sockets
1 90 mm 30
2 90 mm 30
3 133 mm 90
4 178 mm 120

No. of Rows Panel Height Switch Size Max. No.
of Sockets
OSW SW14
1 133 mm 76 mm 1/4 DIN 20
2 133 mm 76 mm 1/4 DIN 40
2 178 mm 127 mm 1/4 DIN 40
3 178 mm 127 mm 1/4 DIN 60
4 178 mm 127 mm 1/4 DIN 80


19" Panels with Thermocouple Sockets, Switch and Meter Cutouts
No. of Rows Panel Height Switch Size Meter
Cut-Out 		Max. No.
of Sockets
OSW SW14
1 133 mm 76 mm 1/4 DIN 1/8 DIN 10
2 133 mm 76 mm 1/4 DIN 1/8 DIN 20
3 178 mm 127 mm 1/4 DIN 1/8 DIN 30
4 178 mm 127 mm 1/4 DIN 1/8 DIN 40

Switches and Meters
Sold Separately
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Below are Common Examples of Part Numbers. Please See the Part Number Builder Underneath this Table to Specify Your Exact Configuration.
Click to expand/minimize a list of what others bought with the19MJP2-32-T
19MJP2-32-T
Consult Sales
Availability:


19" Jack Panel with 32 Type T Jacks
Click to expand/minimize a list of what others bought with the19MJP2-40-T
19MJP2-40-T
€421.35
Availability: 1 week

19" Jack Panel with 40 Type T Jacks
Click to expand/minimize a list of what others bought with the19MJP2-32-K
19MJP2-32-K
€581.40
Availability: 1 week

19" Jack Panel with 32 Type K Jacks
Click to expand/minimize a list of what others bought with the19MJP2-40-K
19MJP2-40-K
Consult Sales
Availability:


19" Jack Panel with 40 Type K Jacks
Click to expand/minimize a list of what others bought with the19MJP1-20-T
19MJP1-20-T
Consult Sales
Availability:


19" Jack Panel with 20 Type T Jacks
Click to expand/minimize a list of what others bought with the19MJP1-30-T
19MJP1-30-T
Consult Sales
Availability:


19" Jack Panel with 30 Type T Jacks
Click to expand/minimize a list of what others bought with the19MJP1-20-J
19MJP1-20-J
Consult Sales
Availability:


19" Jack Panel with 20 Type J Jacks
Click to expand/minimize a list of what others bought with the19MJP1-18-T
19MJP1-18-T
Consult Sales
Availability:


19" Jack Panel with 18 Type T Jacks

19MJP2-40-J
Consult Sales
Availability:


19" Jack Panel with 40 Type J Jacks

19MJP1-12-K
Consult Sales
Availability:


19" Jack Panel with 12 Type K Jacks

19MJP1-20-K
€142.44
Availability: 6 weeks

19" Jack Panel with 20 Type K Jacks

19MJP1-12-T
€105.45
Availability: 6 weeks

19" Jack Panel with 12 Type T Jacks

19MJP1-30-K
Consult Sales
Availability:


19" Jack Panel with 30 Type K Jacks

19MJP1-10-K
Consult Sales
Availability:


19" Jack Panel with 10 Type K Jacks

19MJP1-18-K
Consult Sales
Availability:


19" Jack Panel with 18 Type K Jacks
Accessories

MPJ-CAP-6
€5.74
Availability: 1 week

Dust Caps (package of 6)

MPJ-CAP-12
€9.08
Availability: In Stock

Dust Caps (package of 12)

MPJ-CAP-18
€12.57
Availability: 1 week

Dust Caps (package of 18)

MPJ-CAP-24
€16.76
Availability: 1 week

Dust Caps (package of 24)

MPJ-CAP-50
€26.92
Availability: 1 week

Dust Caps (package of 50)
† All amounts shown in EUR
 Note: The switch and meter cutouts are not available in the panels containing 12,18 or 32 connectors.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Rows of Thermocouple Sockets select from:
1 for 1 Row
2 for 2 Rows
3 for 3 Rows
4 for 4 Rows

(2) Total Number of Sockets select from:
10 for 10 Sockets
12 for 12 Sockets
18 for 18 Sockets
20 for 20 Sockets
30 for 30 Sockets
32 for 32 Sockets
40 for 40 Sockets

(3) Socket Thermocouple Type select from:
J for J Type
KI for K Type
TI for T Type
NI for N Type
E for E Type
R/SI for R/S Type
G for G Type
C for C Type
D for D Type
U for U Type

(4) Optional Panel Switch Cutout (not available in the panels containing 12 18 or 32 sockets) select from:
Nothing(leave field blank) for No Panel Switch Cutout
-OSW for Panel Switch Cutout
-SW14 for Panel Switch Cut-Out (1/4 DIN)

(5) Optional Meter Cutout (not available in the panels containing 12 18 or 32 sockets) select from:
Nothing(leave field blank) for No Meter Cutout
-MTR for Meter Cutout 1/8 DIN
Note: All combinations may not be valid, check spec sheet for valid part numbers.
