Ceramic Wire Wound Platinum RTD Elements - Class A

1PT100KN and 2PT100KN

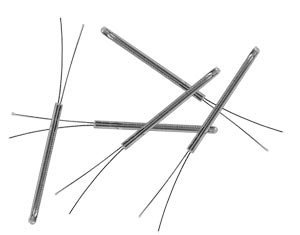

Ceramic Wire Wound Platinum RTD Elements | 1PT100KN and 2PT100KN

Ceramic Wire Wound Platinum RTD Elements

13,00 1PT100KN1515CLA

  • High Temperature Stability
  • High Temperature Shock Resistance.
  • Class A (IEC-751), Alpha = 0.00385
RTD (PT100)  Probes, Elements and Assemblies - View related products

Description

Find how a Pt100 works on this link.

The “KN” series RTD‘s are suitable for applications requiring extremely high temperature stability and high temperature shock resistance. Deviation from the IEC751 characteristic curve is minimal over the entire temperature range. The small diameter tolerances of the sensor body allow easy installation in protective tubes. Applications are found in chemical and power generation plants and analytical equipment.

For complete product specifications see the Related Links section at the bottom of this page.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
1PT100KN1515CLA
13,00
Availability: 4 weeks

Nominal Resistance - 1x100 ohm, Size - 1.5 x 15mm
Quick Ship
1PT100KN2515CLA
22,00
Availability: 1 week

Nominal Resistance - 1x100 ohm, Size - 1.5 x 25mm
Quick Ship
1PT100KN3045CLA
22,00
Availability: 4 weeks

Nominal Resistance - 1x100 ohm, Size - 4.5 x 30mm
Quick Ship
1PT100KN3026CLA
29,00
Availability: 4 weeks

Nominal Resistance - 1x100 ohm, Size - 2.6 x 30mm
Quick Ship
2PT100KN3045CLA
57,00
Availability: 7 weeks

Nominal Resistance - 2x100 ohm, Size - 4.5 x 30mm
Quick Ship
2PT100KN3026CLA
40,00
Availability: 11 weeks

Nominal Resistance - 2x100 ohm, Size -2.6 x 30mm
All amounts shown in EUR
Note: All RTD elements come with nominal lead length of about 7mm or more.
Ordering Example: (1) 1PT100KN1515CLA RTD Element, €13,00  plus (1) 1PT100KN1515CLA RTD Element, €13,00, €13,00 + 13,00 = €26,00
