Magnetic Mount Thermocouple Probes

88401 Series, 88402 Series

Magnetic Mount Thermocouple Probes | 88401 Series, 88402 Series

Magnetic Mount Thermocouple Probes

231,65 88401K

  • Magnetic Mount Thermocouple Probes for Contact Temperature Measurements on Pipes, Ducts, etc.

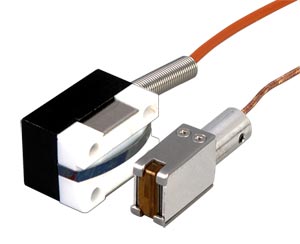

  • Model 88401 (left photo) Measures to 250°C
  • Model 88402 (right photo) Measures to 400°C
  • Relatively Small Size Allows Use in Tight Spaces
  • 88401 Dimensions: 19 mm x 27 mm x 19 mm
  • 88402 Dimensions: 9.5 mm x 16 mm x 38 mm
  • Reuse Over and Over Again

Description

Magnetic Mount Thermocouple Probes, suitable for long term contact pressure. Requires 10 minutes to reach full surface temperature. The 88401 is rated to max. surface temperature of 250°C and is supplied with a PFA lead wire. The 88402 is rated to max. service temperature of 400°C and has a glass braid insulated lead wire. Both styles are fitted with a mini thermocouple plug. Matching sockets and adaptors to standard, round-pin connectors are available to order separately in the table below.
Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Click to expand/minimize a list of what others bought with the88401K
88401K
231,65
Availability: In Stock

Magnetic K thermocouple, max temp. 250°C

88401E
231,65
Availability: 1 week

Magnetic E thermocouple, max temp. 250°C
Click to expand/minimize a list of what others bought with the88402K
88402K
Consult Sales
Availability:


Magnetic K thermocouple, max temp. 400°C

88402E
258,51
Availability: 5 weeks

Magnetic E thermocouple, max temp. 400°C
Accessories

88401K-RE
Consult Sales
Availability:


Replaceable K element for Model 88401K

88401E-RE
€44.52
Availability: 5 weeks

Replaceable E Element for Model 88401E

TAS-K-3
11.84
Availability: 1 week

Transition adaptor from flat pin male to round pin male, type K

SMPW-K-F
4.19
Availability: In Stock

Mini thermocouple socket, type K
All amounts shown in EUR
Note: A transition adaptor from flat pin male to round pin male is available as an accessory if required, TAS-*-3, where * is the thermocouple type.
88401 probes come with a replaceable element. Due to the design of the 88402, the element is not replaceable.
