Circular Chart Recorders

CT6100 Series

See All Models Below

PLACE ORDER

Accepts Thermocouple, RTD, Vdc, and mA DC Inputs
High Accuracy and Stability
User Configurable via Front-Panel Keypad
Easy-to-Use Menu-Driven Interface for Rapid Configuration and Calibration
Available in 1-, 2-, or 3-Pen Versions
Large-Character Alphanumeric LCD with Backlight
Simultaneous Digital Display of Process Variable for Each Channel
Programmable Locks for Security

Recorders - View related products

Description

More information about how a Chart Recorder works in this link.

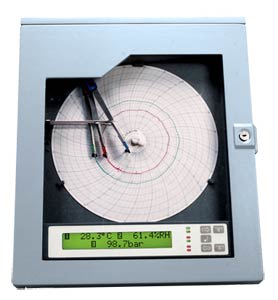

The CT6100 Series microprocessor based circular chart recorders are available in 1-, 2-, or 3-channel variants. They combine the simplicity and clarity of pen drawing with the versatility of microprocessor control. Each channel is compatible with all industry-standard sensors and signals, including thermocouple types J, K, T, E, N, R, S, and B; Pt100 platinum RTDs; and 4 to 20 mA current loops.
Low and high measurement ranges are provided for each input type; separate range cards are not required. Multi-input versions feature optoelectronic isolation of the input stages to eliminate troublesome installation earth loops. Multislope integrating 16-bit A/D converters ensure precise measurement by sampling the input every 0.5 seconds.
Thermocouple and RTD characteristics are fully linearised. The recorders use automatic cold-junction compensation for thermocouple measurement.
All CT6100 Series models feature alarm relays. Single-pen recorders are equipped with 3 fail-safe single pole changeover relays; 6 relays are standard on the 2- and 3-pen versions. Colour-coded LEDs indicate the status of each relay. All relay functions are user selectable: setpoint values and hysteresis levels are entered directly via the keypad, while relay action and channel assignment are selected from user-friendly menus. Circuit precision is matched by the backlash-free pen-drive mechanism, which has a positioning resolution of better than 0.1%. An integral feedback potentiometer enables closed-loop monitoring of each pen position.
Each recorder uses a low-maintenance stepper motor. The rotation speed of the 244 mm diameter chart is microprocessor controlled and user programmable.
All CT6100 recorders are housed in a strong moulded case that can be panel or surface mounted. A gasket-lockable door protects internal components from harsh industrial environments and offers protection rated to IP55 (NEMA 12). A tough acrylic window lets the user view the chart trace, digital channel readings, and alarm status with the recorder's door closed.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

CT6101

Consult Sales

Availability:

This product is no longer available. For a possible replacement, please see CT7000-Series
1-pen recorder. 3 relays and transmitter PS

CT6102

Consult Sales

Availability:

2-pen recorder. 6 relays and transmitter PS

CT6103

€5,779.00

Availability: 9 weeks

3-pen recorder. 6 relays and transmitter PS

Accessories

CT6100-RED

€113.39

Availability: 1 week

Red pens, pack of 3

CT6100-GREEN

€113.44

Availability: 1 week

Green pens, pack of 3

CT6100-BLUE

€109.67

Availability: 1 week

Blue pens, pack of 3

CT6100-0-100/24H

€85.36

Availability: 1 week

100 chart papers, 24 hours

CT6100-0-100/31D

€92.08

Availability: 1 week

100 chart papers, 31 days

† All amounts shown in EUR
Ordering Example: (1) CT6103 1-pen recorder. 3 relays and transmitter PS, €5,779.00
