Twisted Shielded UL Listed Extension Grade Thermocouple Wire with IEC color codes

EXPP-K-TWSH-UL-IEC


Twisted Shielded UL Listed Extension Grade Thermocouple Wire with IEC color codes | EXPP-K-TWSH-UL-IEC

74,96 EXPP-K-20-TWSH-UL-25

  • UL Listed Type PLTC, 300 V; Listed Under UL Subject 13, File E153789
  • Extruded PVC Single Conductor and Duplex Insulation
  • Aluminized Polyester Shield with Drain Wire Reduces Electrical Noise
  • IEC Colour Coded
  • Resistant to Moisture, Abrasion, Chemicals, and UV Light
Wire: Thermocouple, RTD, Thermistor and Hook-Up - View related products

Description

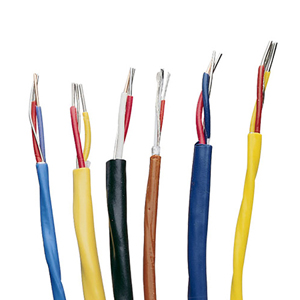

OMEGA™ twisted/shielded thermocouple wire is ideal for systems sensitive to induced voltage and electrical noise. The wire conductors are insulated with color-coded PVC, then twisted with a tin/copper drain wire. Next, an aluminized polyester tape is wrapped around the wires, followed by a final layer of PVC coating. The wire is UL listed for Power Limited Tray Cable (PLTC) applications.


Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for other available models.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
IEC Type J, PVC Insulated Thermocouple Extension Cable
EXPP-JI-16S-TWSH-UL-30M
324.19
Availability: 19 weeks

30m IEC Type J, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-JI-16S-TWSH-UL-150M
929.60
Availability: 19 weeks

150m IEC Type J, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-JI-16S-TWSH-UL-300M
1,854.91
Availability: 19 weeks

300m IEC Type J, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-JI-20S-TWSH-UL-30M
134.26
Availability: 13 weeks

30m IEC Type J, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
EXPP-JI-20S-TWSH-UL-150M
403.47
Availability: 13 weeks

150m IEC Type J, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
EXPP-JI-20S-TWSH-UL-300M
794.54
Availability: 13 weeks

300m IEC Type J, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
IEC Type K, PVC Insulated Thermocouple Extension Cable
EXPP-KI-16S-TWSH-UL-30M
540.30
Availability: 19 weeks

30m IEC Type K, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-KI-16S-TWSH-UL-150M
1,527.24
Availability: 19 weeks

150m IEC Type K, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-KI-16S-TWSH-UL-300M
3,029.21
Availability: 19 weeks

300m IEC Type K, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-KI-20S-TWSH-UL-30M
230.12
Availability: 7 weeks

30m IEC Type K, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
EXPP-KI-20S-TWSH-UL-150M
651.98
Availability: 7 weeks

150m IEC Type K, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
EXPP-KI-20S-TWSH-UL-300M
1,350.23
Availability: 11 weeks

300m IEC Type K, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
IEC Type T, PVC Insulated Thermocouple Extension Cable
EXPP-TI-16S-TWSH-UL-30M
330.56
Availability: 19 weeks

30m IEC Type T, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-TI-16S-TWSH-UL-150M
929.60
Availability: 19 weeks

150m IEC Type T, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-TI-16S-TWSH-UL-300M
1,854.91
Availability: 19 weeks

300m IEC Type T, Extension Grade Thermcouple Wire, 16 AWG (1.5mm2) stranded, Twisted Shielded, UL Listed
EXPP-TI-20S-TWSH-UL-30M
139.08
Availability: 19 weeks

30m IEC Type T, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
EXPP-TI-20S-TWSH-UL-150M
403.47
Availability: 19 weeks

150m IEC Type T, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
EXPP-TI-20S-TWSH-UL-300M
767.04
Availability: 19 weeks

300m IEC Type T, Extension Grade Thermcouple Wire, 20 AWG (0.52mm2) stranded, Twisted Shielded, UL Listed
All amounts shown in EUR
Note: Ordering Example: (1) EXPP-KI-16S-TWSH-UL-30M 30 meter of extension grade thermocouple wire, 16 gage, type K with IEC code, twisted shielded, UL listed, PVC jacket

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Thermocouple Calibration select from:
JI for IEC Type J
KI for IEC Type K
TI for IEC Type T
EI for IEC Type E

(2) Gage Type select from:
16 for 16 gage
16S for 16 stranded gage
20 for 20 gage
20S for 20 stranded gage

(3) Wire Length select from:
7.5M for 7.5m
15M for 15m
30M for 30m
60M for 60m
150M for 150m
300M for 300m
Note: All combinations may not be valid, check spec sheet for valid part numbers.
